modbar pour over system Manuel De Fonctionnement page 26

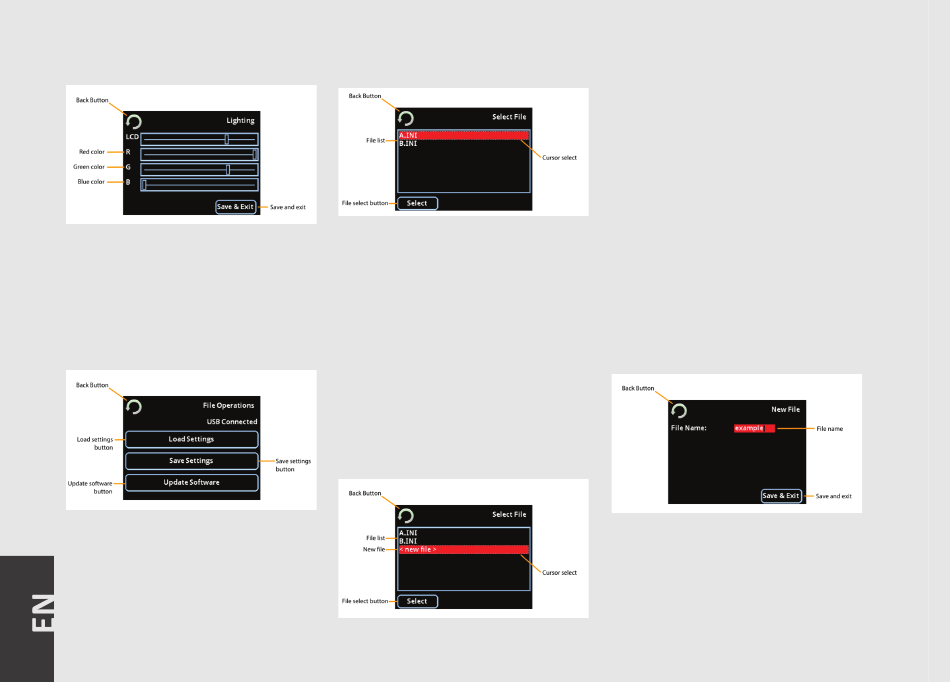

8) Advanced preferences screen:
LCD backlight: Use this slider to control the
brightness of the touch screen display.
RGB: Using the RGB color sliders you can
create any color of the rainbow for the
module's
internal LED lighting.
9) File operations screen:
Load settings: This button will navigate to the
load settings screen.
Save settings: This button will navigate to the
save settings screen.
Update software: This button will navigate to
the update software screen.
26
10) Load settings screen:
File list: This area displays all of the settings
files that are currently saved to the USB
drive.
Cursor select: The dotted outline cursor
select indicates which file is selected on
screen. You may use the rotary encoder or
up/down function of the joystick to navigate
the file list.
File select button: Pressing select will
load the currently selected settings file.
This includes profiles and all other user
accessible settings and preferences. Note:
existing profiles will be overwritten.
11) Save settings screen:
File list: This area displays all of the settings
files that are currently saved to the USB
drive.
New file: This option allows the creation of
a new settings file. To create a new settings
file, highlight the < new file > option, and
select it by either pressing the center
encoder button or the file select button on
the touch screen.
Cursor select: The dotted outline cursor
select indicates which file is selected on
screen. You may use the rotary encoder or
up/down function of the joystick to navigate
the file list.
File select button: Pressing select will save
the current settings to the selected file.
This includes profiles and all other user
accessible settings and preferences.
12) New file screen:
File name: This is a descriptive name for the
settings file. Touch the name to highlight
the field, use the encoder wheel and push-
button to rename the file if desired.
