Electrical connections

SPA

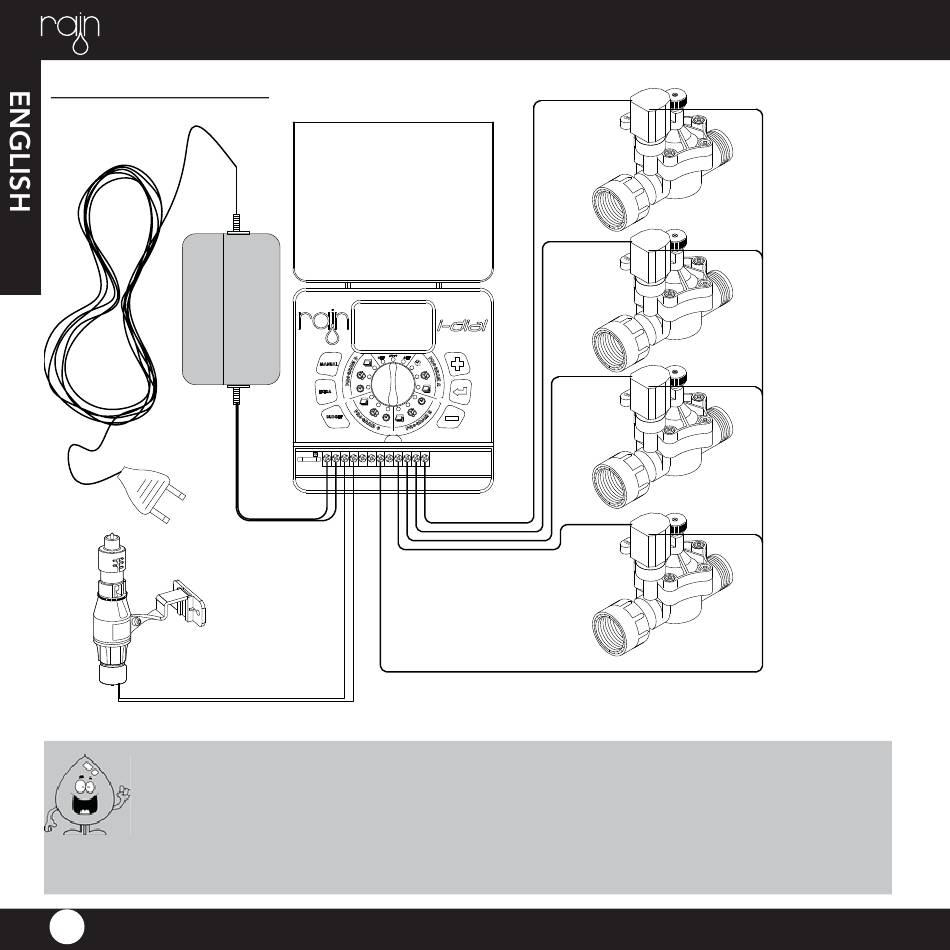

Each 24 VAC electric valve is equipped with two black cables. The fi rst one identifi es the number
of the area and is to be connected to of the outputs numbered in the terminal compartment. The
second one is the common cable that will be connected to the Exit C in the terminal compartment
along with other common cables of all electric valves.
The cables of the 24Vac electric valves have no polarity.
Connect the rain sensor wires cables to the output marked SENSOR in the terminal compartment.
If using the INDOOR model, connect the transformer's cables to a 24-vac input.
