7. Wiring the System

1. Connect the antenna and fix it on the wall inside the house.
2. Connect the wires.
antenna
a
power in DC +12 V (red)
b
power in DC -12 V (black)
c
lock relay COM (yellow)
d
lock relay NO (purple)
e
doorbell relay COM (grey)
f
V. 03 – 09/11/2015
SCAMSET8

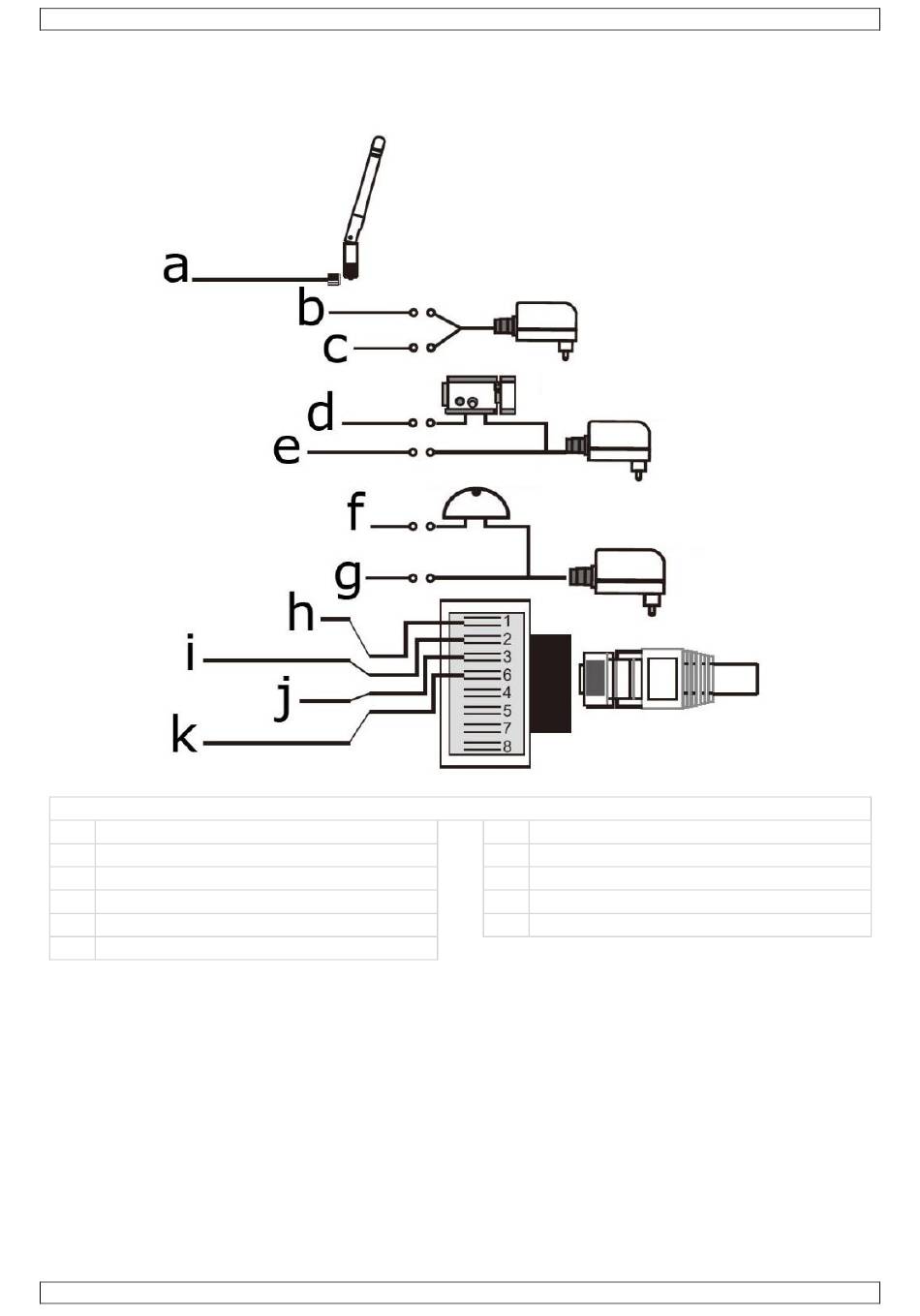

connection scheme description
g
h
i
j
k
6
doorbell relay NO (grey)
Net RJ45 (orange + white)
Net RJ45 (orange)
Net RJ45 (green + white)
Net RJ45 (green)
