2 INSTALLATION
manifold with PVC cement. Be very careful to observe and follow the
correct water flow direction (as indicated by the arrow on the injector
manifold).
2C-2. Water Line Check Valve
If the pool equipment is mounted above the water line, a check valve must
be installed between the pump outlet and the injector manifold. This will
prevent the pump from draining and losing its prime (when not in use).
CMP HydroSeal™ check valve recommended.
2C-3. Pressure Test
If a pressure test is required, it should be performed prior to connecting the
ozone gas line. Install the 3/4" pipe cap provided onto the injector for the
Add an arrow that points to the join of the
green ozone tube to the assembly, and
pressure test.
entitle it "Flow Meter Assembly:
Flow Meter
Assembly
Injector
Assembly

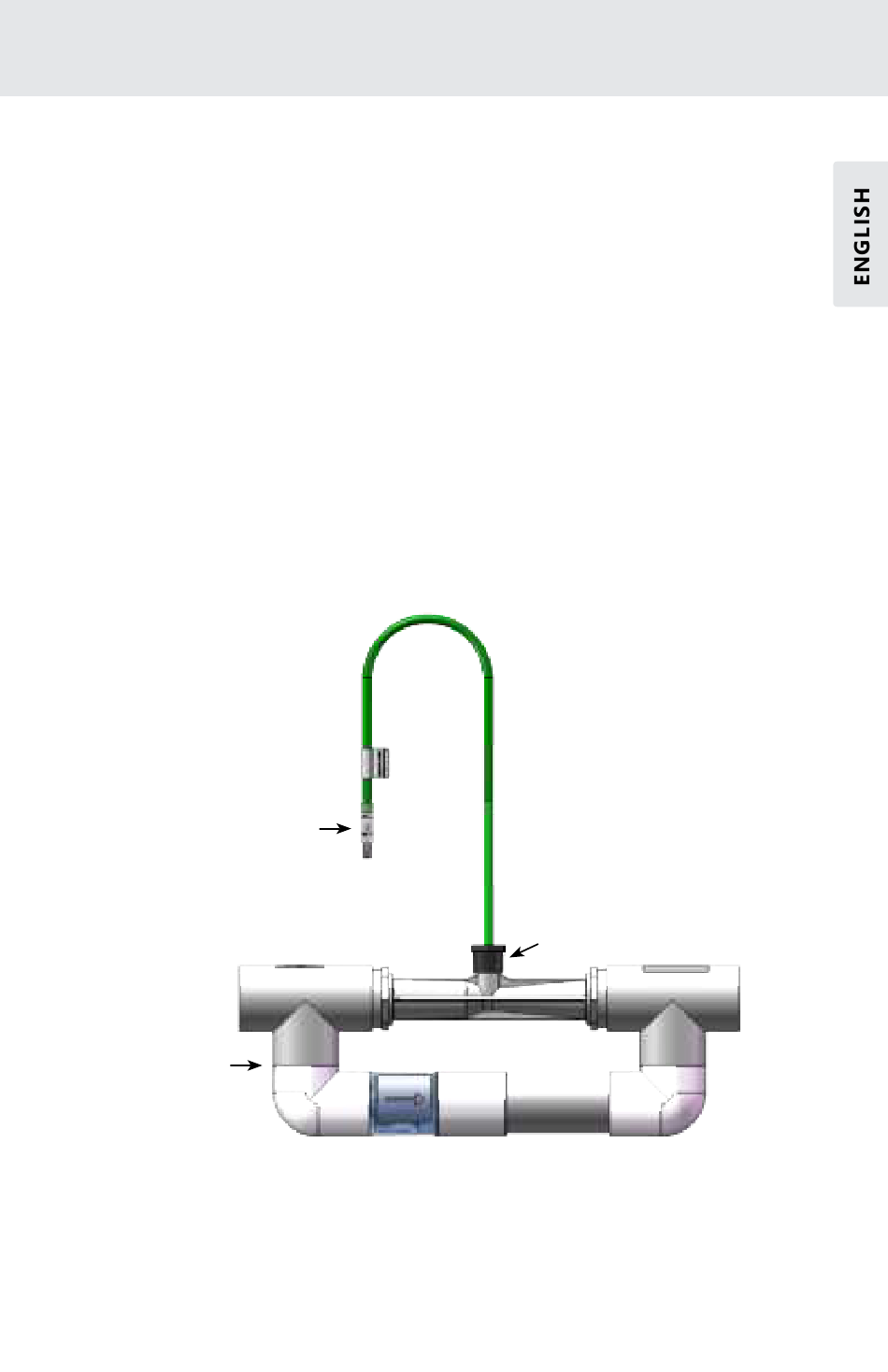

Figure 3a: Flow Meter Assembly
4
Tube
Adaptor
