2 INSTALLATION
5.77"
3 x .25"
Ozone 100
2B. Wall Mounting
1. Open the enclosure door and locate the three mounting holes on the
back wall of the enclosure. There will be two holes located near the top
on the left and right and one located in the center near the bottom.
Refer to Figure 1 for clarification.
2. Install screws (or other hardware appropriate for the mounting surface)
through the two mounting holes near the top of the enclosure. Install
the last screw through the mounting hole near the bottom of the
enclosure. Mounting hardware must be driven until the head fully
contacts the enclosure wall. Mounting hardware head must not be
smaller than 0.25 inches (6.3 mm) in diameter and the threads of the
hardware must be smaller than 0.25 inches (6.3 mm) in diameter.
2C. Plumbing
2.68"
19.60"

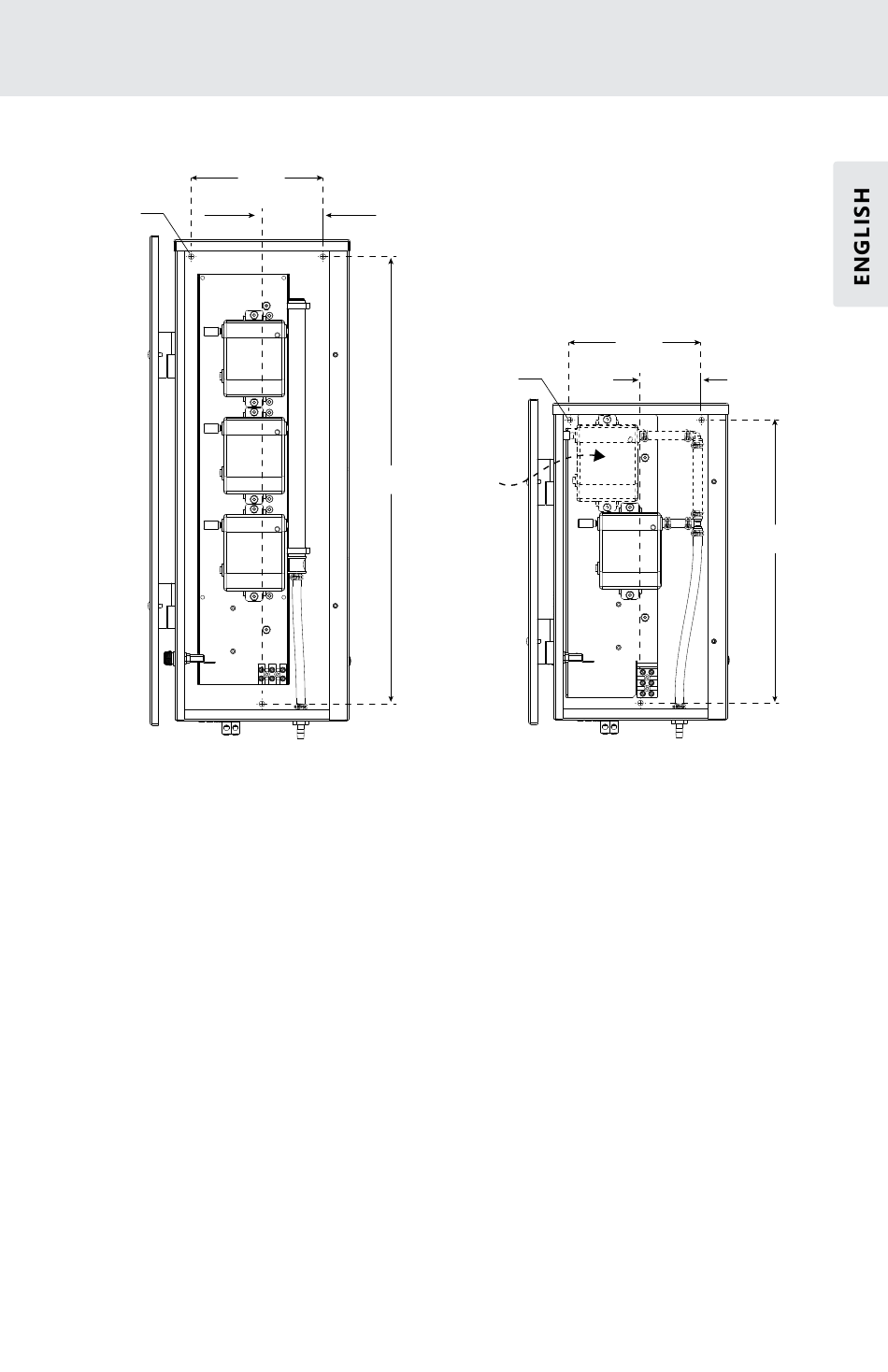

Figure 1: Mounting Hole Dimensions
3 x .25"
Second
Cell Ozone
50 Only
Ozone 25 & 50
2
5.77"
2.68"
12.40"
