Install high pressure hose to hose
drum

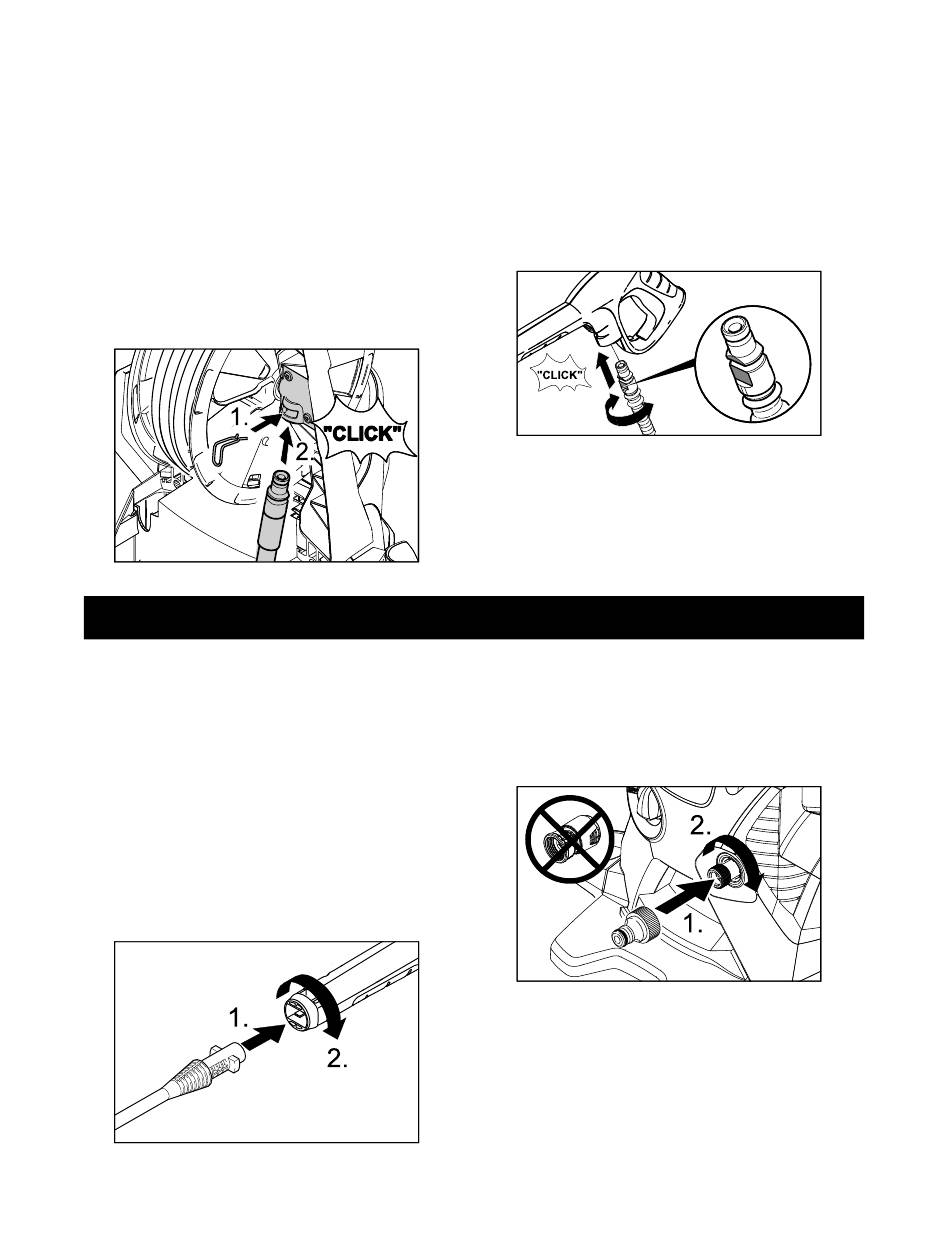

STEP 7:

Slide the retention clip on the reel (as
indicated by "1" below) then com-
pletely push the high pressure hose
in (as indicated by "2" below) until
you hear a click.
Tug on the hose before proceeding
to make sure it is securely installed.
It should not come loose when you
tug on it.
This pressure washer has been tested
by Kärcher's quality assurance team. A
small amount of water may be present in
the water inlet or outlet. This is normal
and will not affect the performance of the
pressure washer.
STEP 1:

Insert the spray wand of your choice
into the trigger gun. Press in against
the spring tension and twist into
locked position.
8 English
All manuals and user guides at all-guides.com
OPERATING INSTRUCTIONS
Connect the high pressure hose to
the trigger gun
STEP 8:

Push the high pressure hose into the
trigger gun until it locks audibly.
Note: Make sure the connection nip-
ple is aligned correctly.
Check the secure connection by pull-
ing on the high pressure hose.
Disconnect:
Press the disconnect key on the trig-

ger gun and remove the high pres-
sure hose from the trigger gun.
STEP 2:

Install the supplied connector to the
unit's water inlet.
Note: Never attach the garden hose
connector to the unit's water inlet!
