Step 4: Connect Coax Cables
To Booster

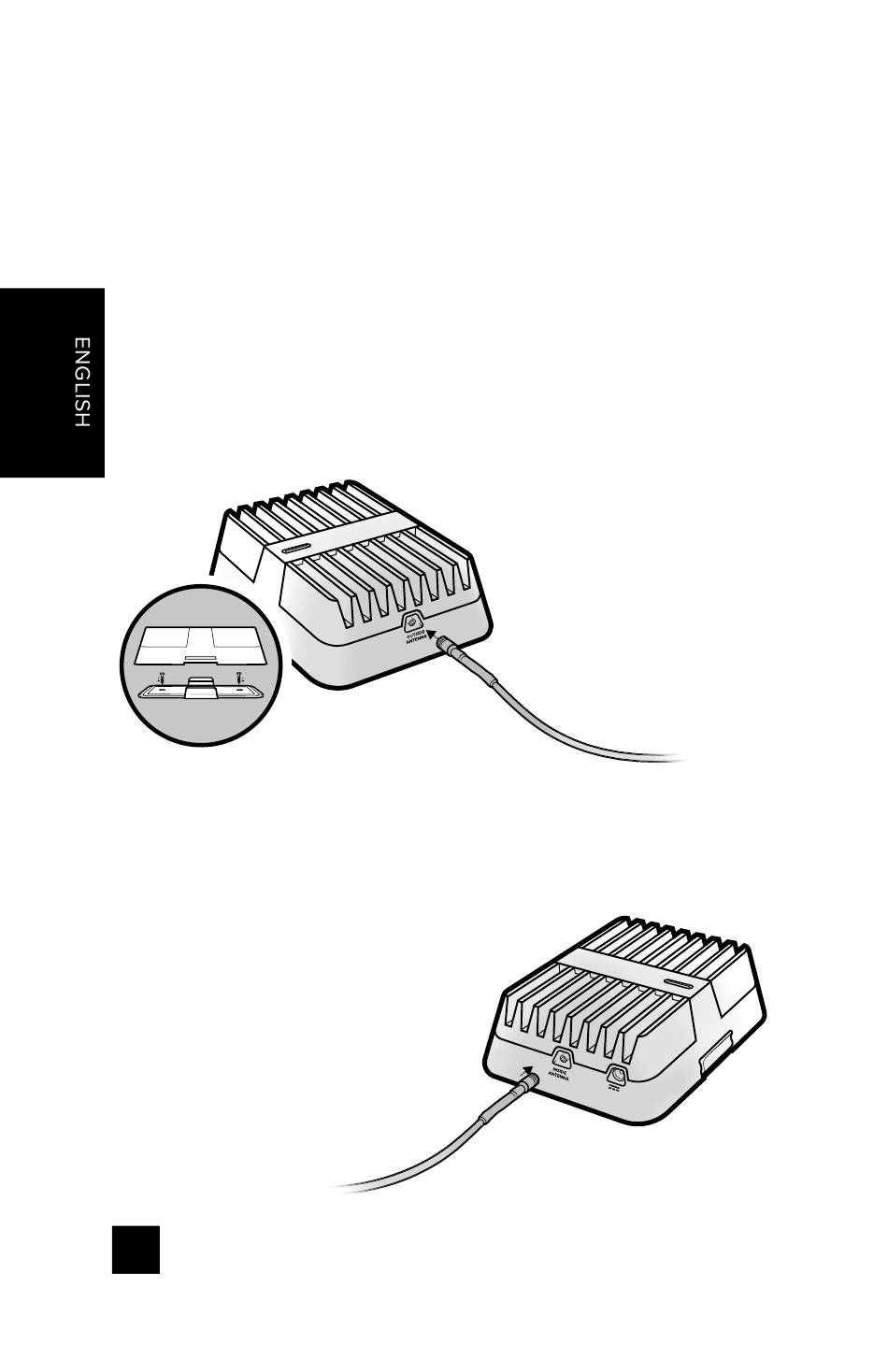

Connect the cable from the Outside NMO Antenna to the port
labeled "Outside Antenna" on the booster.
NOTE: Bracket can be used to fasten booster in a specifi c location if desired.
The Velcro® strip on the bottom of the bracket can also be used to keep
booster from sliding around.
Drive Reach
bracket
Connect the cable from the 4G In-Vehicle Antenna to the port
labeled "Inside Antenna" on the booster.
8
PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET
from Inside Antenna
from Outside NMO Antenna
