Operating Instructions
Safety Switch SGP-TW... (Twin)
Electrical function test
1. Switch on operating voltage.
2. Close all safety guards.
The machine must not start automatically.
¨ ¨
3. Start the machine function.
4. Open the safety guard.
The machine must switch off and it must not be
¨ ¨
possible to start it as long as the safety guard
is open.
Repeat steps 2 - 4 for each safety guard.

Inspection and service

WARNING
Danger of severe injuries due to the loss of the
safety function.
If damage or wear is found, the complete switch
f
and actuator assembly must be replaced. Re-
placement of individual parts or assemblies is
not permitted.
Check the device for proper function at regular
f
intervals and after every fault. For informa-
tion about possible time intervals, refer to
EN ISO 14119:2013, section 8.2.
Inspection of the following is necessary to ensure
trouble-free long-term operation:
correct switching function
f
secure mounting of all components
f
damage, heavy contamination, dirt and wear
f
sealing of cable entry
f
loose cable connections or plug connectors.
f
Information: The year of manufacture can be seen
in the bottom, right corner of the type label.
Hinged actuator
S-OU-SN
20
35,50

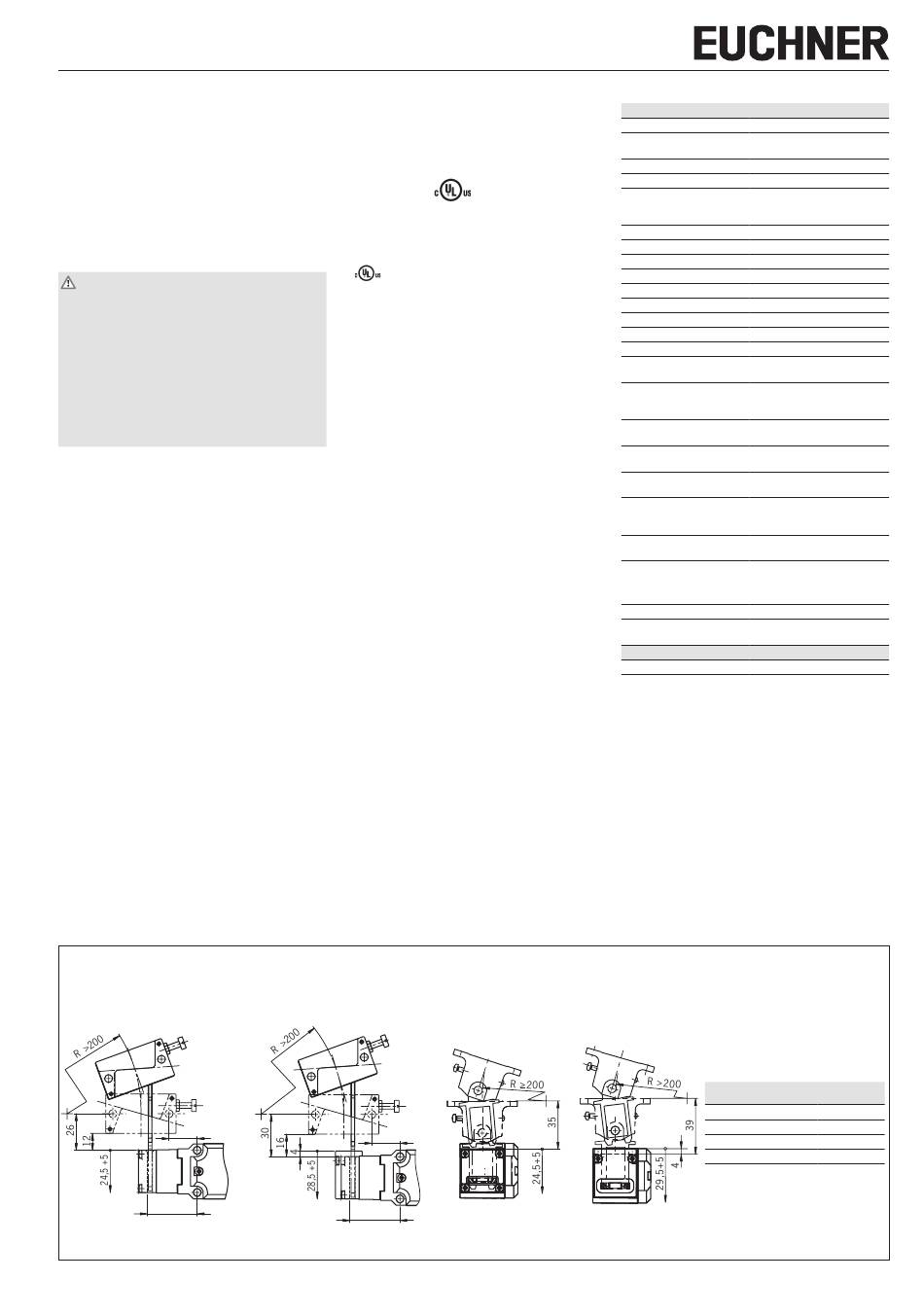

Figure 3: Minimum door radii
Exclusion of liability and warranty
In case of failure to comply with the conditions for
correct use stated above, or if the safety instruc-
tions are not followed, or if any servicing is not
performed as required, liability will be excluded and
the warranty void.
Notes about
The following information applies to devices
with cable entry:
For use and applications as per the requirements
of , a copper wire for the temperature range
60/75 °C is to be used.

EC declaration of conformity

The manufacturer named below herewith declares
that the product fulfills the provisions of the direc-
tive(s) listed below and that the related standards
have been applied.
EUCHNER GmbH + Co. KG
Kohlhammerstr. 16
D-70771 Leinfelden-Echterdingen
Directives applied:
Machinery directive 2006/42/EC
f
Standards applied:
EN 60947-5-1:2004 + Cor.:2005 + A1:2009
f
EN 14119:2013
f
The original EC declaration of conformity can also
be found at: www.euchner.de
Service
If service support is required, please contact:
EUCHNER GmbH + Co. KG
Kohlhammerstraße 16
D-70771 Leinfelden-Echterdingen
Service telephone:
+49 711 7597-500
Fax:
+49 711 753316
E-mail:
support@euchner.de
Internet:
www.euchner.de
Hinged actuator Hinged actuator
S-OU-LN
for insertion funnel
20
35,50
5

Technical data

Parameter
Housing material
Degree of protection acc. to
IEC 60529
Mech. life
Ambient temperature
Degree of contamination
(external, according to
EN 60947-1)
Installation position
Approach speed, max.
Extraction force
Retention force
Actuating force, max.
Actuation frequency
Switching principle
Contact material
Connection
Conductor cross-section
(flexible/rigid)
Operating voltage for optional
LED indicator
(only SGP-TW...538H)
Conditional short-circuit
current
Switching voltage, min.,
at 10 mA
Switching current, min., at
24 V
Short circuit protection
(control circuit fuse) acc. to
IEC 60269-1
Conventional thermal cur-
rent I
th
Utilization category acc. to EN 60947-5-1
AC-15
DC-13
Rated insulation voltage
Rated impulse withstand
voltage
Reliability values acc. to EN ISO 13849-1
B
10d
Hinged actuator
S-LR-SN S-LR-LN
for insertion funnel
Value
Reinforced thermoplastic
IP67
1 x 10 operating cycles
6
-20 ... +80 °C
3 (industrial)
Any
20 m/min
25 N
10 N
25 N
6700/h
Slow-action switching contact
Silver alloy, gold flashed
Cable entry M20 x 1.5
0.34 ... 1.5 mm²
L060 12 - 60 V
L110 110 V
L220 230 V
100 A
12 V
1 mA
4 A gG
4 A
4 A 230 V
4 A 24 V
U = 250 V
i
U = 2.5 kV
imp
2 x 10
6
Door radius min.
Actuator
[mm]
Actuator-S-G... 300
Actuator-S-W... 300
Hinged actuator-S-OU... 200
Hinged actuator-S-LR... 200
