D-Link GO-SW-5GE Guide D'installation Rapide

Quick Install Guide
5/8-Port Gigabit Desktop Metal Switch
Thank you for purchasing the GO-SW-5GE/GO-SW-8GE Gigabit Desktop Metal
Switch . Follow the easy steps in this guide to properly set up your switch. Please
verify that all the package contents listed below are available.

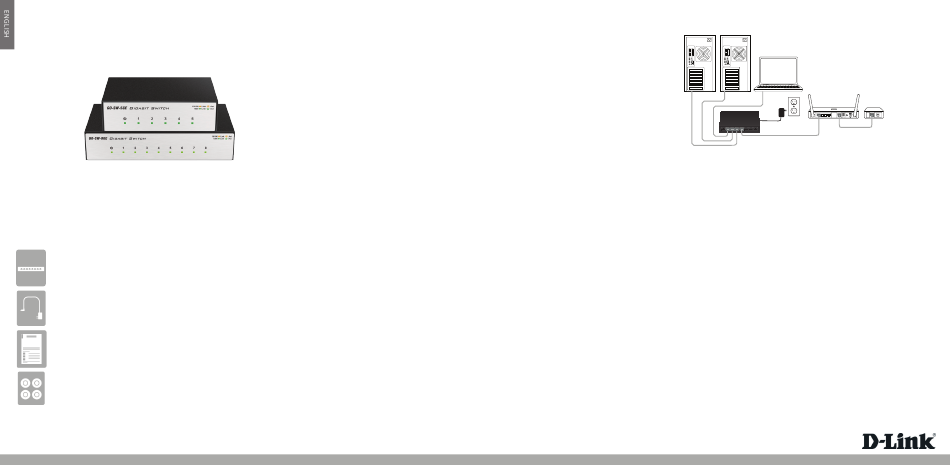

Package Contents
GO-SW-5GE/GO-SW-8GE Gigabit Desktop Metal Switch
Power Adapter
Quick Install Guide
Four Rubber Feet
If any of the above items are missing, please contact your reseller.
GO-SW-5GE/GO-SW-8GE
What This Product Does
Expand your home or office network with the dlinkgo™ 5/8-Port Gigabit Desktop Metal Switch. This
Switch lets you network up to five or eight devices at speeds up to 2000Mbps (at full duplex) and is
compact enough to be placed virtually anywhere in your home or office. Add a computer, printer, NAS
storage device, or network camera and expand the functionality of your network. You may also connect
this switch to other switches and routers to expand your network.
Before You Begin
• Visually inspect the DC power jack and make sure that it is fully secured to the power adapter.
• Do not cover the ventilation holes on the sides of the Switch, and make sure there is adequate
ventilation around it.
• Do not place heavy objects on the switch.
• Place the Switch in a cool and dry environment.
Mounting
• You may mount the Switch on a wall. Two mounting slots are provided on the bottom of the
Switch for this purpose.
Connecting the Switch
Step 1
Plug the supplied power adapter into the Switch and the other end into a power outlet, power strip,
or surge protector (recommended). Verify the Power indicator is lit on the Switch.
Step 2
Connect one end of an Ethernet cable in the device you want to connect to the Switch and the other
end into one of the Ethernet ports on the Switch. Check the Link lights (LEDs) on both the Switch and
the device to verify that the cable is good and that there is a valid connection.
Note: A Category 5e (or higher) Ethernet cable must be used for 1000Mbps or higher operation.
LEDs
Power Indicator - This green indicator light is on when the Switch is receiving power; otherwise, it is off.
Link/Act - This LED indicator light is green when the port is successfully connected to an 1000Mbps
device and will blink as data is transmitted or received.
This LED indicator light is amber when the port is successfully connected to an 100Mbps or 10Mbps
device and will blink as data is transmitted or received.
Network
1 2 LAN 3 4
8 7 6 5 4 3 2 1
GO-SW-8GE
D-Link Green Technology
D-Link Green Technology implements special power-saving features while using gigabit speeds that
detect cable length and link status, and will adjust power usage accordingly. Green Technology saves
energy in two specific ways:
1. If there is no link on a port (when there is no connection or the device connected is turned
off) the port(s) will enter a "sleep mode" which will drastically reduce the amount of power
used.
2. D-Link Green Technology detects the length of connected Ethernet cable and adjusts
power usage accordingly without affecting performance. This way, a port connected to
a 20m or under cable only uses as much power as it needs, instead of using full power,
which is only needed for 100m cables.
This product is IEEE 802.3az Energy Efficiency Ethernet compliant. The IEEE 802.3az EEE standard defines
mechanisms and protocols intended to reduce the energy consumption of network links during periods
of low utilization, by transitioning interfaces into a low-power state without interrupting the network
connection.
Both connected devices must support 802.3az EEE for power saving support. If the connected device
does not support 802.3az EEE, the switch will default to D-Link's Green Technology of power saving.
Technical Support
Having trouble installing your new product? D-Link's website contains the latest user documentation and
software updates for D-Link products. U.S. and Canadian customers can contact D-Link Technical Support
through our website.
United States Canada
Internet: http://support.dlink.com Internet: http://support.dlink.ca
Copyright ©2016 All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries. Other
trademarks are the property of their respective owners. Product specifications, size and shape are subject to change without notice, and actual
product appearance may differ from that depicted on the packaging. Visit dlink.com (US) or dlink.ca (Canada) for more details.
Version 4.00(NA)_90x65 | March 28, 2016 6GOSW5GEUS01G
