Test Mode - Jetvent Fans JVEC-LP Guide D'installation

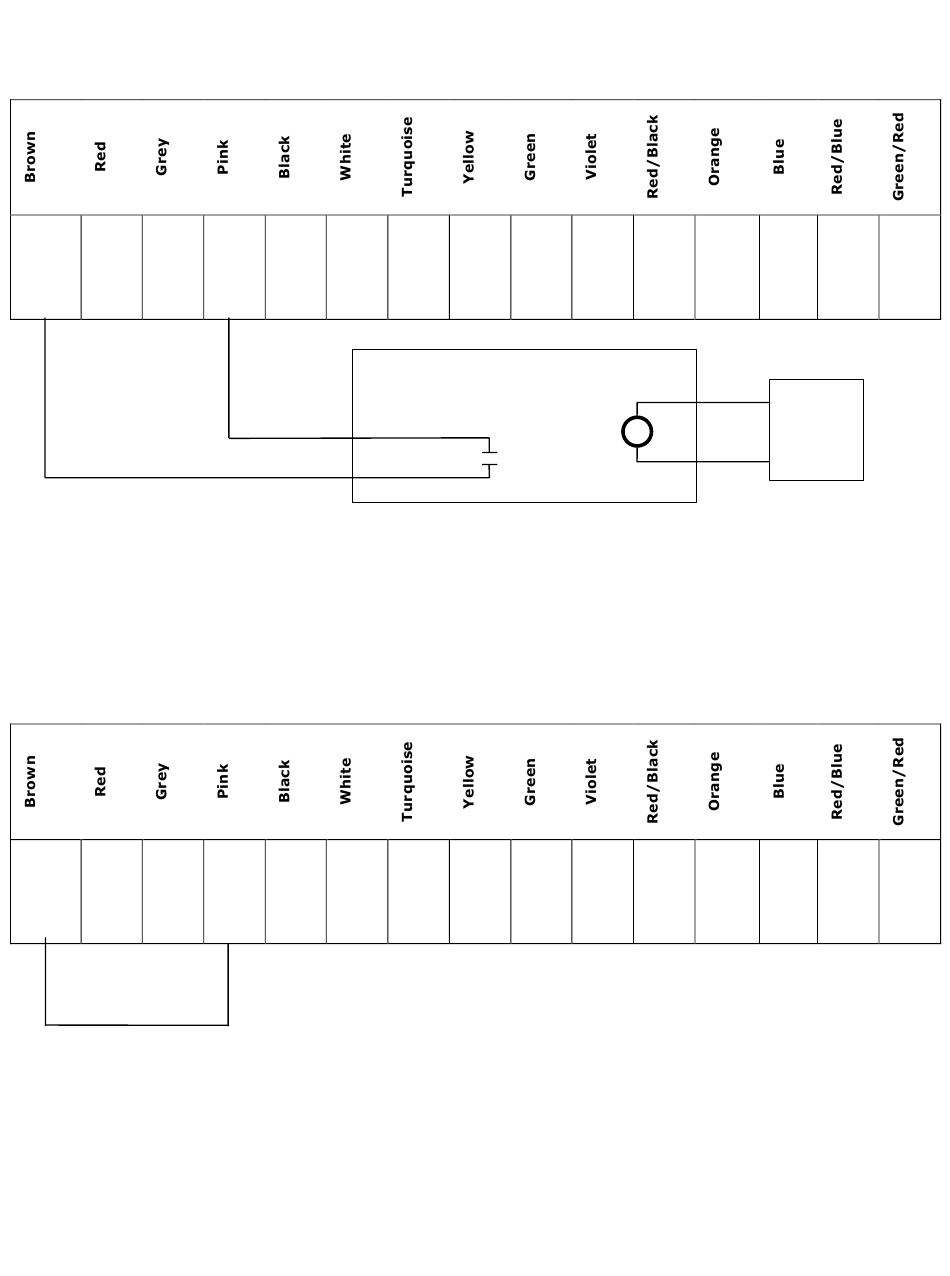

Interlock the JetVent Fans with the Fire Alarm Control Panel (FACP) via Normally Open Power Closed relay
+24 +10 Din1
VDC VDC
Test mode
To test proper operation prior to integrating fan with the FACP, insert a jumper wire from +24VDC to Din2.
+24 +10 Din1
VDC VDC
Din2 RSA RSB
(D+) (D-)
Normally Open Power Closed Relay
(not included)
WARNING: Never apply line voltage to the digital input
Din2 RSA RSB
(D+) (D-)
WARNING: Never apply line voltage to the digital input
GND
Ain1 Ain1
0- 4-
10V 20m
A
GND
Ain1 Ain1
0- 4-
10V 20m
A
12
Ain2 Ain2 Aout
0- 4-
10V 20m
A
+
-
Ain2 Ain2 Aout
0- 4-
10V 20m
A
GND
Fault Fault
NO COM
FACP
GND
Fault Fault
NO COM
