Sensor 1; Sensor 2; Step 5: Interlock Fan With Fire Alarm Control Panel - Jetvent Fans JVEC-LP Guide D'installation

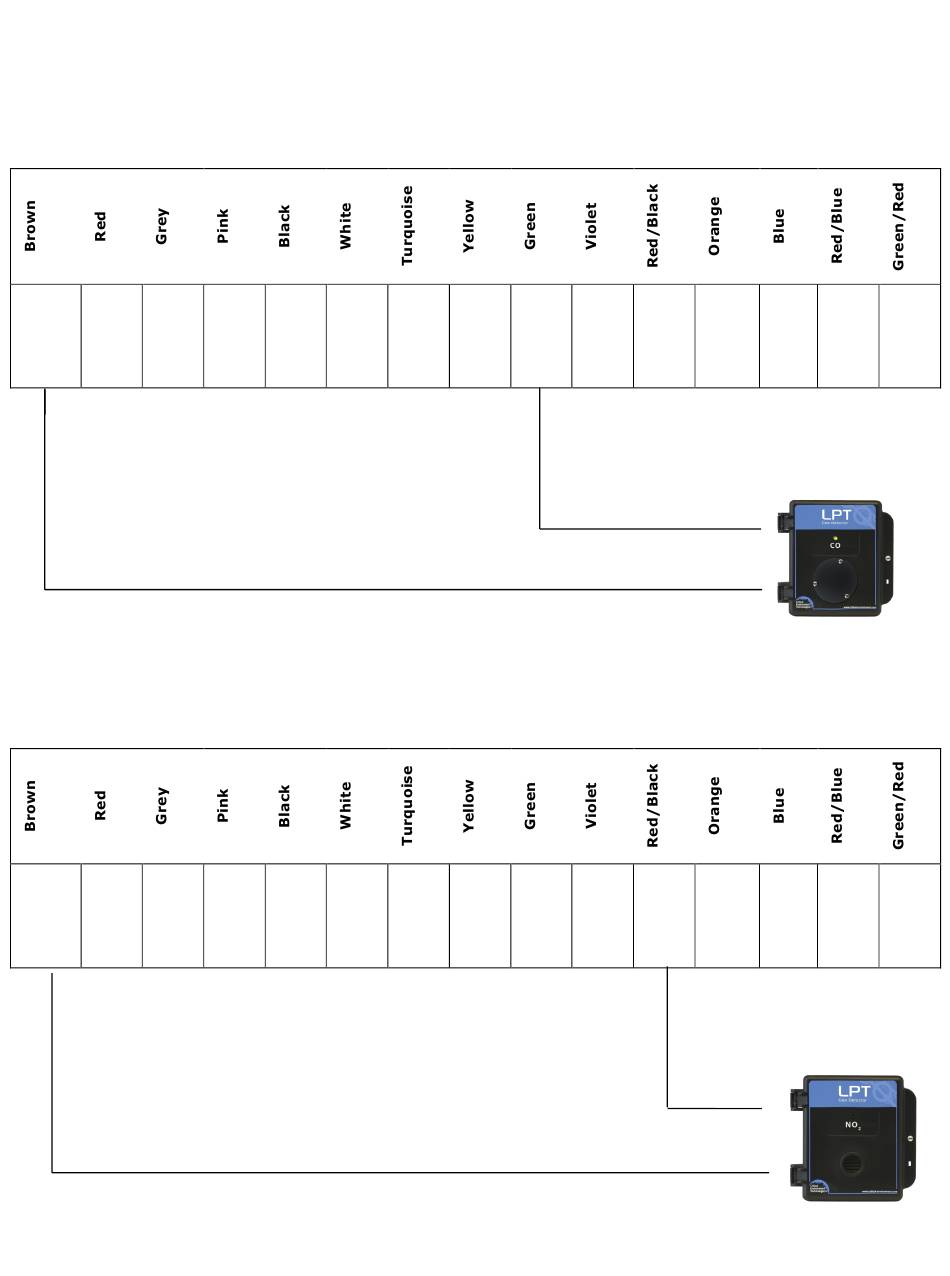

The JetVent Fans are capable of wiring two (2) sensors directly to the fan.
IMPORTANT NOTE: The combined sensor load must not be greater than 70mA.
SENSOR 1
+24 +10 Din1
VDC VDC
SENSOR 2
+24 +10 Din1
VDC VDC
STEP 5: INTERLOCK FAN WITH FIRE ALARM CONTROL PANEL
Din2 RSA RSB
(D+) (D-)
Din2 RSA RSB
(D+) (D-)
GND
Ain1 Ain1
0- 4-
10V 20m
A
GND
Ain1 Ain1
0- 4-
10V 20m
A
11
Ain2 Ain2 Aout
0- 4-
10V 20m
A
SIG +
24 +
Ain2 Ain2 Aout
0- 4-
10V 20m
A
SIG +
24 +
GND
Fault Fault
NO COM
GND
Fault Fault
NO COM
