Eaton Cooper Lighting PORTFOLIO LD4A Instructions D'installation

697916 ADP140603
Installation Instructions – LD4A/LD6A Emergency Commercial
Recessed
Instructions d'installation – Luminaire d'urgence encastré commer-
cial LD4A/LD6A
Instrucciones de instalación de las luminarias de emergencia LD4A/
LD6A empotradas de uso comercial
IMPORTANT: Read carefully before installing fixture.
Retain for future reference.
WARNING
Risk Of Electrical Shock! Disconnect power at fuse or
circuit breaker before installing or servicing.
INSTALLATION
1. To prevent electrical shock and unintentional battery
discharge, do not join the unit connector until
the installation is complete. Immediately prior to
permanently turning the A.C. power on, engage the
connector on the battery pack assembly.
SERVICING
1. This fixture provides more than one power supply
output source. To reduce the risk of electrical
shock, disconnect both normal and emergency
sources by turning off the A.C. branch circuit and
by disconnecting the connector on the battery pack
assembly.
2. The emergency source requires an unswitched A.C.
power source of either 120 or 277 volts. Properly cap
the unused A.C. lead (Refer to Wiring Diagram).
3. This unit is for recessed ceiling mounting only. Do not
use outdoors, in hazardous locations, or near gas or
electric heaters.
4. This is a recessed ceiling mounted LED unit with
standby batter operation. In normal mode the LED will
be fully illuminated. In the emergency mode the LED
will provide emergency illumination for a minimum of
90 minutes in accordance with the UL 924 standard.
Brand Logo
reversed out of
black
WARNING
Risk Of Fire! Do not install insulation within 3
inches (76 mm) of any part of the luminaire fixture
or in a way that may entrap heat.

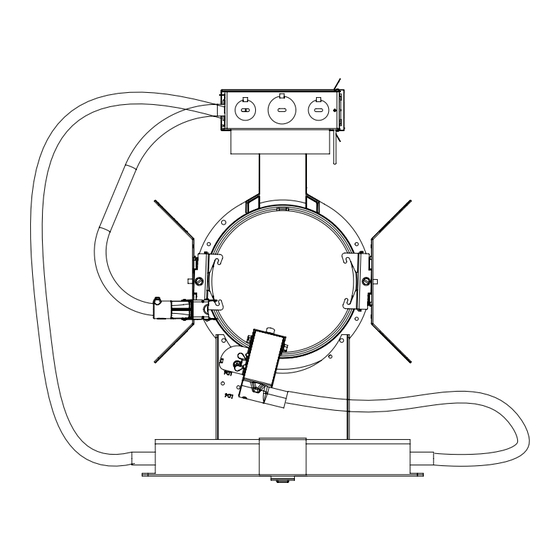

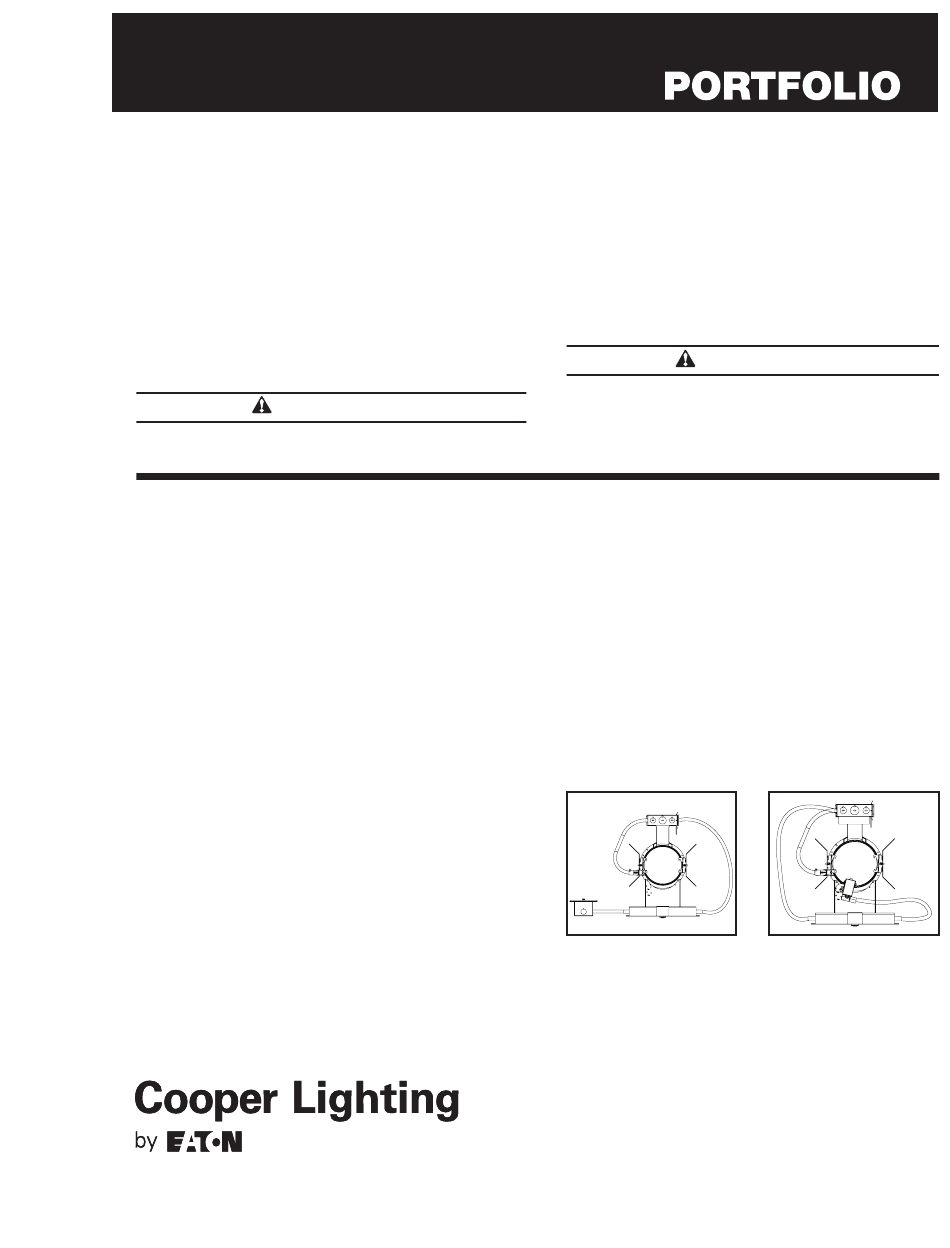

5. The test switch and indicator light may be provided
for ceiling mounting near the fixture in a single
gang switch box (Figure 1.). or mounted on the
housing in an adjustable bracket to position directly
in a reflector (Figure 2.).
6. When used in insulated ceilings, insulation must be
kept off of the unit and no closer than 3" from the
unit on all sides.
7 . Do not use this equipment for other than the
intended use.
8. Install only in accordance with National Electric
Code and local regulatory agencies requirements.
9. Installation and servicing to be performed only by
qualified personnel.
Figure 1.
TM
INS # INS # INS #
Figure 2.
