Trigger recording
Enable this in order to record motion detections onto an SD card.

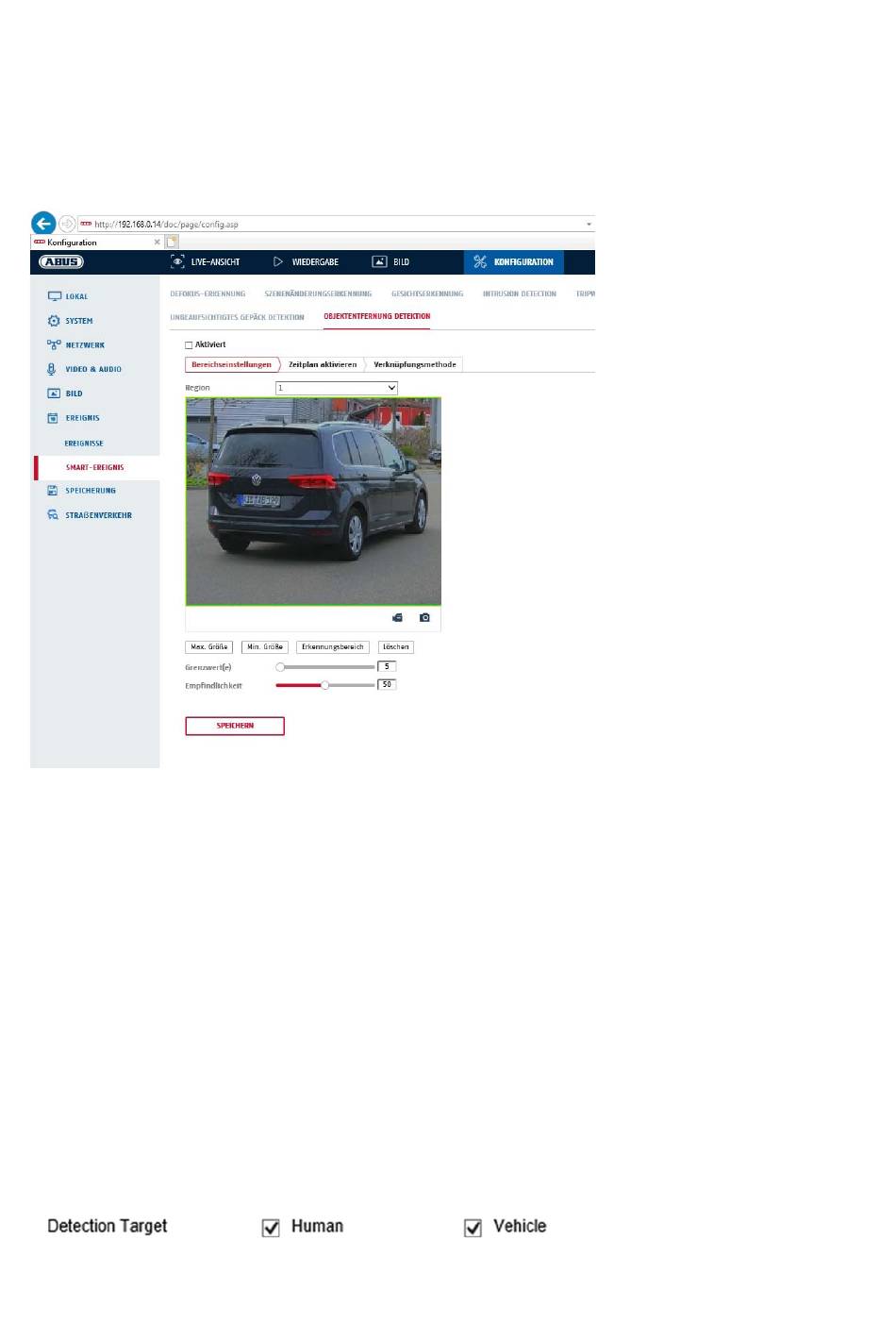

8.6.10 Area input detection
This function detects the entry of an object into a marked area and immediately triggers an event.
Preview video:
Max. size:
Min. size:
Detection area:
Delete:
Detection target
This menu item is the setting for object detection. Object detection detects people and vehicles on a neural
basis.
configure the area to be monitored
This function determines the maximum size of the object to be detected. This is done
by drawing a rectangle in the preview video. The rectangle can be drawn anywhere in
the preview video.
This function determines the minimum size of the object to be detected. This is done
by drawing a rectangle in the preview video. The rectangle can be drawn anywhere in
the preview video.
The area to be monitored can be drawn in the video image (quadrilateral area).
Operation: Press button -> set corner points using left mouse button (max. 4) -> press
right mouse button to finish drawing
delete the area.
