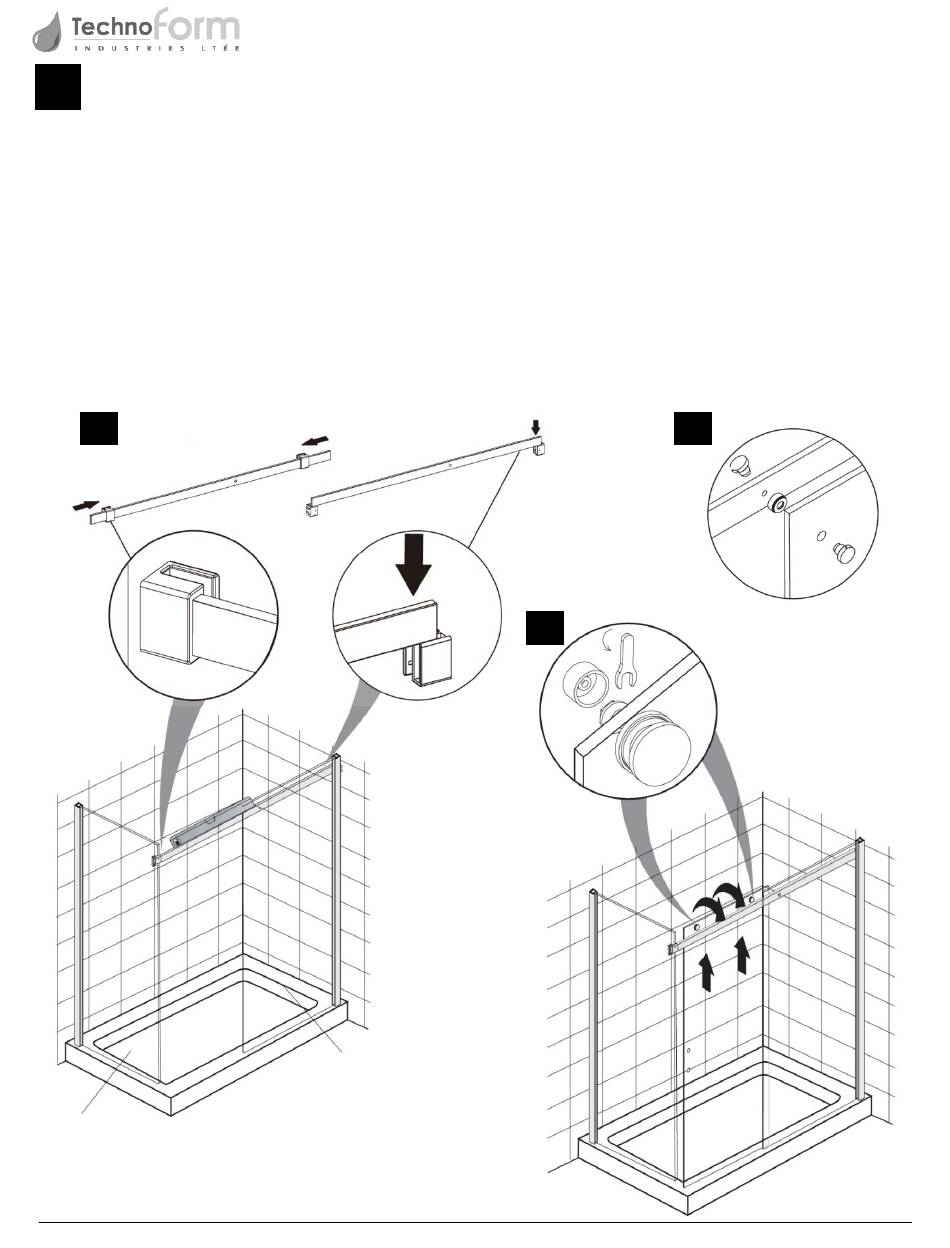

A. Insérez les deux couverts pour bloc
4
d'extrémité pour rail (no. 15) sur le rail (no.
13) et déposez le rail sur les blocs d'extrémité
pour rail (no. 14), puis serrez les vis de
retenues à l'aide de la clef Allen (no. 23).
B. Installez la pièce pour attache du rail (no. 8)
entre le panneau fixe (no. 22) et le rail (no.
13).
C. Installez les roulettes (no. 12) sur la porte (no.
3) à l'aide de la clef d'ajustement (no. 24).
Notez que la quincaillerie est fournie dans la
boîte avec les roulettes (no. 12).
D. Déposez la porte (no. 3) sur le rail (no. 13).
A
Panneau de côté (no. 2)
Side panel (no. 2)
450.699.2424 – 1 877.377.4494 450.699.8484 info@technoform.ca www.technoform.ca
CISDP201612‐02
3
Panneau fixe (no. 22)
Fixed panel (no. 22)
A. Insert both track end block covers (no. 15)
on the track (no. 13) and put the track on
the track end blocks (no. 14), then tight the
retaining screws with the help of the Allen
key (no. 23).
B. Install the track attachment part (no. 8)
between the fixed panel (no. 22) and the
track (no. 13).
C. Install the rollers (no. 12) on the door (no. 3)
using the adjustment key (no. 24). Note that
hardware is supplied in the box with the
rollers (no. 12).
D. Position the door (no. 3) on the rail (no. 13).
B
C
Roulette (no. 12)
Roller (no. 12)
7
