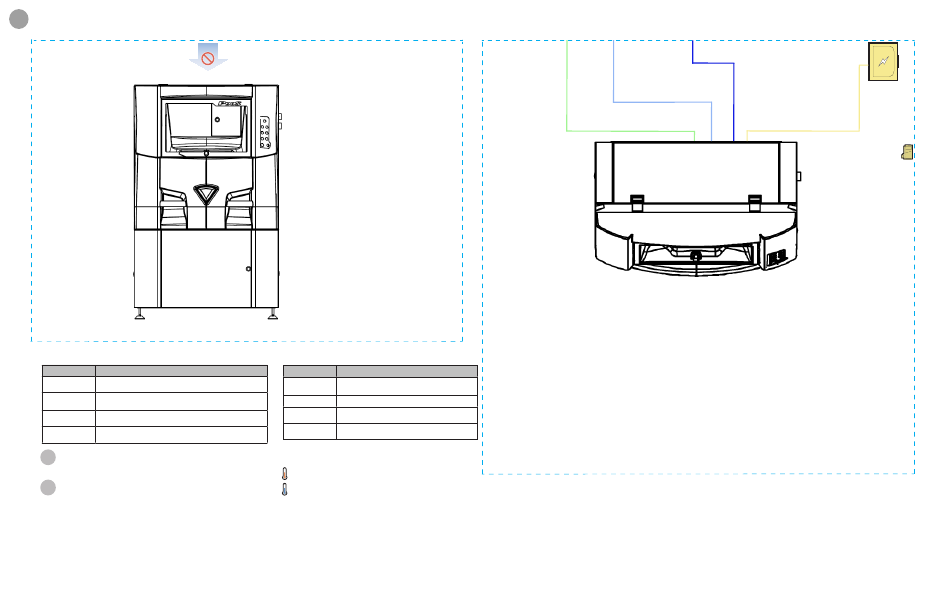

POSTER SUR LES INSTALLATIONS NÉCESSAIRES
18
Gas
Gaz
ProX DMP 100
Type de
Prise pour raccord rapide, diamètre interne de 6 mm
connexion
Fabrication : 5-10 l/min (0,17-0,35 pied cube par minute)
Débit
Purge : 30 l/min (1,06 pied cube par minute)
Pression
Minimale : 5,5 bar (80 psi) - Maximale : 6,9 bar (100 psi)
d'alimentation
Azote : 99,99 %
Qualité
Argon : 4,8 au minimum
Bulk gas tank
1
▪ Nitrogen : 99.99% pure nitrogen
▪ Argon : Quality 4.8
Gas cylinders
2
▪ Nitrogen : 99.99% pure nitrogen
▪ Argon : Quality 4.8
▪ Connect cylinders with auto-switching
manifold to ensure constant gas
supply during build
3D SYSTEMS, INC.
A/C
Air Conditioning
• required
•
do not install vent directly above process station
Compressed Air
Air comprimé
Prise pour raccord rapide, diamètre interne de
Type de
connexion
6 mm
Débit
10 l/min (0,35 pied cube par minute)
Pression
Minimale : 6 bar (87 psi) - Maximale : 8 bar
d'alimentation
(116 psi)
Classe 4,4,4, conformément à la norme ISO 8573-
Qualité
1:2010
Atmosphere
max
30° C (86° F)
min 15° C (59° F)
Room temperature
setpoint and stability
• set temperature between 20° C and 25° C (68° F and 77° F)
• temperature should be constant to ±5° C (± 9° F)
ProX DMP 100
Note : the painting pipe colors are only for indication, and might not fit with your local, state and federal regulations.
Always refer to the pipe color coding standards of your local, state and federal regulations.
16
Network connection
• recommended
Control Cabinet
power panel
Compressed Air
• 230 VAC
• customer supplied/installed
• 50/60 Hz
• 5 kVA
• 1ph + neutre + PE
Inert gas
• customer supplied/installed
Room oxygen monitor
• recommended
• customer supplied/installed
• safety interlock contact rating: 10 A
