PRODUCT SPECIFICATIONS
Bar length ....................................................................................................................................... 16 in.
Chain pitch .................................................................................................................................. .375 in.
Chain gauge ................................................................................................................................ .050 in.
Chain type ...........................................................................................................Low Profile Skip Tooth
Drive sprocket ............................................................................................................................. 6-tooth
Input ...........................................................................................nominal 120V/60Hz AC only, 12 Amps
Chain oil tank capacity .................................................................................................................... 6 oz.
SAFE-T-TIP
®
LOW KICKBACK
SAW CHAIN
REAR
HANDLE
CORD
RETAINER

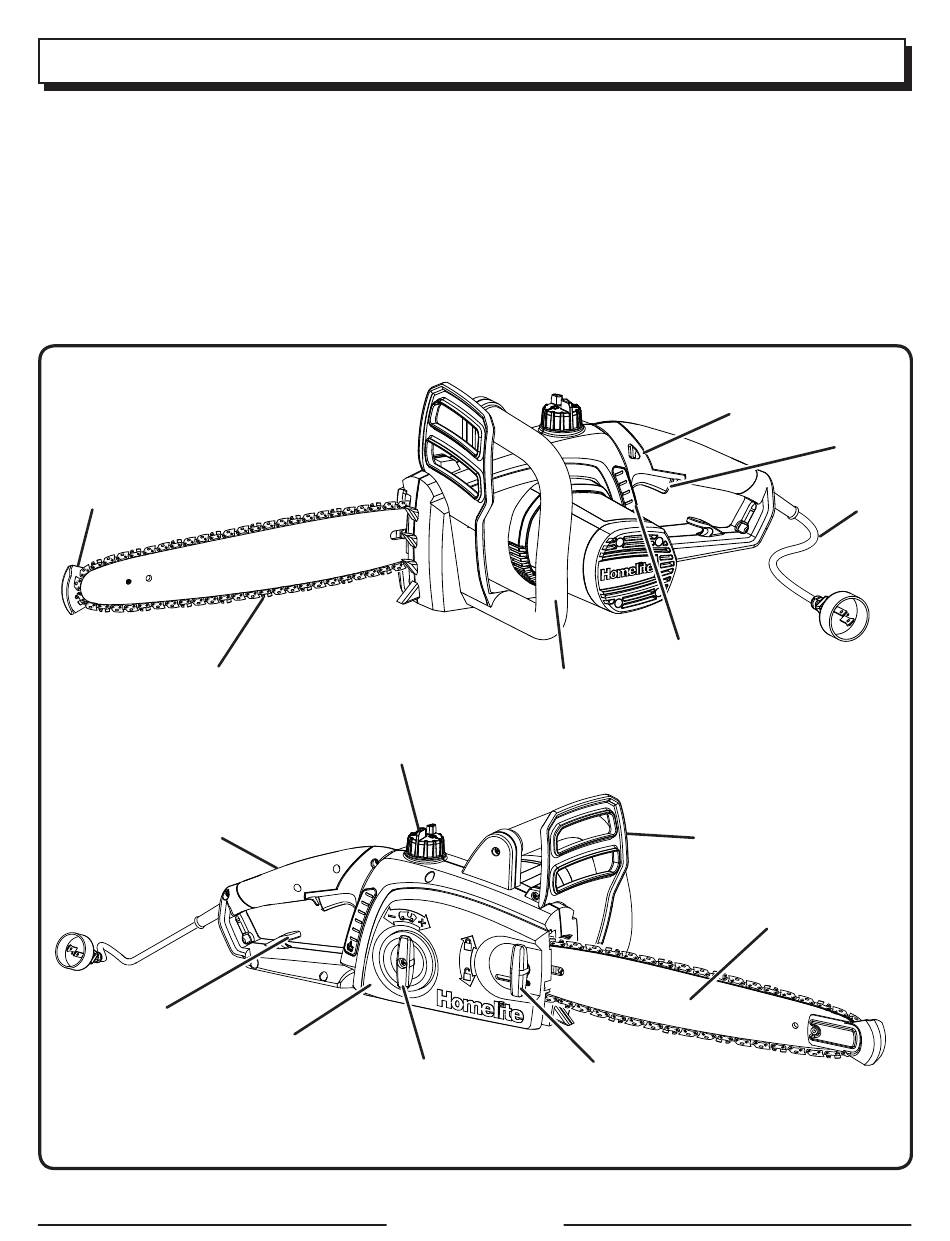

FEATURES

OIL RESERVOIR
CAP
CHAIN COVER
CHAIN
TENSIONING
KNOB
Page 13 — English
SWITCH
LOCK-OUT
QUICK VIEW
OIL INDICATOR
FRONT
HANDLE
FRONT HAND
CHAIN COVER
LOCK KNOB
SWITCH
TRIGGER
POWER
CORD
GUARD
GUIDE
BAR
Fig. 6
