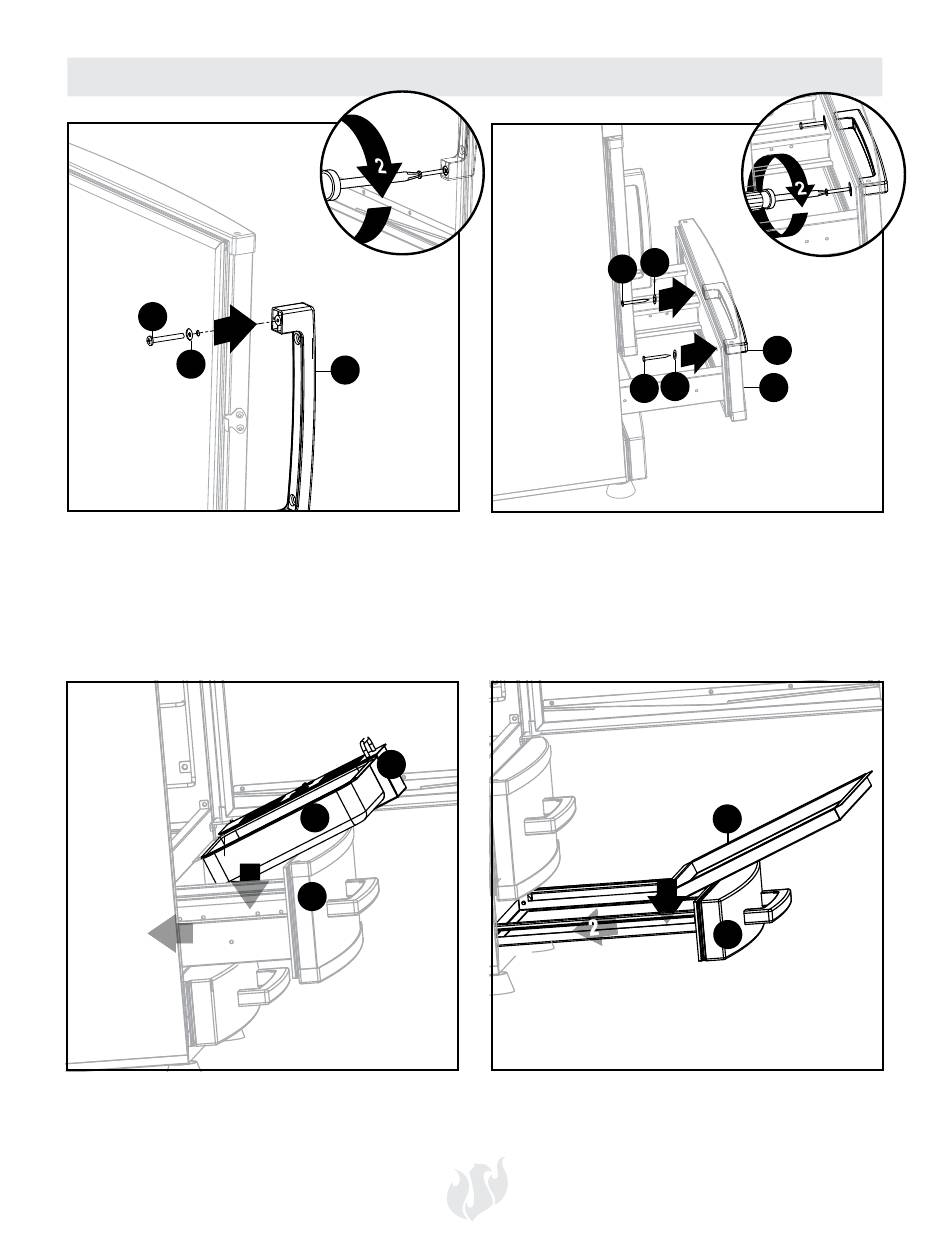

Secure handle (J) to cabinet door by partially
fastening flat washer (DD) and long bolt (BB). Tighten
bolts (BB) securely.
9
1
2
Place water pan (H) in water pan frame (left side of top
drawer). Repeat same step for placing wood chip box
with lid (G) in wood chip box frame (right side
of top drawer).
Assembly Instructions
J
G
H
P
7
8
DD
BB
BB DD
Secure handle (J) to top drawer by partially fastening
flat washer (DD) and long bolt (BB). Tighten bolts (BB)
securely. Repeat for bottom drawer.
10
1
Place grease pan (I) into grease pan frame of
bottom drawer.
