Assembly
Mounting the Protective Devices
Before any work on the machine itself, pull
the mains plug.
Note: After breakage of the grinding disc during
operation or damage to the holding fixtures on
the protection guard/power tool, the machine
must promptly be sent to an after-sales service
agent for maintenance (for addresses, see sec-
tion „After-sales Service and Customer
Assistance".
Protection Guard for Grinding
machine, and turn the protection guard until it
can clearly be heard to engage.
Adjust the position of the protection guard 12 to
the requirements of the work process. For this,
press the release lever 1 upward and turn the
protection guard 12 to the required position.
Adjust the protection guard 12 in such a
manner that sparking is prevented in the di-
rection of the operator.
The protection guard 12 may be turned only
upon actuation of the release lever 1! Oth-
erwise the power tool may not continue to
be used under any circumstances and must
be taken to an after-sales service agent.
Note: The encoding keys on the protection
guard 12 ensure that only a protection guard
that fits the machine type can be mounted.
1 609 929 S87 | (19.10.09)

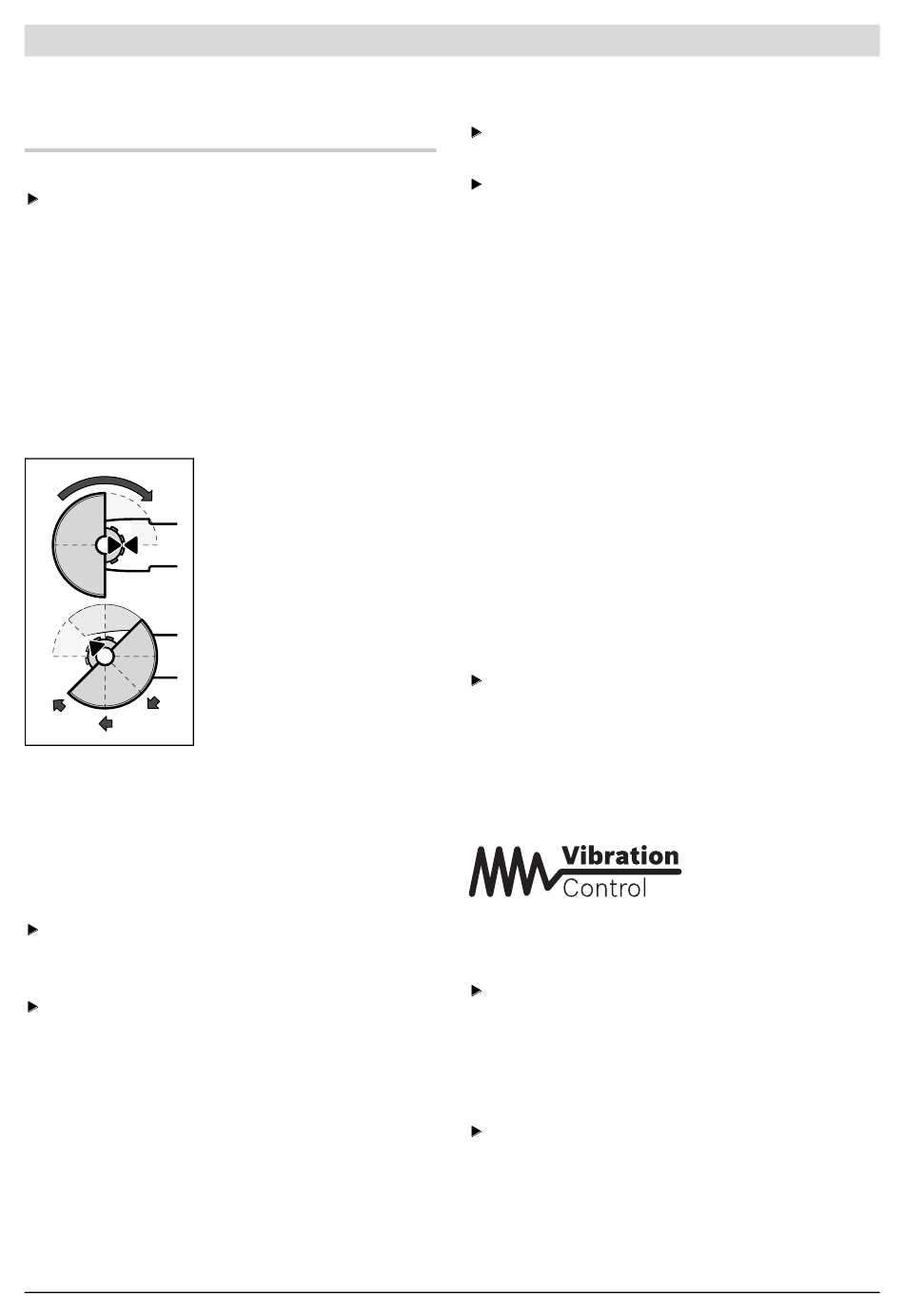

Place the protection guard
12 onto the spindle collar
as shown in the illustra-
tion. The triangle marks on
the protection guard must
correspond with the re-
spective marks on the gear
case.
Press the protection guard
12 onto the spindle collar
until the shoulder of the
protection guard is seated
against the flange of the
Protection Guard for Cutting
For cutting metal, always work with the pro-
tection guard for cutting 13.
For cutting stone, always work with the cut-
ting guide with dust extraction protection
guard 20.
The protection guard for cutting 13 is mounted
in the same manner as the protection guard for
grinding 12.
Extraction Hood for Sanding
The extraction hood 7 can be used for low-dust
sanding of paint, varnish and plastics in con-
junction with the carbide grinding head 9 or the
rubber sanding plate 16 with a sanding sheet
17. The extraction hood 7 is not suitable for
working metals.
A suitable Bosch vacuum cleaner can be con-
nected to the extraction hood 7.
The extraction hood 7 is mounted in the same
manner as the protection guard 12. The brush
collar is exchangeable.
Auxiliary Handle
Operate your machine only with the auxilia-
ry handle 5.
Screw the auxiliary handle 5 on the right or left
of the machine head depending on the working
method.
Vibration-dampening Auxiliary Handle
The vibration-dampening auxiliary handle reduc-
es the vibrations, making operation more com-
fortable and secure.
Do not make any alterations to the auxiliary
handle.
Do not continue to use an auxiliary handle if it
is damaged.
Hand Guard
For operations with the rubber sanding
plate 16 or with the cup brush/wheel
brush/flap disc, always mount the hand
guard 15.
The hand guard 15 is fastened with the auxiliary
handle 5.
