Overview

• Internet access to the system data via VBus.net
• Connection to a building management system via BACnet / IP or Modbus / TCP
• Comfortable system parameterisation via the RPT Parameterisation Tool possible
• 2 controllers can be connected
• Internal memory for data logging
• Automatic firmware updates via Internet
• Suitable for all controllers with VBus
• WLAN functionality
Technical data
Housing: plastic
Ingress protection: IP 20 / EN 60529
Protection class: III
Ambient temperature: 0 ... 40 °C
Maximum altitude: 2000 m above MSL
Relative humidity: 10 ... 90 %
Dimensions: 95 × 70 × 25 mm
Mounting: wall mounting (optional)
Display: operating control LED
Interfaces: 2 x VBus ® for the connection to controllers (1 of them can be used
for BACnet or Modbus), 10/100 Base TX Ethernet, Auto MDIX, WLAN 2.4~2.4835
GHz
WLAN encryption: WPA / PSK, WPA2 / PSK
Transmit power limit (e.i.r.p.): < 100 mW
Power consumption: < 1.75 W
Power supply:
Mains adapter: 100 – 240 V~, 1A / 12 V ⎓ , 1 A (Level 6)
Datalogger: 12 V ⎓ , 120 mA
Electrical energy source: ES1 (EN 62368-1)
Electrical power source: PS1 (EN 62368-1)
Thermal energy source: TS1 (EN 62368-1)
Mechanical energy source: MS1 (EN 62368-1)

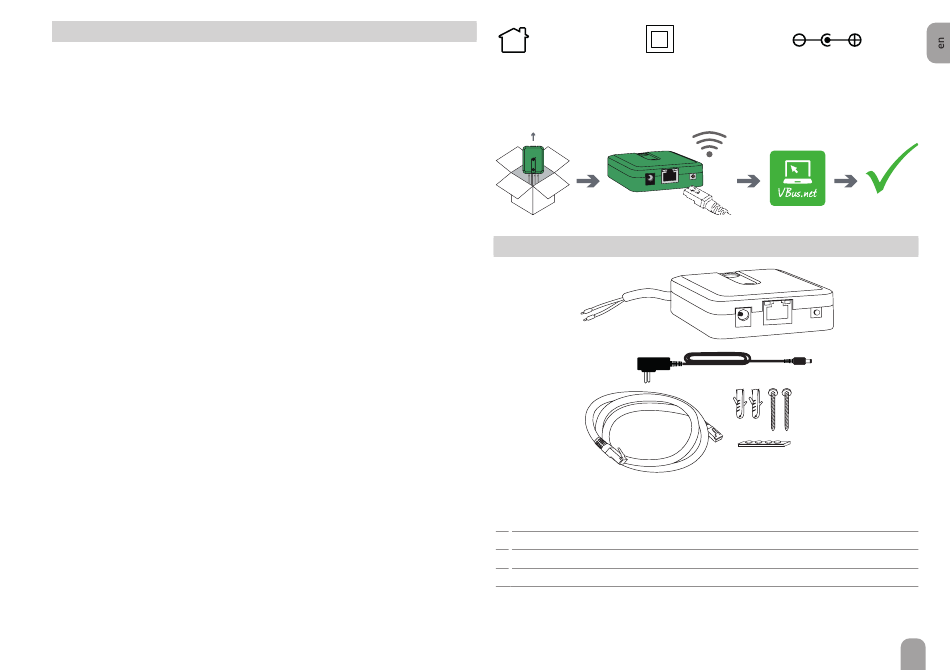

Easy installation in only three steps
®
Use mains adapter in dry interior Mains adapter protection class: II
rooms only.
2

Scope of delivery

1
2
3
If one of the items mentioned below is missing or defective, please contact your
distributor:
1 Datalogger incl. mains adapter, VBus
2 Interchangeable mains adapter plugs (EURO, UK, USA, AUS)
3 Network cable (CAT5e, RJ45), 2 m
4 Wall plugs, screws and rubber pads
Manual (not illustrated)
Coaxial connector polarity:
internal: plus
external: minus (GND)
4
® cable pre-connected
