CHASEWAY INSTALLATION FOR 265V
MODELS WITH MOLDED SMC PLASTIC
CONTROL BOX COVER
The chaseway can be used several ways in conjunction
with the associated knockouts in the junction box and
sub-base to protect and conceal wiring (cordsets/power
supply kits and branch circuit wiring).

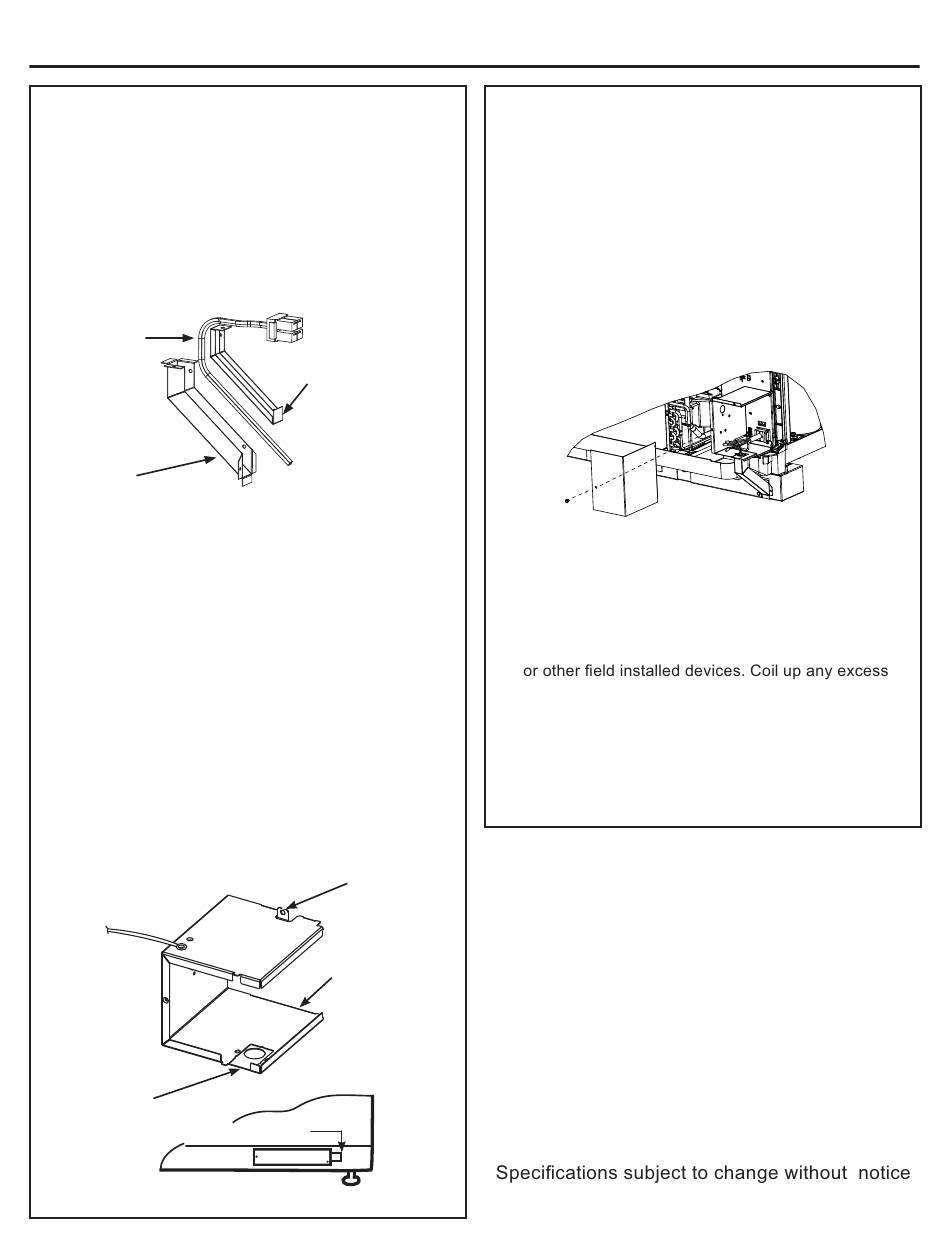

1. Wiring is placed between the two halves of the
chaseway. Observe the orientation of the chaseway.
Wiring
Chaseway
2. Align the lower screw holes and secure the halves
together using one type A screw. The upper screw will
be installed in Step 6.
3. Remove the junction box cover by removing the
screw on the front. Rotate the cover to the right to
unlock the locating tabs on the rear.
4. Remove the junction box from the molded SMC
control box cover by removing the double helix screw
from the top. Save for re-assembly. Carefully lift the
junction box upward to clear the locating slots on the
molded control box cover.
DO NOT REMOVE THE GROUND WIRE FROM THE
CHASSIS OR JUNCTION BOX.
5. Remove the rectangular knockout at the bottom of the
junction box. Remove the rectangular knockout at the
right end of the sub-base.
Rectangular
knockout
Chaseway knockout
Front View
Installation Instructions
Chaseway cover
Screw
Tab
Junction Box
Base
6. Slide the upper end of the chaseway with wiring
protruding into rectangular knockout opening in the
junction box. Be sure chaseway "ears" are on the
inside of the box. Drive one Type A screw through
the junction box bottom into the chaseway "ear"
hole. Drive one Type A screw into the upper hole in
the chaseway. Insert the lower end of the chaseway
into the rectangular hole in the sub-base and slide
to the right into the rectangular knockout making
sure chaseway "side ears" are inside the sib-base.
Replace junction box on chassis in reverse order of
Step 4. Drive one Type A screw through the sub-
base slotted hole into chaseway "ear" hole.
7. Recheck to be sure the chaseway "ears" are inside
the junction box and the sub-base and that no wiring
is pinched.
8. Complete the connection of wiring inside the sub-
base either by fully inserting the plug into the
receptacle or attaching to the branch circuit wiring
wiring inside the sub-base.
9. Complete connections inside the junction box.
For additional information, refer to the Installation
Instructions in the Zoneline Owner's Manual.
10. Replace and secure all front covers. Do not pinch
any wires.
