7.

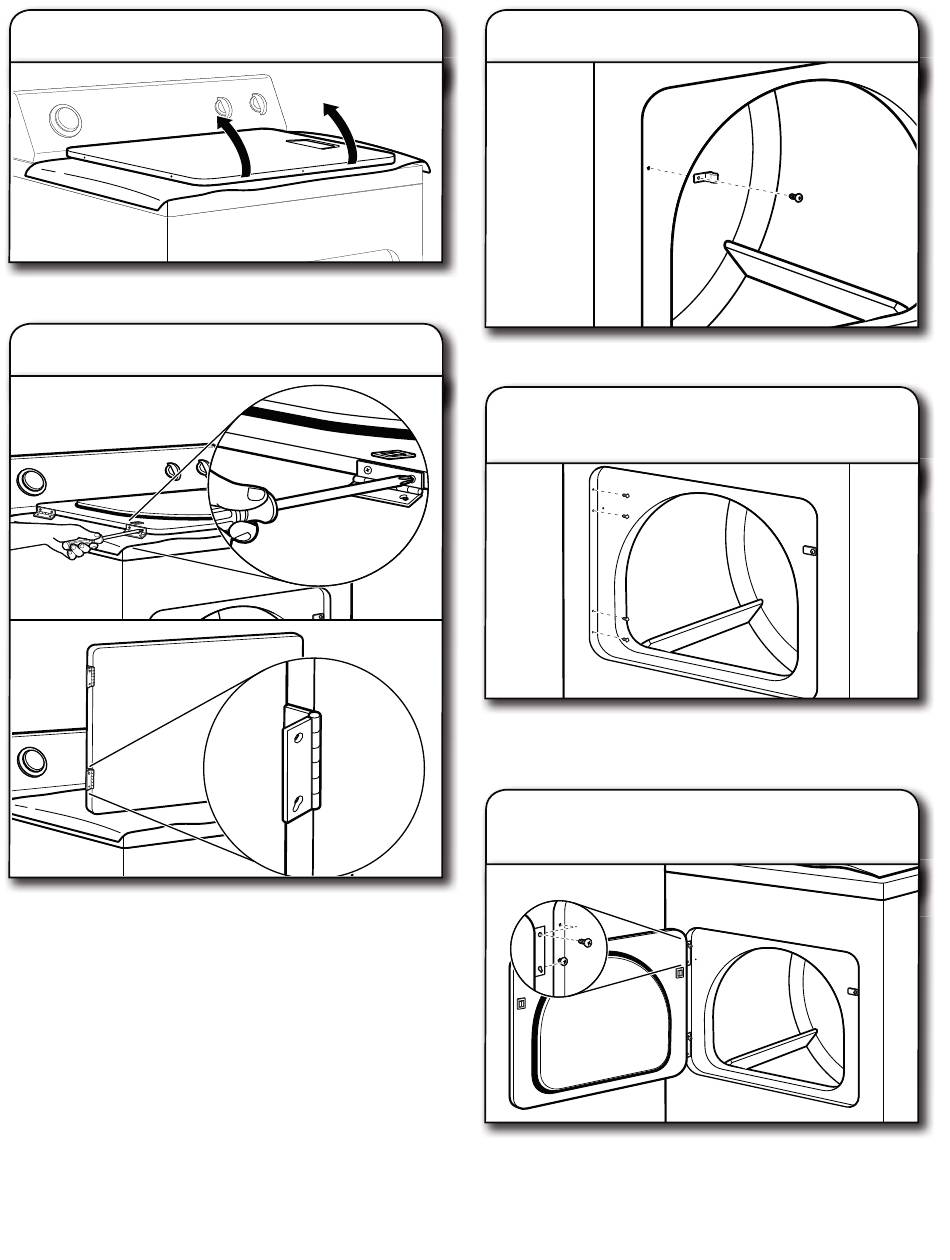

Flip door over
Flip door over so handle side is down.
8.
Attach door hinges
Reattach door hinges to dryer door so that the larger hole is
at the bottom of the hinge.
9.
Remove door strike
Remove door strike from dryer cabinet and set aside.
10.
Remove and transfer
hinge hole plugs
Use a small, flat-blade screwdriver to gently remove 4 hinge
hole plugs on left side of dryer cabinet. Transfer plugs into
hinge holes on opposite side of dryer cabinet.
11.
Insert screws in hinge holes on
dryer cabinet
NOTE: Two people maybe needed to reinstall door.
Insert screws into the bottom holes on left side of dryer
cabinet. Tighten screws halfway. Position door so large end
of door hinge slot is over screws. Slide door up so screws
are in bottom of slots. Tighten screws. Insert and tighten top
screws in hinges.
