V 1.50

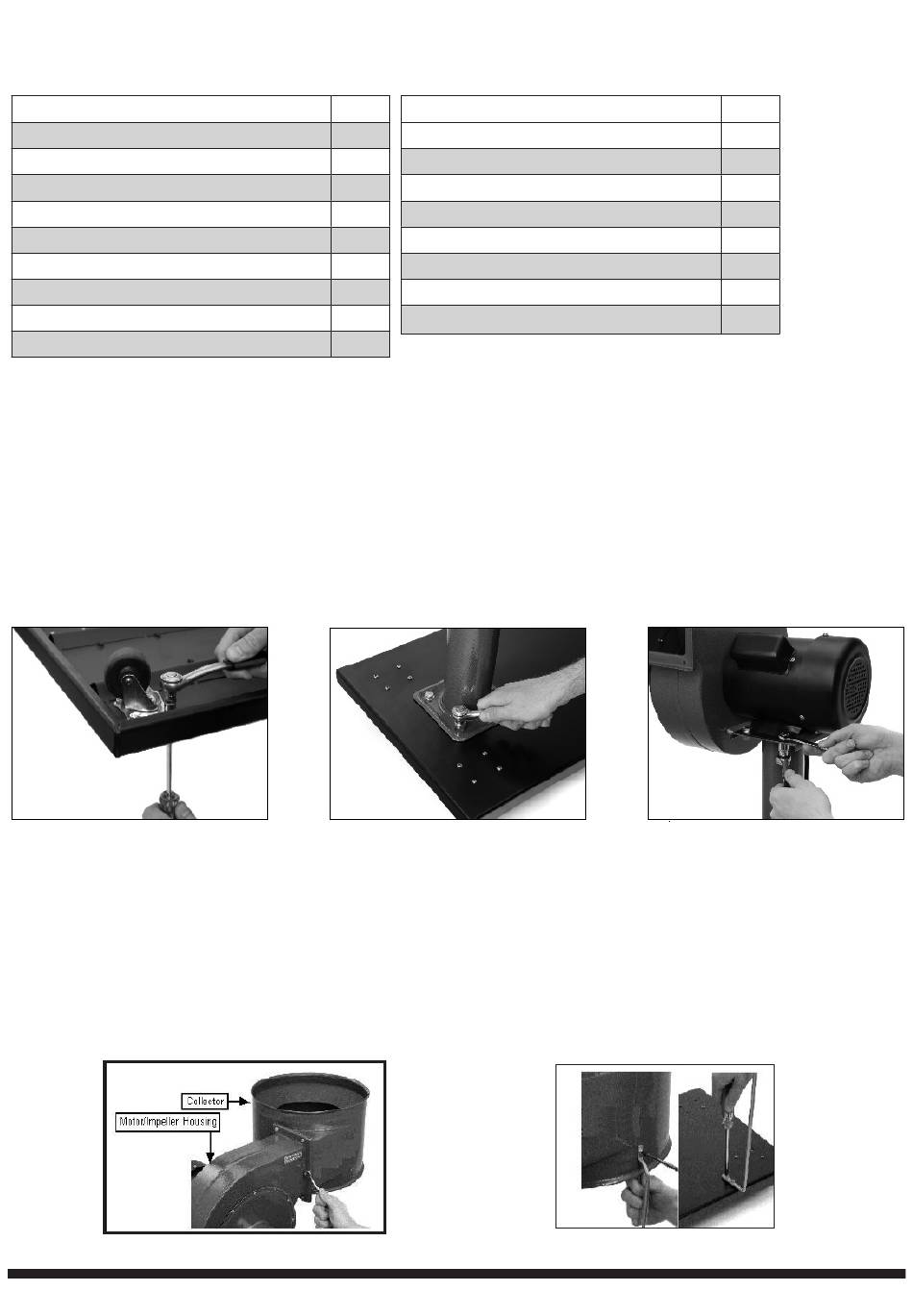

ASSEMBLY
Components and Hardware Needed
Motor/Impeller housing
Collector
Base
Rubber gasket
Swivel casters
Collection bag support rods
Upper bag support rod
Impeller housing support
Hex bolts M6-1 x 15
TO ASSEMBLE THE DUST COLLECTOR BASE:
1. Make sure the dust collector motor is unplugged!
2. Install the swivel casters onto the base with sixteen M5-.8 x 10 Phillips head screws, nuts, and flat washers
(see Figure 2).
3. Place the base right side up and install the collector support (Figure 3) using four M8-1.25 x15 hex bolts and
four flat washers.
4. Place the motor/impeller housing onto the collector support plate and fasten with four M8-1.25 x 15 hex
bolts, four hex nuts, and eight flat washers as shown in Figure 4.
Figure 2. Installing casters
5. Install the rubber gasket onto the motor/impeller housing opening.
6. Install the collector onto the motor/impeller housing with six M6-1x15 hex bolts, as shown in Figure 5.
7. Secure the two collection bag support rods to the base plate with four M5-.8x15 Phillip head screws and
four flat washers, and to the collector using two M5-.8 x 15 Phillip head screws, two flat washers, and two
hex nuts as shown in Figure 6.
8. Install the upper bag support onto the collector, as shown in Figure 7, using two M4-.7x 8 Phillips
head screws.
Figure 5. Installing collector onto motor/impeller housing.
6
1 HP Dust Collector
Qty
Components and Hardware Needed
1
Hex bolts M8-1.25 x 15
1
1
Hex nuts M8-1.25
1
Flat washers 5mm
4
Flat washers 8mm
2
Phillips head screws M5-.8 x 15
1
Phillips head screws M5-.8 x 10
1
Phillips head screws M4-.7 x 8
6
Figure 3. Installing collector support
Hex nuts M5-.8
Figure 4. Installing the motor/impeller
Figure 6. Securing collection bag support rods.
For technical questions call: 1-800-665-8685
8353237
Qty
8
18
4
22
12
6
16
2
housing on collector support
