Installation Instructions – HBE-HBLED Doorframe
2. After door frame is latched onto the fixture, use the
2 included screws to secure it to the housing. Use a
1/4" hex driver or flat head screw driver to thread each
screw through the holes in the door frame latch rail
next to the latches (see Figure 2).
3. You may need to lift up on the door frame while
fastening each screw to ensure clearance between the
screw and the housing lip (see Figure 3).
4. Tighten each screw until the head washer is flush
against the door frame rail. Door frame installation is
complete.
2
EATON
IB519042EN Installation Instructions

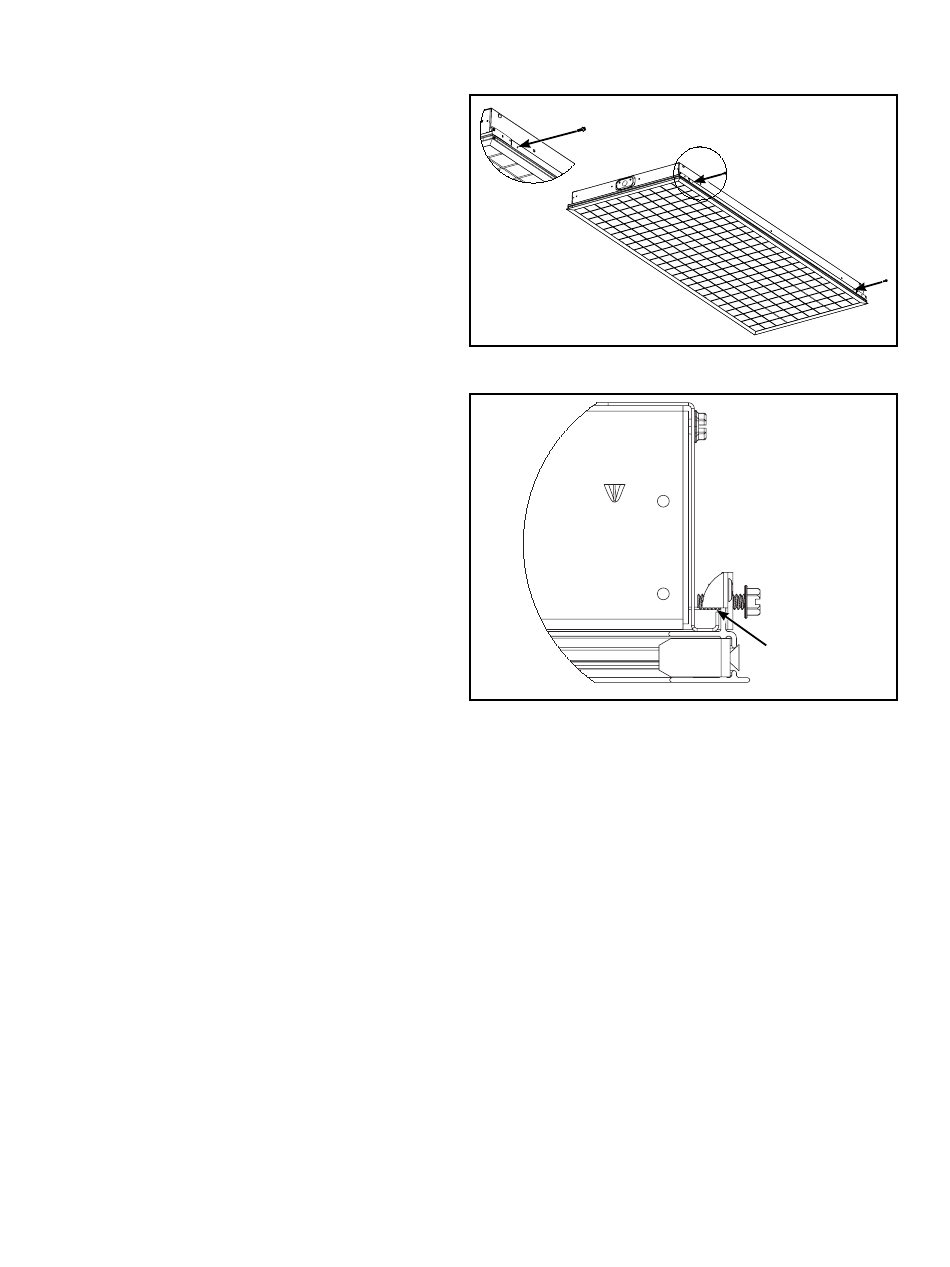

Figure 2.
Figure 3.
Ensure clearance
while fastening
screws
