DNS-0680 Rev. C
ITEM
DESCRIPTION
1
Complet heat exchanger (combustion chamber included) B30786-01
2
Top heat exchanger
3
Combustion chamber (item 5 included)
4
Hexagonal flange nut 3/8-16NC brass
5
Gasket, heat exchanger
6
Bottom heat exchanger
7
Gasket panel, peep hole
8
Front baffle
9
Top baffle
10
Division panel
11
Blower slide support
12
Floor
13
Left side panel ass'y
14
Left side panel insulation
15
Rear panel ass'y
16
Rear panel insulation
17
Hexagonal flange nut 3/8-16NC brass
18
Breech plate
19
Gasket, access cover
20
Gasket, access cover
21
Right side panel ass'y
22
Right side panel insulation
23
Gasket panel, peep hole
24
Gasket, burner
25
Gasket, breech plate
26
Front panel ass'y (labels included)
27
Front panel insulation
28
Blower door ass'y (labels included)
29
Door handle
30
Washer 3/8" AA zinc
31
Hexagonal nut 3/8-16NC brass
32A 6" breech plate (chimney application)
32B 4" breech plate (direct vent application)

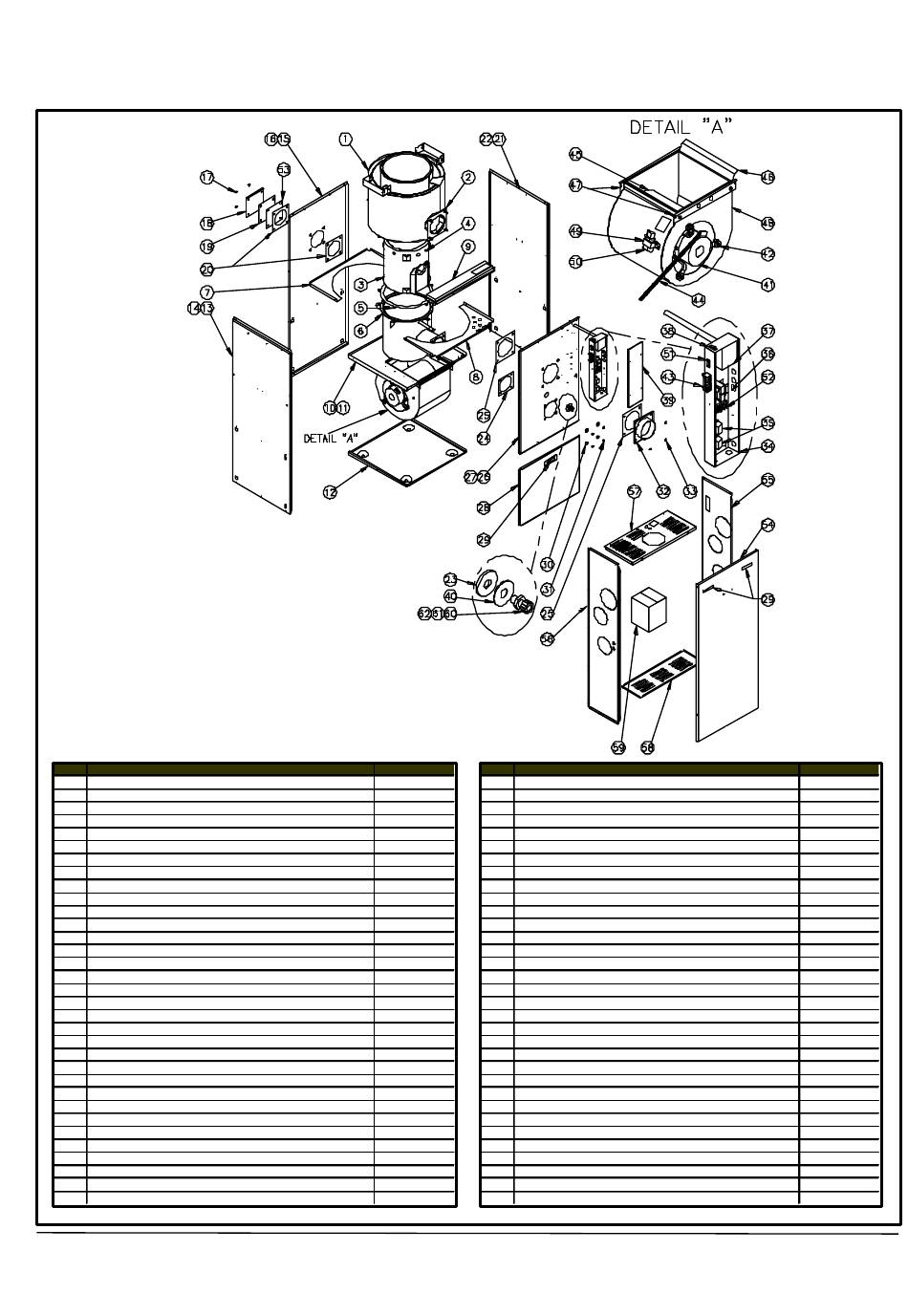

PARTS LIST
Model : NOUF160B18B Serial # > 264 000
NUMBER
B30597
B30584
F07O001
B30532
B30787
B30619
B30618
B30639
B30627
B30625
B30628
B30653-02
B30658
B30652
B30659
F07O001
B30487
B30415-01
B30415-02
B30653-01
B30658
B30753
B30534
B30589-01
B30781-01
B30779
B30651
Z99F050
F06F005
F07F024
B30646
B30647
ITEM
DESCRIPTION
33
Hexagonal flange nut 3/8-16NC brass
34
Electrical box (box only)
35
Relay SPDT 24VAC
36
Transformer 120/24 VAC / 40 VA
37
Fan limit control
38
Rocker switch SPST (constant blower operation)
39
Electrical box cover (without cosmetic)
40
Washer, peep hole
41
.85 HP direct drive motor (with legs)
42
Motor mount ass'y (legs, band and screws)
43
Terminal strip, 6 positions
44
Blower electrical kit
45
Blower wheel 12 X 10
46
Sealing strip
47
Blower side rails
48A Blower 12 X 10 (housing and wheel)
48B Blower ass'y (items 41, 48A, 49 and 50 included)
49
Capacitor holder
50
10 MF capacitor
51
Rocker switch SPST (main power)
52
Terminal strip, 6 positions
53
Gasket, sealing plate
54
Front door, vestibule
55
Right panel, vestibule
56
Left panel, vestibule
57
Top panel, vestibule
58
Bottom panel, vestibule
59
Draft regulator
60A Peep hole kit
60B Overfire pressure test kit
61
Gasket, glass
62
Glass, neoceram
NUMBER
F07O001
B30514
L01H009
L01F009
R02I005
L07F003
B40085
B30752
L06K001
B01889
L05F011
B30530
Z01L003
B01291-01
B30626
Z01I008
B02167-01
B01024
L01I003
L07F016
A00336
B30533
B40295
B30632
B30633
B30732
B30728
Z06F001
K30011
K30012
B30055
B30041-01
35
