DNS-0581 Rev. C
ITEM DESCRIPTION
1
Complet heat exchanger (combustion chamber included)
2
Top heat exchanger
3
Combustion chamber (item 4 included)
4
Gasket, heat exchanger
5
Bottom heat exchanger
6
Hexagonal flange nut 3/8-16NC brass
7
Gasket panel, peep hole
8
Division panel
9
Plenum divider
10
Floor
11
Left side panel ass'y
12
Left side panel insulation
13
Top rear panel
14
Blower door ass'y (labels included)
15
Air filter drawer
16
20 X 20 X1 paper filter
17
Right side panel ass'y
18
Right side panel insulation
19
Right filter support
20
Left filter support
21
Front baffle
22
Front panel ass'y (labels included)
23
Front panel insulation
24
Washer 3/8" AA zinc
25
Hexagonal nut 3/8-16NC brass
26
Washer, peep hole
27
Hexagonal flange nut 3/8-16NC brass
28A 5" breech plate (chimney application)
28B 3" breech plate (direct vent application)
29
Gasket, breech plate

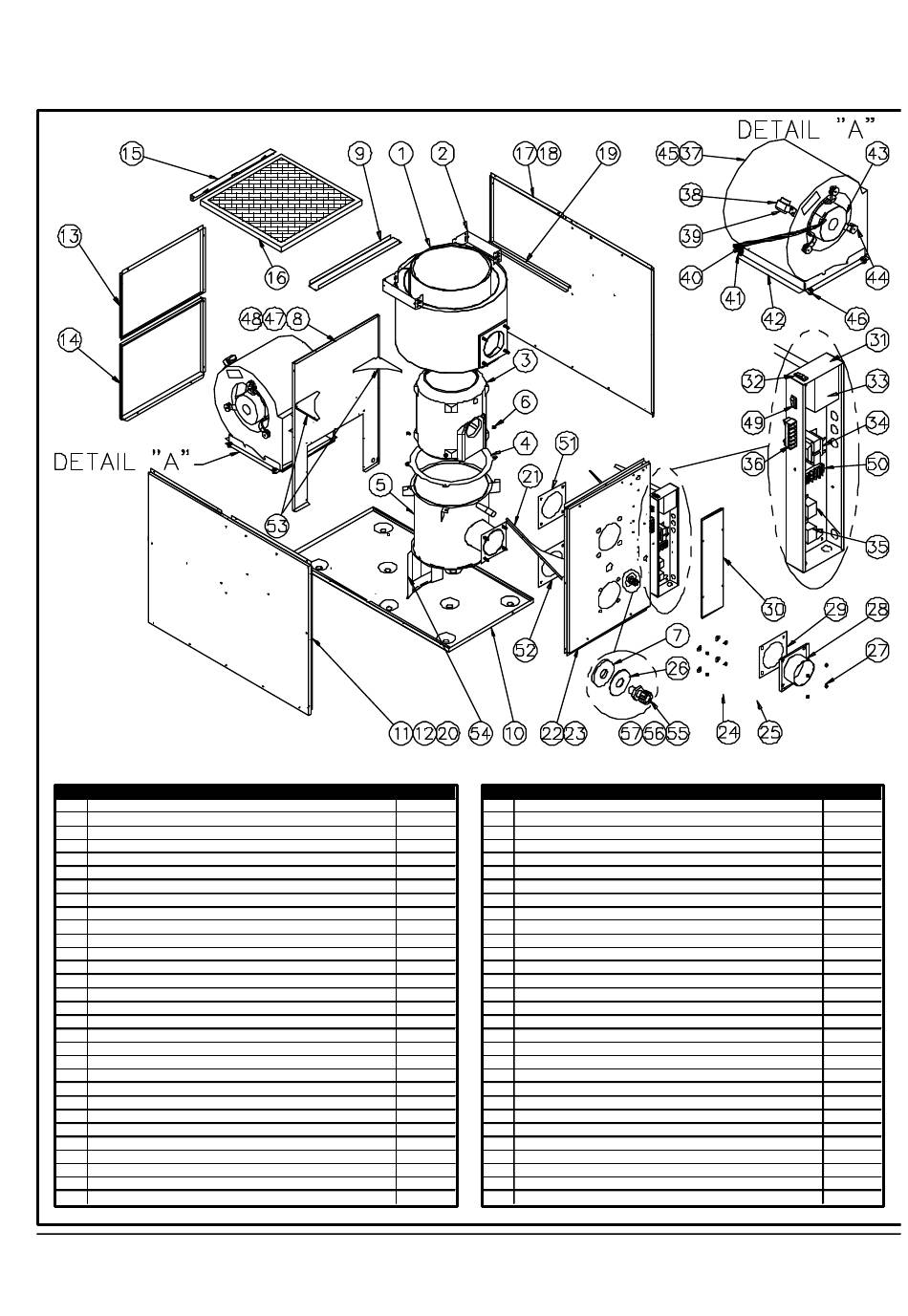

PARTS LIST
Model : OLB5-F059-085-3 , Serial # > 264 000
NUMBER
B30756-01
B30465-01
B30414
B30517
B30757
F07O001
B30753
B30477
B30478
B30472
B30504-02
B30493-02
B30506
B30512
B30507
Z04F004
B30504-01
B30493-01
B30479-01
B30479-02
B30483
B30767-01
B30761
F06F005
F07F024
B30752
F07O001
B30459
B30515
B30415-02
ITEM DESCRIPTION
30
Electrical box cover (without cosmetic)
31
Electrical box (box only)
32
Rocker switch SPST (constant blower operation)
33
Fan limit control
34
Transformer 120/24 VAC / 40 VA
35
Relay SPDT 24VAC
36
Terminal strip, 6 positions
37
Blower weel 10 X 10
38
Capacitor holder
39
5 MF capacitor
40
Blower electrical kit
41
Screw cable tie
42
Blower support bracket
43
1/3 HP direct drive motor (complete with legs)
44
Motor mount ass'y (legs, band and screws)
45A Blower 10 X 10 (housing and wheel)
45B Blower ass'y (items 38, 39, 43 and 45 included)
46
Rubber grommet #19
47
Sealing strip
48
Strip
49
Rocker switch SPST (main power)
50
Terminal strip, 6 positions
51
Gasket, breech plate
52
Gasket, burner
53
Rear baffle
54
Front baffle
55A Peep hole kit
55B Overfire pressure test kit
Gasket, glass
56
Glass, neoceram
57
NUMBER
B40085
B30514
L07F003
R02I005
K03040
L01H009
L05F011
Z01L002
B01024
L01I001
B30057
F11F007
B30473
B01890-01
B01888
Z01I004
B01405-03
Z01F006
B01291-01
B30188-02
L07F016
A00336
B30415-02
B30534
B30490
B30480
K30011
K30012
B30055
B30041-01
33
