Quick Start Guide

(1) Turn on via pressurization or pressing and holding the red, manual alarm button.
(2) Enter TIC mode via a long press of either of the green Reset buttons.
(3) Toggle palettes via Short presses.
(4) Exit TIC mode via Long press.
3

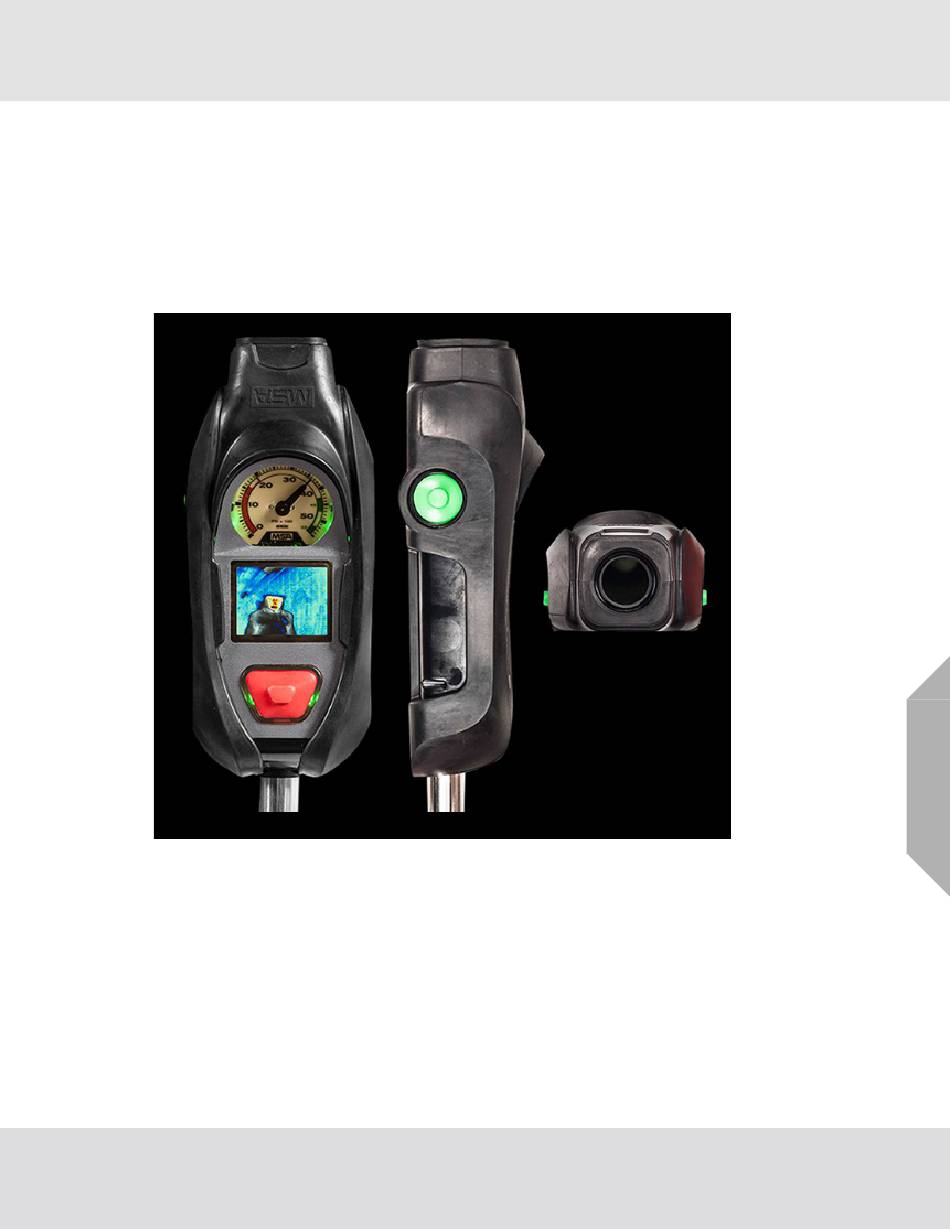

Description

All G1 SCBA with Integrated TIC devices are
• equipped with a 206 x 156 vanadium oxide pixel array,
• configurable via a desktop PC using the MSA Fire Service accountability software,
• equipped with a Control Module hose that is 2" longer than a non-TIC Control Module hose to
provide greater range of motion and flexibility for camera use
• and store up to 5 total, user-selectable palettes, including the default "white-hot".
