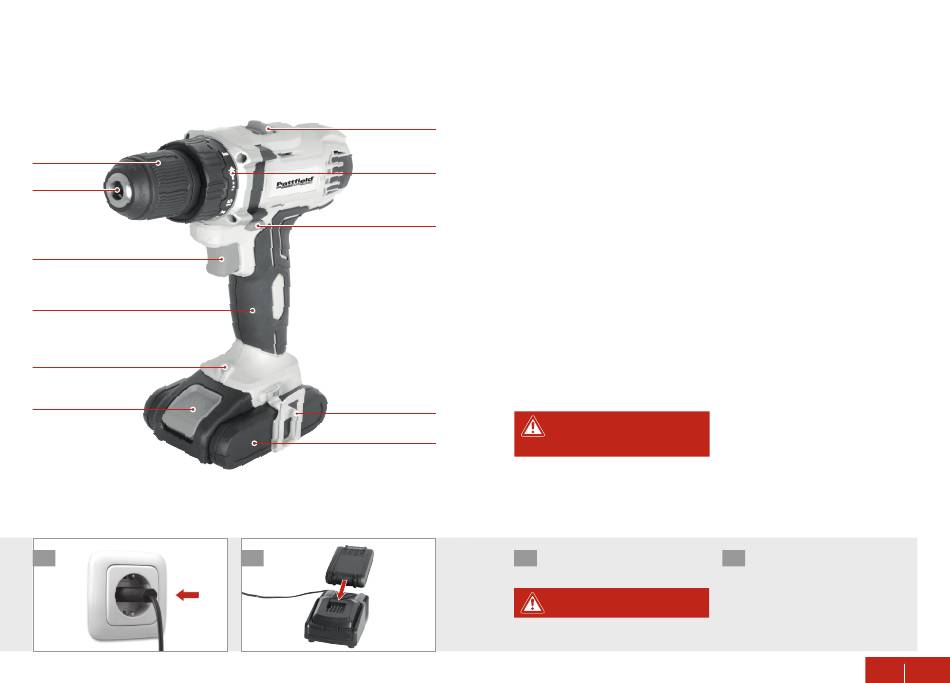

Product overview

1 Chuck ring
2 Chuck
3 On / Off switch
4 Soft grip
5
LED light
6 Battery release switch
7 Battery
8 Belt clip
9 Rotation direction switch
10 Torque ring
11 Gear selector
9

Using the tool

1. To switch on the tool, press the on / off
switch 3. The more the on / off
pressed, the faster the drill driver rotates.
2. Make sure your workpiece can not slip.
Start working while holding the tool firm-
ly.
3. To switch off the tool, release the on / off
switch 3.
8
Warning! If the tool is not in use,
centre the rotation direction switch
7
in order to lock the tool.
CHARGE BATTERY
1 Plug the charger into a suitable wall
socket.
Caution! Only use the provided
charger to charge the battery.

Intended Use

The tool is intended for driving in and loos-
ening screws as well as for drilling in wood,
metal and plastic.
The tool is not intended for commercial use.
Any other use or modification to the tool is
considered as improper use and could cause
considerable dangers.

Overload protection

When the load is too high or the allowable
switch 3 is battery temperature is exceeded, the mo-
tor comes to a stop. Relieve the load on the
machine immediately and allow cooling for
approx. 30 seconds at the highest no-load
speed.
2 Slide the battery onto the charger and
check its LED:
Red: Charging
Green: Battery is fully charged
Flashing Red: Battery is defective
Flashing Green: Battery is too hot/ cold
