EXTENSION input
A - Female XLR balanced socket Extension left
B - Female XLR balanced socket Extension right.
HYBRID input / output
C - Cinch socket Hybrid return.
D - Cinch socket Hybrid send.
MIX ANTENNA output
E - Cinch socket analog MIX Antenna out right.
F - Cinch socket analog MIX Antenna out left
Power supply section.
G - Sub D 9 female to connect external power supply.
To avoid damage use only the original power supply from RAMI.
Headphone section
H - Headphone socket, available also on front panel 23.
Digital output
I - 3 pins XLR AES/EBU digital out 48KHz / 24 bits
PGM2/REC output
J - 3 pins balanced XLR left PGM2/REC output.
K - 3 pins balanced XLR right PGM2/REC output.
ANTENNA output
L - 3 pins balanced XLR left Antenna output.
M - 3 pins balanced XLR right Antenna output.
CONTROL ROOM output
N - Cinch CONTROL ROOM left output.
O - Cinch CONTROL ROOM right output.
STUDIO output
P - Cinch Studio right output, supports talkbacks from MASTER MIC.
Q - Cinch Studio left output, supports talkbacks from MASTER MIC.
R - Cinch Studio left output, without talkbacks from MASTER MIC.
S - Cinch Studio right output, without talkbacks from MASTER MIC.
RAmi

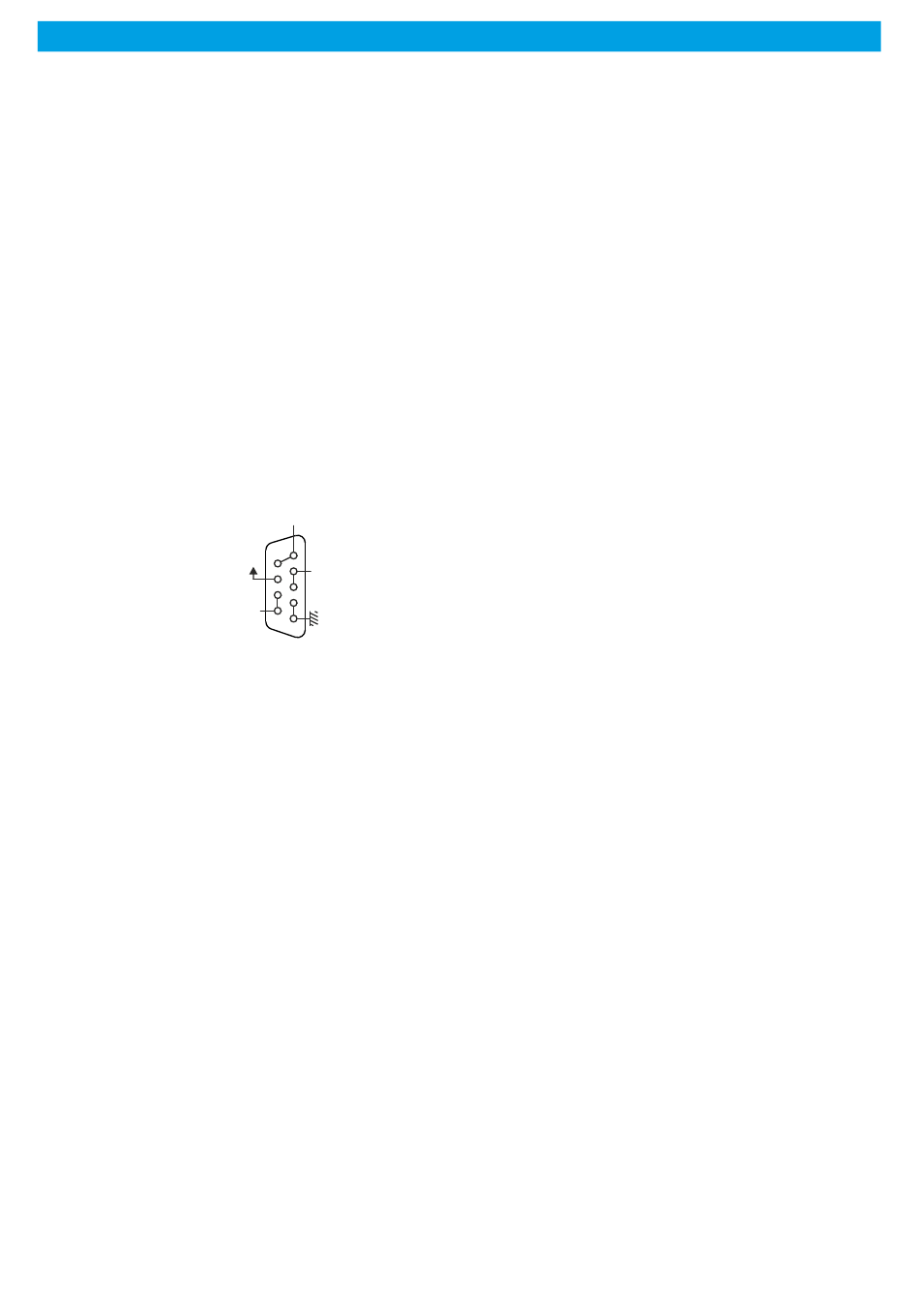

OUTPUT MODULE - REAR PANEL
- 15V
5
9
PHANTOM
+15V
0V
6
1
Sub-D 9 pts Female plug
