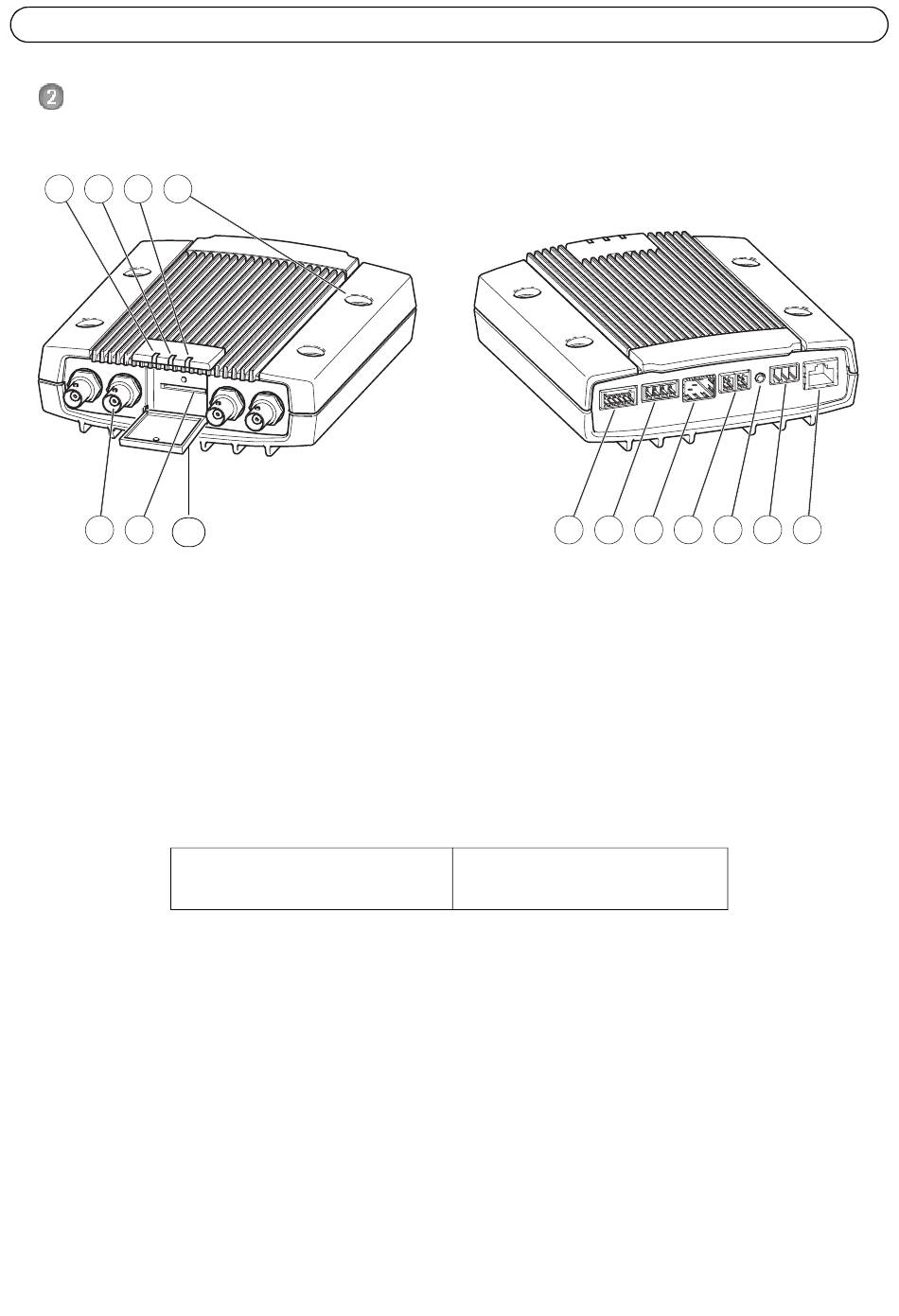

Hardware overview
Front view
1 2 3 4
5 6
14
1. LED indicator power
2. LED indicator status
3. LED indicator network
4. Mounting holes
5. Video input connectors
6. SD memory card slot
7. I/O connector
Dimensions
AXIS Q7424-R
AXIS Q7424-R Installation Guide
Rear view
7 8 9
8. Audio connectors
9. SFP connector
10. RS-485/RS-422 connector
11. Control button
12. Power connector
13. Network connector (PoE)
14. SD Memory card lid
HxWxD = 45x135x167mm
Weight = 0.8kg (1.7 lb.)
10 1 1 12 13
