5 Commissioning

Project transfer to the operating unit

Connecting operating unit and PC

5.2 Project transfer to the operating unit
5.2.1 Connecting operating unit and PC
(
Stop!
Only connect PC and operating unit when the units are switched off!

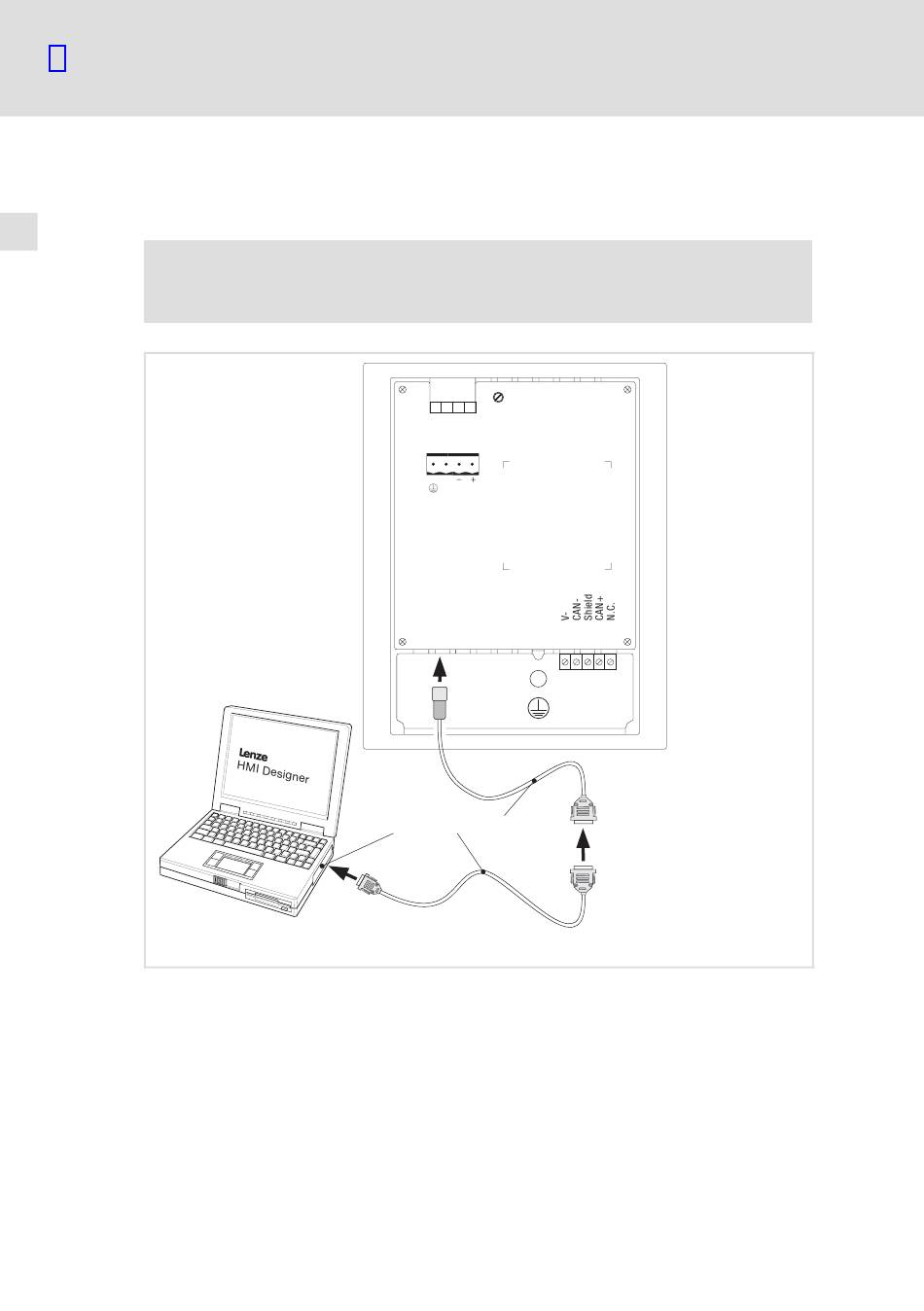

Fig. 5−1 Connecting operating unit and PC
1. Plug the programming adapter EPZ−H111 0 onto the ASP8 interface.
2. Connect download cable EPZ−H110 1 to programming adapter
EPZ−H111 0.
3. Plug download cable EPZ−H110 1 onto COM1 or COMx 2 at PC.
60
LCD adj.
INPUT VOLTAGE: 18-32VDC 15W
FUSE 800mA
4 3 2 1
N.C. 24VDC
ASP8
1 2 3 4 5
2 1 0
l
h315_005
EDBPM−H315 DE/EN/FR 6.0
