Mechanical installation

3.1

Labelling of operating unit

Different labels can be attached to the keypad.
The labels are only accessible when the keypad is not built in.
ƒ
Ensure to have the labels ready for use before inserting the keypad into
ƒ
the mounting cut−out.
0

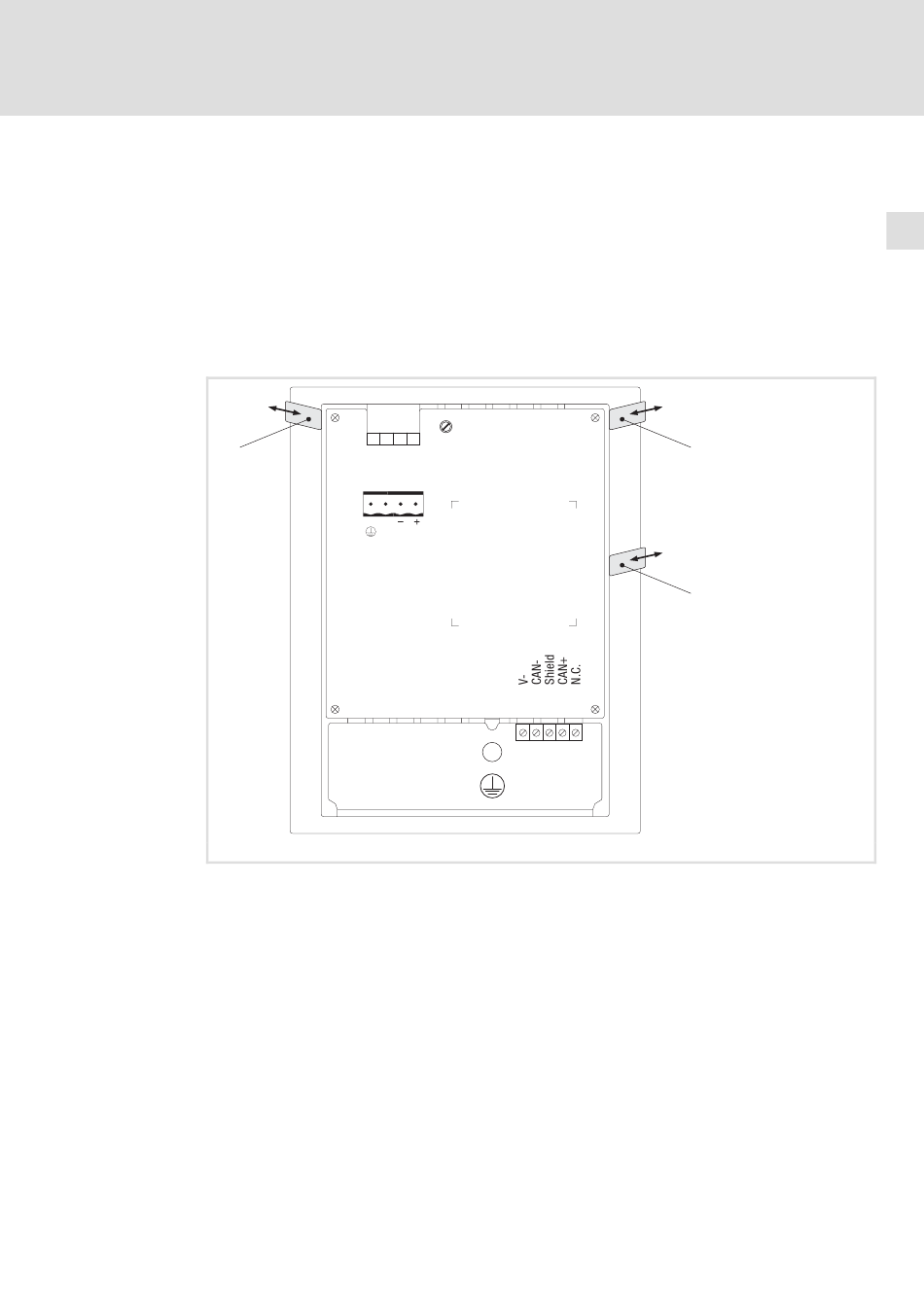

Fig. 3−1 Keypad labelling
0
1
2
For labelling, proceed as follows:
1. Pull label 0, 1, or 2 out of the slot for labelling.
2. After the new label has been written, push it back into the slot.
EDBPM−H315 DE/EN/FR 6.0
