WARNING!
LCM port is for remote control connection only.
Please make sure the connection is correct. (CAN cable to CAN1 / CAN2
port , Remote cable to LCM port)
If CAN cable is connected to LCM port, or vice versa, the inverter will be
damaged.

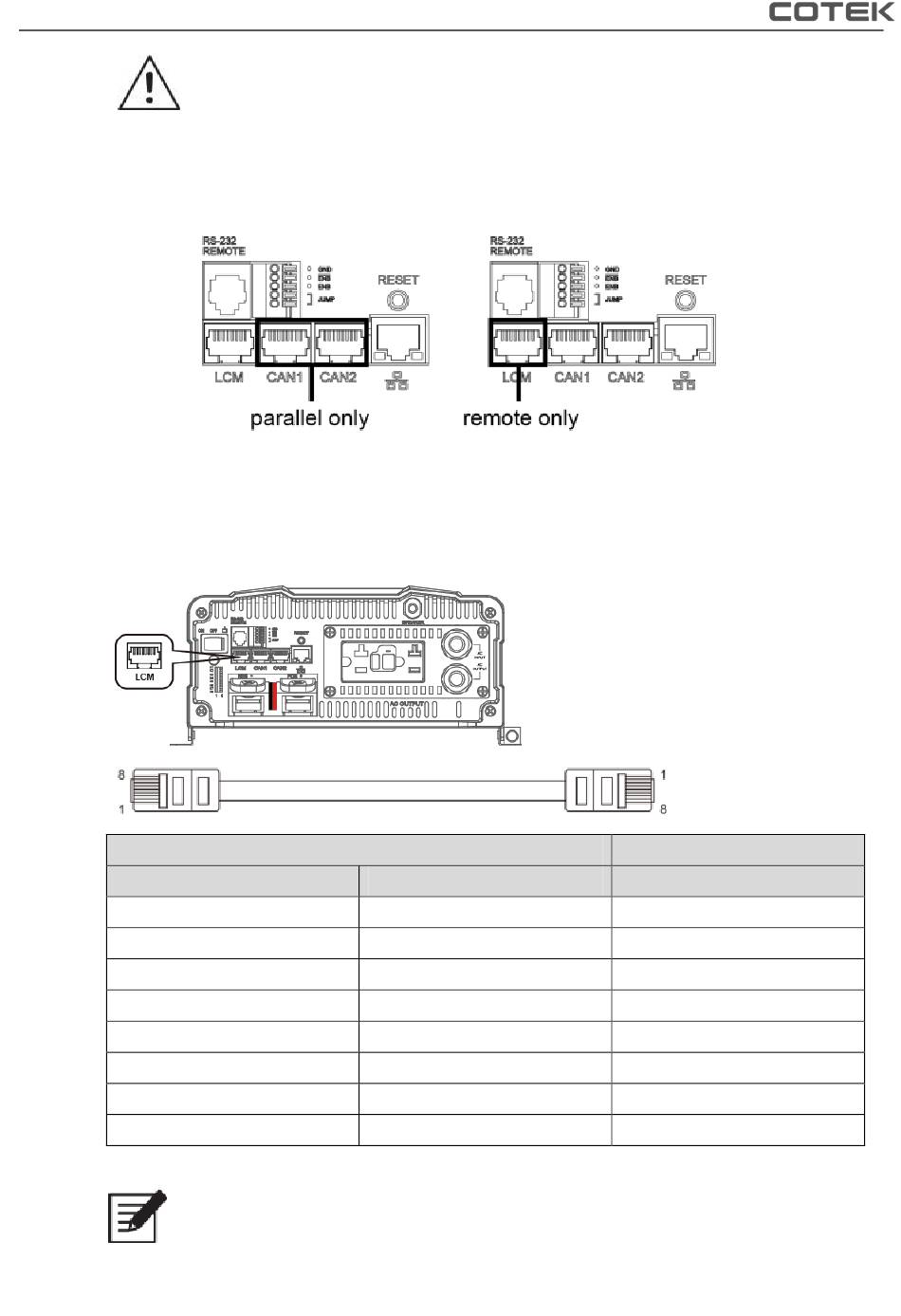

3-13. LCM Port

Connection for LCD remote control panel, you can set and display the SD-series
operation status.
PIN Num.
1
2
3
4
5
6
7
8
Note
The cables should be as short as possible (less than 32.8 feet / 10 meters) so
that they can handle the signal.
LCD Remote Control Panel
Signal Description
Table 11. PIN number and signal description for LCD remote control
Figure 10. LCM port
CANH
CANL
PON
VCC-
VCC+
DIS
5VS-
5VS+
Figure 11. LCM cable
SD Series
PIN Num.
1
2
3
4
5
6
7
8
