5

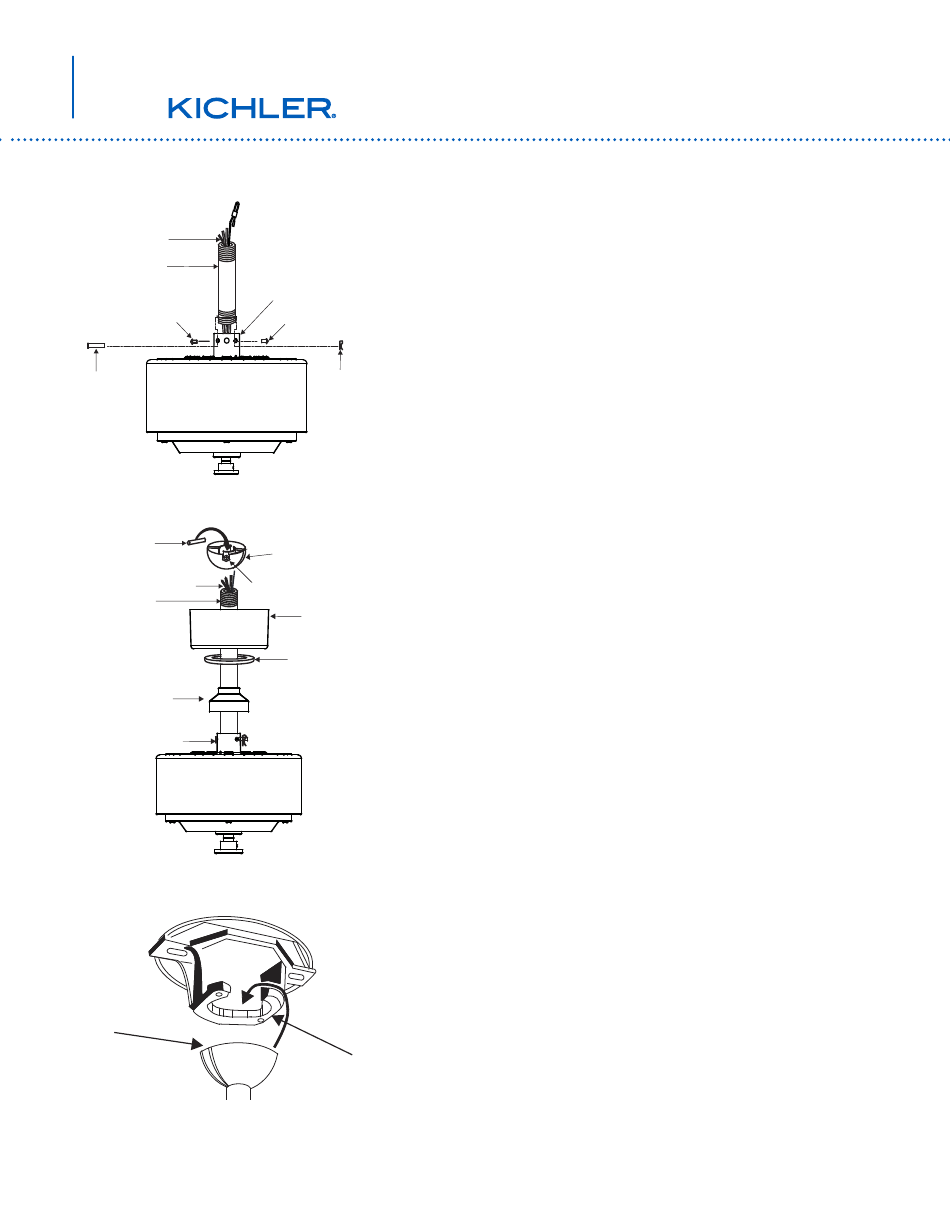

Supply wires
& Safety cable
Downrod
Set screws
Hitch
pin
Fig. 9
Cross pin
Supply wires
& Safety cable
Downrod
Coupling
cover
Coupling
Fig. 10
Registration slot
Fig. 11
Coupling
Set screws
Retaining
clip
Hanger ball
Set screw
Canopy
Canopy cover
Check tab
Step 7. Loosen the two setscrews and remove the
hitch pin and retaining clip from the coupling on top
of the motor assembly. (Fig. 9)
Step 8. Carefully route the electrical supply
wires and safety cable exiting the top of the fan
motor assembly through the downrod. Thread the
downrod into the coupling until the hitch pin holes
are aligned. (Fig. 9)
Next, replace the hitch pin and retaining clip.
Tighten both setscrews. (Fig. 9)
Step 9. Slip the coupling cover, canopy cover and
canopy onto the downrod. (Fig. 10)
Thread the hanger ball onto the downrod, insert the
cross pin through the downrod and tighten. Now
tighten the set screw. (Fig. 10)
Step 10. Lift the motor assembly into position and
place the hanger ball into the ceiling mounting
bracket.
Rotate the entire assembly until the "Check Tab"
has dropped into the "Registration Slot" and seats
firmly. (Fig. 11)
The entire motor assembly should not rotate (left or
right) when seated properly.
WARNING:
Failure to reattach the cross pin and
seat the "Check Tab" can cause the fan to fall from
the ceiling during operation. Take special care to
make sure this pin is reattached.
