Support - Connect by optical (PS4™ systems only)
Support - Connect by optical (PS4™ and PS4™ Pro only)
Please note that the optical connection method is available for compatible PS4
For PS4™ models that do not feature an optical output source (including CUH 2016A/B), please
™
For PS4 models that do not feature an optical output source, for connections, please refer to Connect by USB
on page 3.
Make sure that the PS4™ system is switched OFF. Insert the micro USB cable into the X-Rocker DAC
converter and the other end into one of the front USB ports on the PS4™ system.

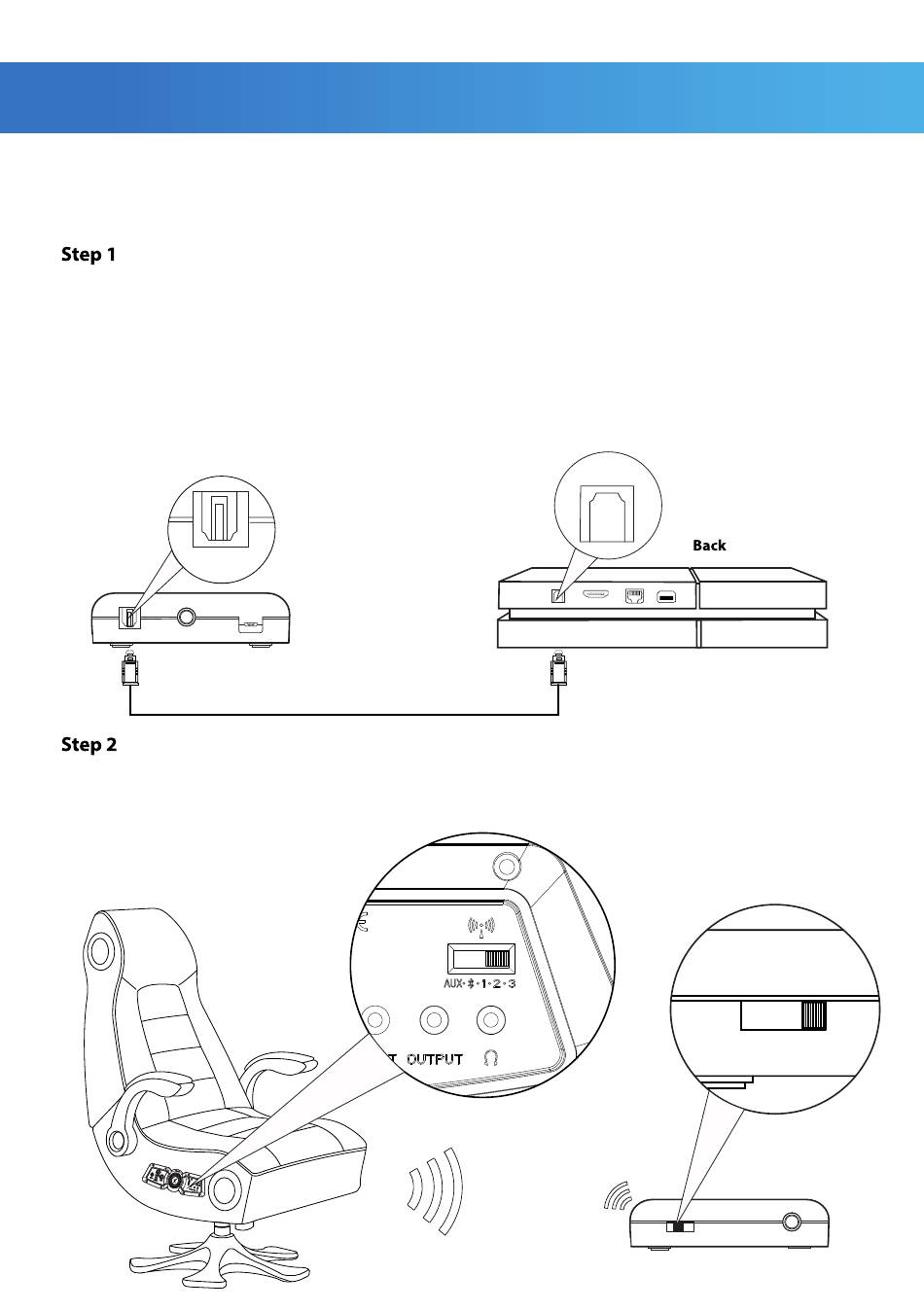

Remove the clear plastic covers from both ends of the optical cable.
Input one end of the optical cable into the X-Rocker Wireless DAC (Slot titled SPDIF) and the other
into the Optical SPDIF connector on the PS4™ system.
SPDIF
INPUT
SPDIF
Turn the PS4™ system back on. Select one of the wireless bands (1,2,3) on the wireless DAC
and then switch to the corresponding band on the chair.
refer to Connect by USB on page 8.
INPUT
USB 5V
™
and PS4
OPTICAL
USB 5V
OFF · 1 · 2 · 3
™
Pro systems only.
OFF · 1 · 2 · 3
OUTPUT
