INSTALL THE RANGEHOOD (CONTINUED)
9. Remove the grease filters from the unit and set aside. The
grease filters are removed by pressing the handle in front of the
filter (FIGURE 6). When replacing, make sure that the filters are
properly positioned with the handles on top and visible.

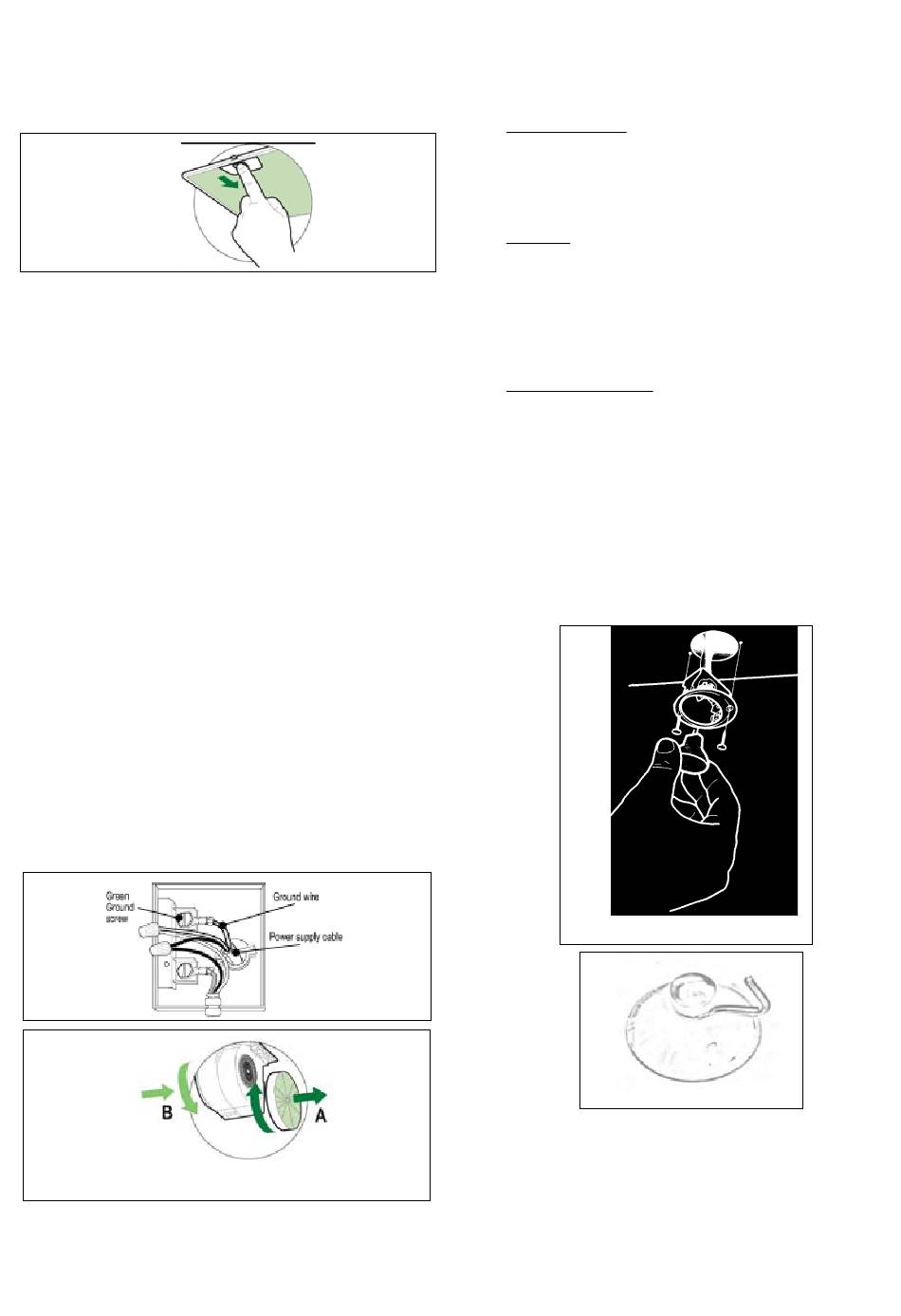

FIGURE 6
10. Remove the cover from the field wiring compartment located
inside the hood above the grease filters. Remove the wiring
electrical knockout using a flat-blade screwdriver. Feed the Power
Supply Cable through the electrical knockout. The 2 knockouts
are located 6 9/16" from the center of the hood & 1/2" from the
back edge. The knockouts are on the top and back of the
rangehood as seen on Page 4 (TOP DIMENSIONS)
11. Connect the Power Supply Cable to the rangehood. Attach
the White lead of the power supply to the White lead of the
rangehood with a twist-on type wire connector. Attach the Black
lead of the power supply to the Black lead of the rangehood
with a twist-on type wire connector. Connect the Green (Green
and Yellow) ground wire under the Green grounding screw. See
FIGURE 7 for guidance)
12. Replace the field wiring compartment cover and the grease
filters.
13. For ducted installations, the rectangular air grate on top of
the hood must be removed by removing the screws.
The damper must be attached to the exhaust opening on top
of the hood. Connect the ductwork and seal all connections
with duct tape.
13a. FOR DUCTLESS INSTALLATIONS
Do not use the DAMPER (E In FIGURE 1) for ductless
installations. Simply install the Charcoal Filter Kit - an extra
accessory that you can purchase thru your dealer.
Attach the CHARCOAL FILTERS to both sides of the blower (as
indicated in FIGURE 8). Install the grease filters.
FIGURE 7
14. Turn the power supply on. Turn on blower and light. If
the rangehood does not operate, check that the circuit breaker
is not tripped or the house fuse blown. If the unit still does
not operate, disconnect the power supply and check that the
wiring connections have been made properly.
FIGURE 8
USE AND CARE INFORMATION
This rangehood system is designed to remove smoke,
cooking vapors and odors from the cooktop area.
For Best Results
Start the rangehood several minutes before cooking to
develop proper airflow. Allow the unit to operate for several
minutes after cooking is complete to clear all smoke and
odors from the kitchen.
Cleaning
The metal grease filters should be cleaned frequently
in hot detergent solution or washed in the dishwasher.
Stainless steel cleaner should be used on stainless
rangehoods. Abrasives and scouring agents can scratch
stainless steel finishes and should not be used to clean
finished surfaces.
Replacing the Lamps
Before attempting to replace the lamps, make sure that
the light switch is turned off. Remove the 2 screws (as
indicated in FIGURE 9) that hold the light support and
gently pull the support down from the hood. Remove the
lamp from the light support and replace with new lamp.
Replace the light support and fix it into place with the 2
screws.
An alternative method to replace the lamps is to use a
1 1/4" suction cup (FIGURE 10). Attach the suction cup
to the bulb and pull firmly down on the bulb and replace
with a new lamp.
FIGURE 9
FIGURE 10
