NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
C) FUEL FILTER IN FUEL TANK
Clean twice per heating season or as needed
1) Pull Fuel Line off from Fuel Filter neck.
2) Turn Fuel Filter 90˚ to counter clockwise and pull to remove.
3) Remove Fuel Cap and Fuel Cap Filter.
4) Wash Filters with clean kerosene and replace in tank.
5) Attach Fuel Line to Fuel Filter neck.
D) BURNER FULL ASSEMBLY REMOVAL
1) Remove Back Cover(See Page7)
2) Disconnect Cooling M/T Wire from Control PCB.
3) Remove Fuel Line from Fuel Filter.
4) Remove Power Cord from U-shaped Hole in the shell.
5) Remove 3nuts with 8mm socket wrench and remove
Burner Full Assembly from Shell Insulator.
E) PHOTOCELL
Clean Photocell annually or as needed.
1) Remove Back Cover(See Page7)
2) Disconnect Photocell Wire from Control PCB.
3) Remove Photocell from Photocell Bracket.
4) Push Photocell Wire to arrow direction.
5) Clean Photocell Lens with cotton swab.
If Photocell Lens is damaged, Replace new one.
6) Replace Photocell to Bracket.
7) Replace Photocell Wire and Back Cover.

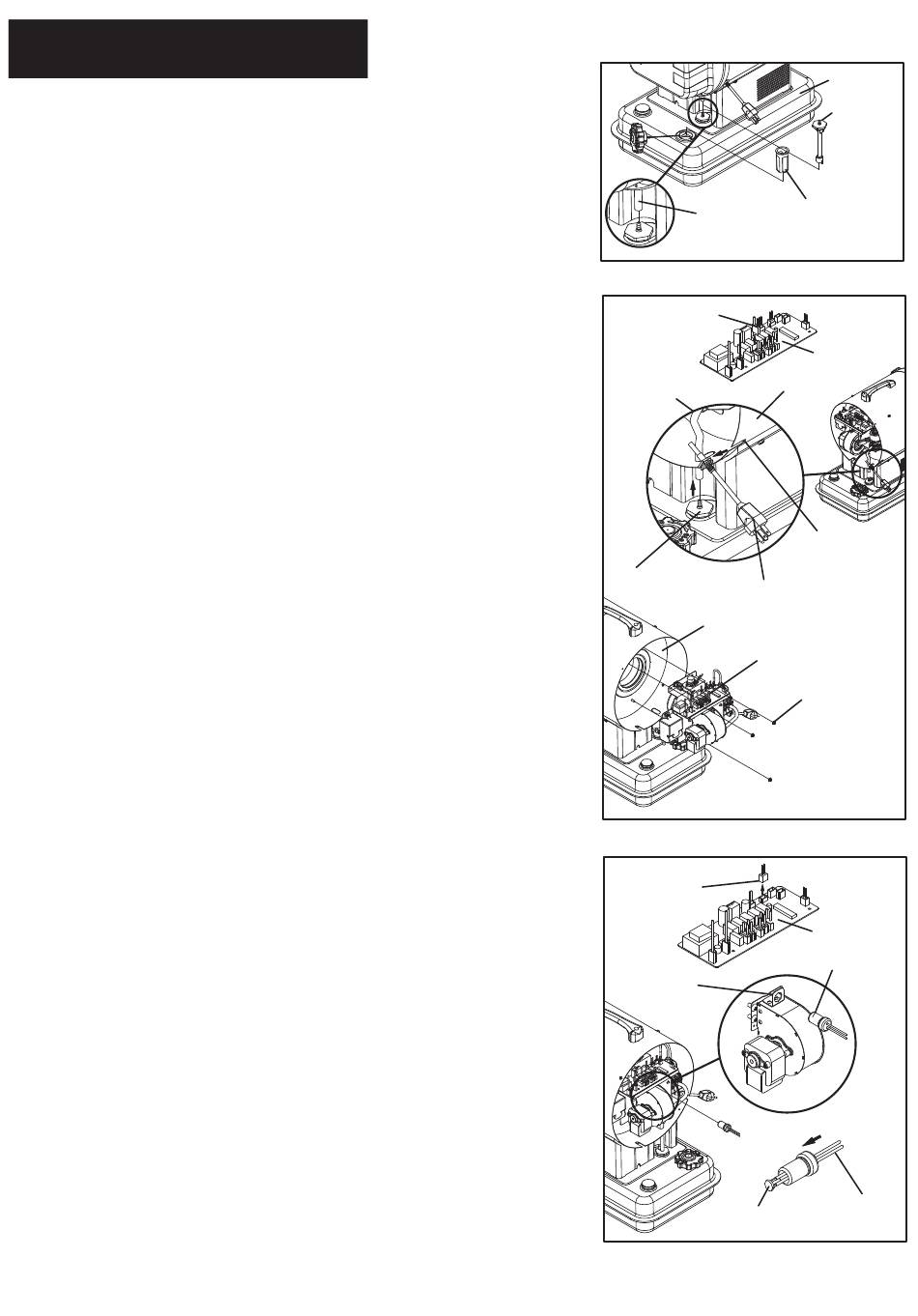

Figure 4. Tank Fuel Filter Removal
Fuel Filter
Figure 5. Burner Full Assembly Removal
8
Fuel Line
Cooling M/T Wire
Shell
Fuel Line
Power Cord
Shell Insulator
Burner Full Assembly
Photocell Wire
Bracket
Photocell
Lens
Figure 6. Photocell Removal
Fuel Tank
Fuel Filter
Fuel Cap Filter
Control PCB
U-Shaped Hole
NUT
Control PCB
Photocell
Photocell
Wire
