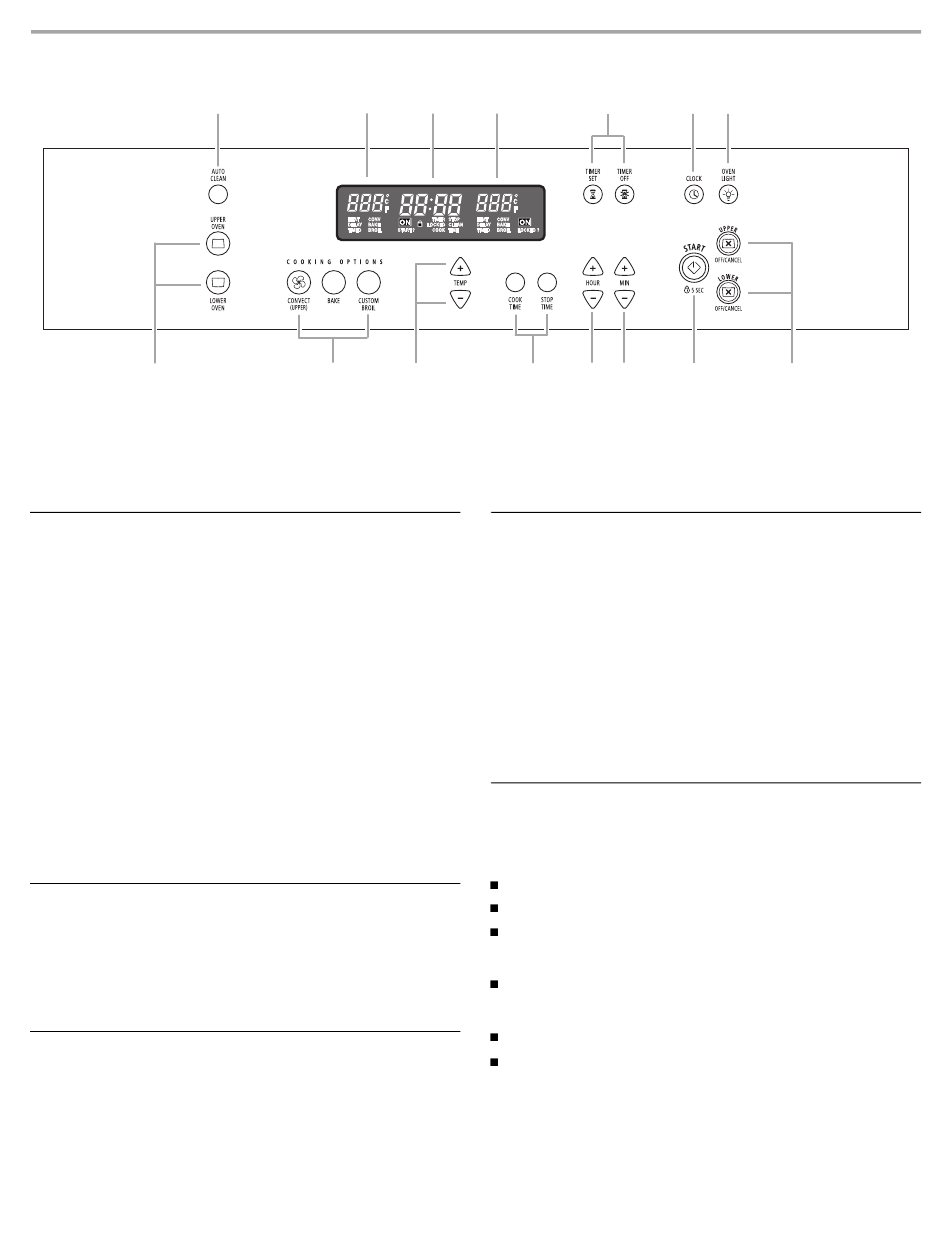

A. Auto clean
B. Upper oven temperature display
C. Electronic display
D. Lower oven temperature display
E. Timer
When power is first supplied to the appliance, everything on both
displays will light up for 5 seconds. Then, the time of day and
"PF" will appear on the electronic oven display.
If "PF" appears at any other time, a power failure has occurred.
To reset the clock, press UPPER OFF/CANCEL or LOWER OFF/
CANCEL on double oven models. On single oven models, press
OFF/CANCEL.
Electronic Display
When the oven(s) are in use, this display shows the oven
temperature. On double oven models, this display will also show
which oven is being set. The left cavity symbol in the oven
display represents the upper oven, and the right cavity symbol in
the oven display represents the lower oven.
If "Err" appears on the oven display, an invalid pad was pressed.
Press UPPER OFF/CANCEL or LOWER OFF/CANCEL and retry
entry. On single oven models, press OFF/CANCEL.
When the oven(s) are not in use, the display will show the time
of day.
The Start pad begins any oven function except the Timer. If the
Start pad is not pressed within 5 seconds after pressing a pad,
"START?" will appear on the oven display as a reminder. If the
Start pad is not pressed within 4 minutes after pressing a pad,
the oven display will return to the time of day mode and the
programmed function will be canceled.

Upper Off/Cancel, Lower Off/Cancel or Off/Cancel

The UPPER OFF/CANCEL, LOWER OFF/CANCEL and
OFF/CANCEL pads stop their respective oven functions except
for the Clock, Timer and Control Lock.
The cooling fan may continue to operate even after an oven
function has been canceled, depending on the oven temperature.
4

ELECTRONIC OVEN CONTROL

A B
I

Display

Start

C D
J K
F. Clock
G. Oven light
H. Oven selector
I. Oven settings
J. Temperature setting
This is a 12-hour clock and does not show a.m. or p.m.
To Set:
Before setting, make sure the ovens, Timer and Timed Cooking
are off.
1. Press CLOCK.
2. Press the HOUR or MIN "+" or "-" keypads to set the time of
day.
3. Press CLOCK or START.
To remove the time of day from the display: Press and hold
CLOCK for 5 seconds. Repeat to return the time of day to the
display. The time should not have to be reset.
Tones are audible signals, indicating the following:
One tone
Valid pad press
Oven is preheated
Function has been entered
Three tones
Invalid pad press
Four tones
End of cycle
Reminder, repeating each minute after the end-of-cycle tones
G
E F
L M N
K. Timed cooking
L. Hour
M. Minute
N. Start (control lock)
O. Upper off/cancel
Lower off/cancel

Clock

Tones

O
