Installation Instructions

Installation Clearance Requirements

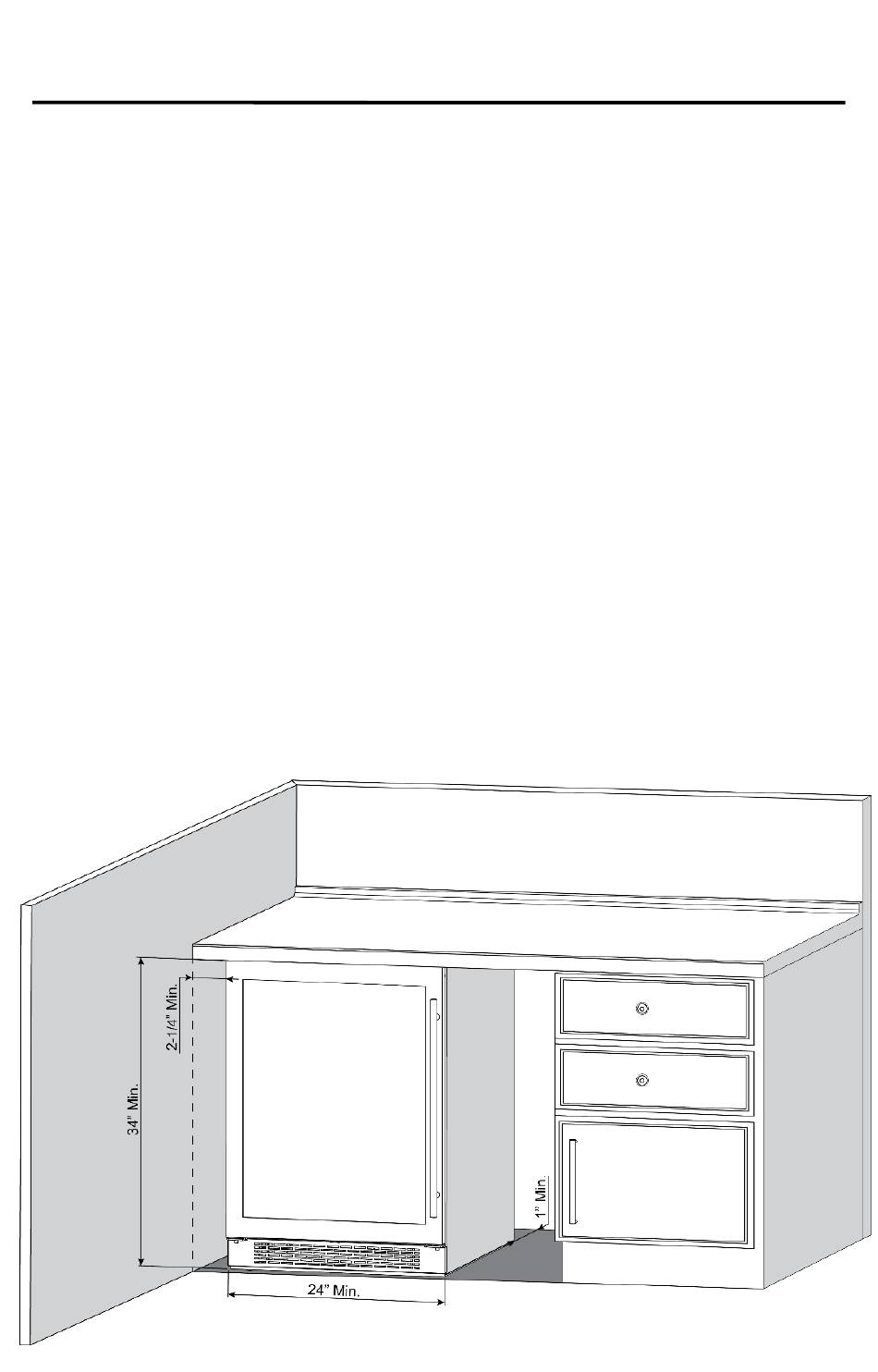

When installing the beverage cooler under a counter, follow the recommended spacing
dimensions shown.
⚫ If the cooler is flush-mounted with the front of the cabinets, an additional 1/8"
cabinet height clearance will be required.
⚫ For proper clearance of the electrical plug, allow at least 1" of clearance at the
back as shown in the diagram.
⚫ An installation next to a wall will require a minimum 2-1/4" door clearance to
accommodate the Zephyr handle. If a custom handle is used, the dimensions will
need to be measured accordingly based on the handle dimensions.
⚫ The cabinet should allow at least 24" for the width and 34" for the height to
accommodate the beverage cooler.
The power cable is located on the back right of the unit and has a length of 72" to
⚫
accommodate multiple outlet locations.
Once you are ready to install the unit, you must adjust the feet to level the
⚫
beverage cooler.
⚫ The installation should allow the unit to be pulled forward for servicing, if
necessary.
