4 Electrical installation
Design including a connector
Feedback system

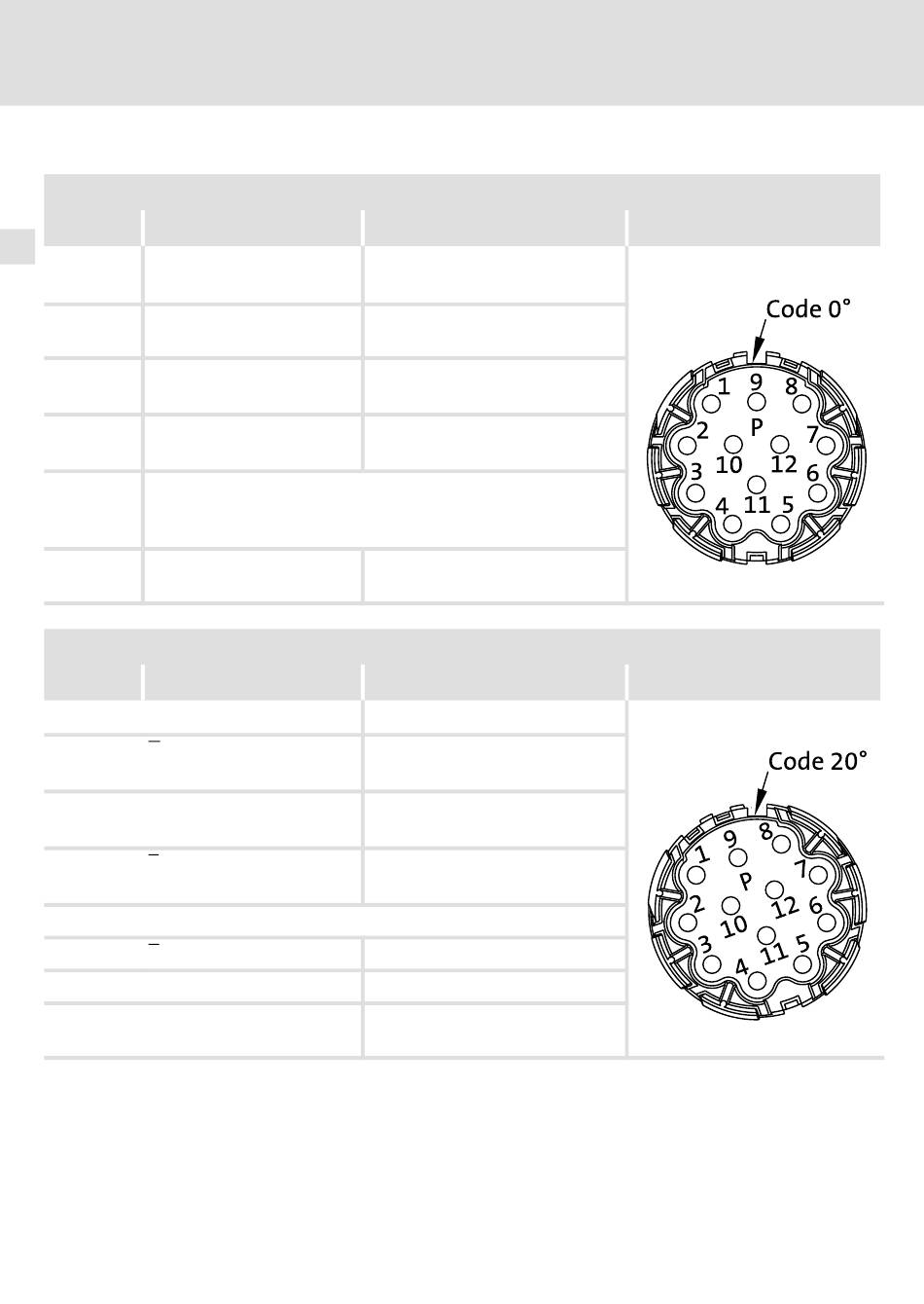

Resolver (external view of poles)
Pin Designation
1 + Ref
2 - Ref
3 +VCC ENP
4 + Cos
5 - Cos
6 + Sin
7 - Sin
8
9 Not assigned
10
11 + KTY
12 - KTY
Incremental encoder / sin/cos absolute value encoder Hiperface (external view of poles)
Pin Designation
1 B
2 A
3 A
4 + U
B
5 GND
6 Z
7 Z
8 Not assigned
9 B
10
11 + KTY
12 - KTY
26
Meaning
Transformer windings
(reference windings)
Supply: electronic nameplate
1)
Stator windings cosine
Stator windings
sine
KTY thermal detector
Meaning
Track B / + SIN
Track A inverse / - COS
Track A / + COS
Supply +
Earth
Zero track inverse / - RS485
Zero track / + RS485
Track B inverse / - SIN
Not assigned
KTY thermal detector

