Introduction
Thank you for purchasing Color Changing SOL Lighting. Atlantic's SOL Lighting
features solid brass bodies with an oil-rubbed bronze finish. These LEDs create a
vibrant nighttime atmosphere with 48 different colors and 18 different pre-
programed color changing combinations. Multiple LEDs can be connected to run
through one transformer and be controlled by one remote.
Prior to Operation and Installation
Caution:
• DO NOT operate this product under any conditions other than those for which
it is specified. Failure to observe these precautions can lead to electrical shock,
product failure, or other problems.
• Follow all aspects of electrical codes when installing SOL Lighting.
• To reduce the risk of electrical shock, connect only to a 110 volt receptacle
protected by a ground fault circuit interrupter (GFCI).
• The input power to the Color Changing Control Module is 12 volt AC. The
Control Module can be connected to a larger outdoor lighting transformer;
however this must be done on the 12 volt AC input side of Control Module.
Removing the Control Module or tampering with the cord between the Control
Module and the light fixture will damage the LEDs and void warranty.
• The Control Module is weather-resistant with an IP54 rating. Do not submerse
the Control Module or expose it to heavy rainfall. It must be mounted off the
ground close to the power source. Failure to do so will void the warranty.
Installation
Spout Light Installation

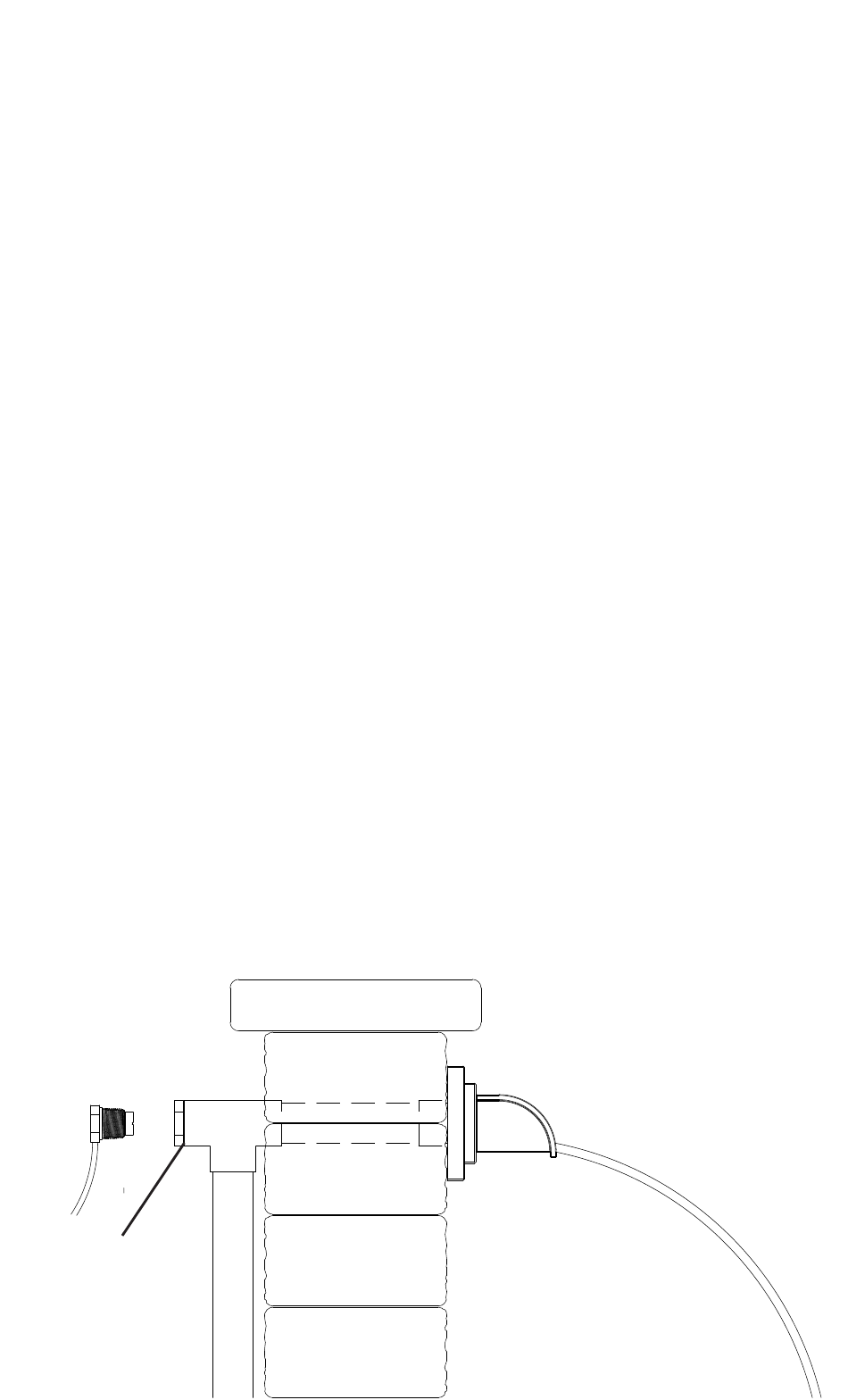

The Spout Light can be installed behind a wall, shining through a wall spout
Figure 1.
Female threaded
reducing bushing
2
1½" T
