ENGLISH
Read and understand this manual and all safety signs
before using this appliance. Keep this manual for future
reference.
SHORT DESCRIPTION
The VMBKP is a vandal-resistant and weatherproof
keypad. It combines a digital keypad and proximity EM
card reader in one unit.
The keypad has been designed for full feature access
control in a Velbus home automation system.
Apart from simple door opening using User Codes and/or
EM Cards, the VMBKP features many advanced features.
These are explained in detail in the VMBKP User Manual
that can be downloaded from www.velbus.eu.
FEATURES
• vandal-resistant die-cast zinc alloy protection
bracket for surface mounting
• built-in tamper detection
• 2 separate user channels with max. 1,000 users for
controlling channel 1 and max. 100 users for channel
2
• 50 visitor codes for temporary workers and visitors,
for one time use or which expire after a
programmable time of 1-99 hours
• 4-8 digit user codes, RFID cards or fobs, or
combination of the two for different security levels
• compatible with 125 kHz Manchester 64-bit EM4100
& EM4200 EM cards and keyfobs
• CAN terminator switch with state detection
• 8 Velbus channels:
o 2 user channels
o tamper alarm
o 5 virtual buttons
• uses one Velbus address (configurable in VelbusLink)
• extensive day, week and year programs plus a built-
in astronomical clock (sunrise and sunset timing) are
included to operate, lock and unlock the channels
automatically (configurable in VelbusLink)
• For a full list of features, see the VMBKP product
page on www.velbus.eu.
SPECIFICATIONS
• dimensions: 144(H) x 78(W) x 32(D) mm
• supply voltage: 15
± 3 VDC
• current consumption: 130 mA max.
• weight: 400 g
• Velbus bus connector cross section (solid wire): 0.5 –
1.5 mm²
• operating conditions: -20 to +70°C
•
protection rating: IP65
• delays for code entry and card reading:
o 10 seconds max. delay for next digit entry
o 30 seconds max. delay for code entry after card
reading
• possible bus addresses: 250
• number of channels: 8
• max. number of program steps: 70
• storage conditions: -20 to +70°C, 5-95% relative
humidity non-condensing
Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu
• housing: die-cast zinc alloy protection bracket
• faceplate material: stainless steel
• max. transmitted power: < -57 dBm
PACKAGE CONTENTS
• VMBKP Keypad
• Two EM Cards
• Pack of Mounting Screws
• HEX Screw Wrench
• Quickstart Guide
INSTALLATION
Precautions
Prevention of interference
The EM Card reader frequency is 125 kHz. Installation
precautions are necessary. Make sure there are no strong
low-frequency electro-magnetic waves at the site of
installation, especially in the range of 100-200 kHz.
If there is more than one keypad with the same operation
frequency installed close by, make sure that they are at
least 60 cm (2 ft) apart from each other to prevent
interference.
Prevention of accidental short-circuits
Most damage caused during installation is a result of
accidentally touching the components on the circuit board
with live wires. Please study the manual to become
familiar with the specifications of the system before
starting installation.
Do not apply power to the keypad during installation.
Check carefully if all the wirings are correct before
applying power to the keypad.
Connection

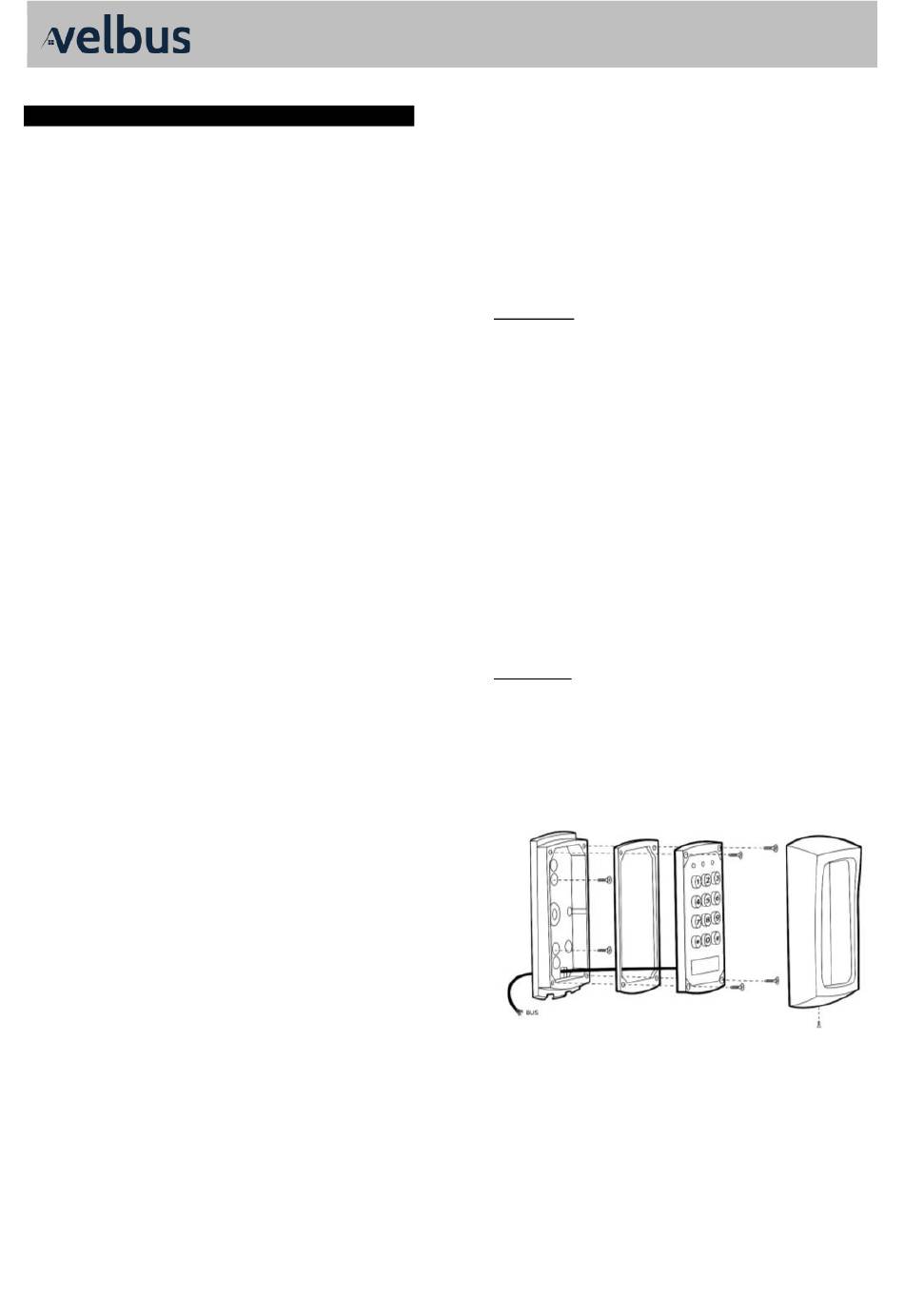

Open the keypad by removing the HEX screw at the
bottom, and then the 4 screws that fix the keypad on the
base (see illustration below). Connect the Velbus bus
cable to the "- + L H" connector situated on the circuit
board at the back of the keypad. The keypad receives its
power supply from the bus cable (no need for additional
power supply). Then close and install the keypad.
