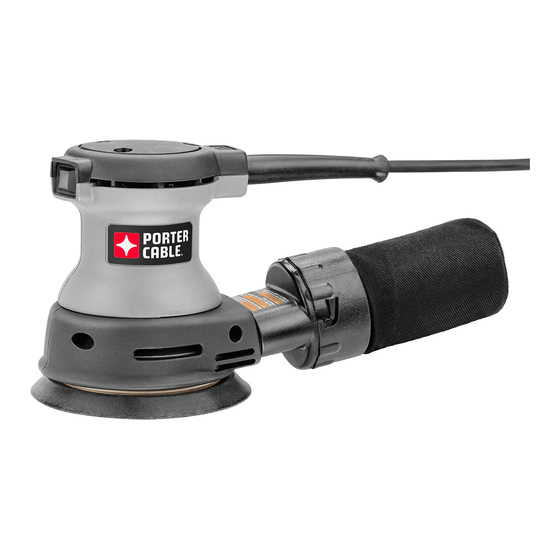

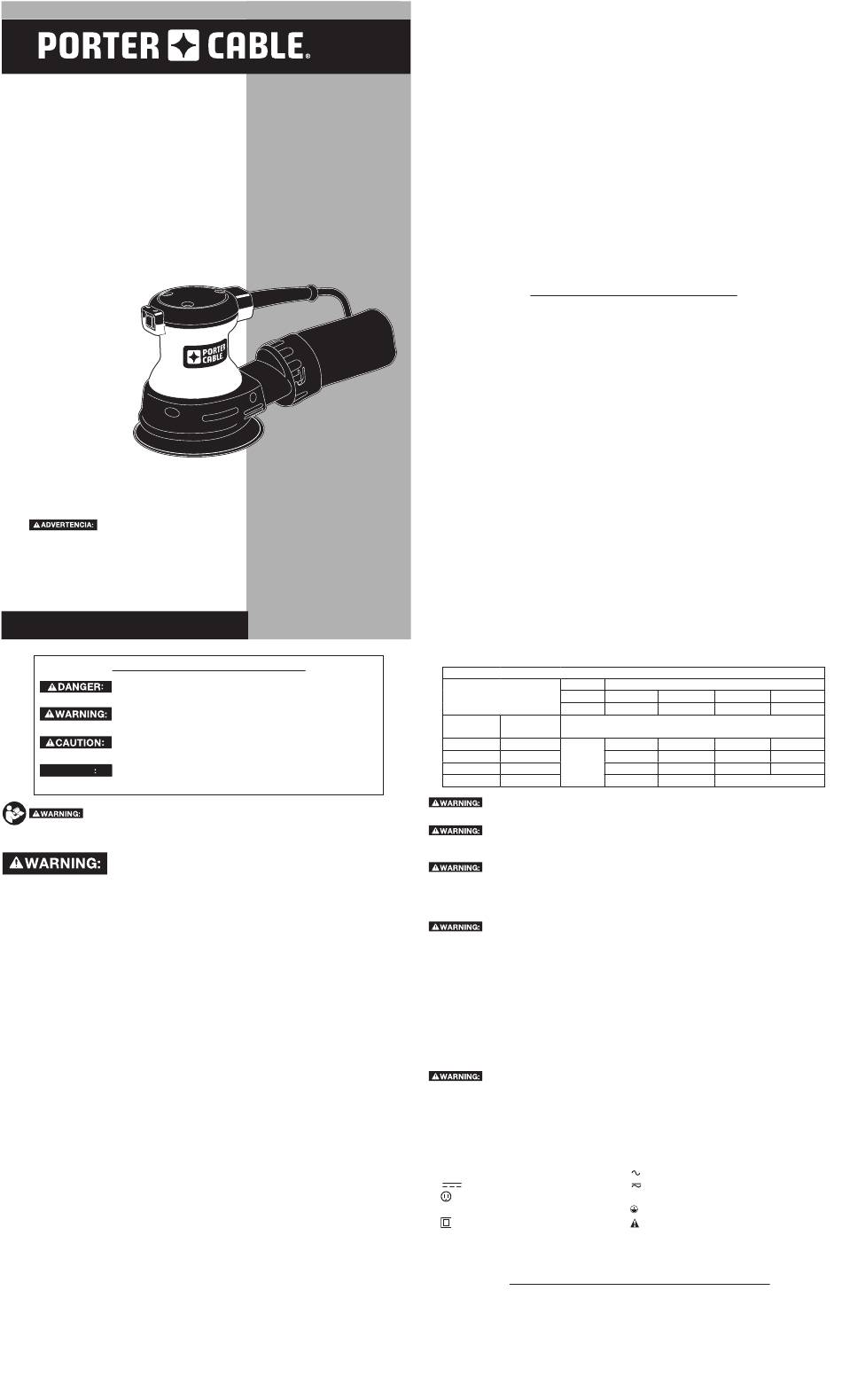

Porter Cable 382 Manuel D'instructions

5" (127 mm) Random
oRbit Palm SandeR
with Dust Collection and Hook & Loop Pad
Lijadora de órbita aleatoria de
127 mm (5 pulg)
con recolección de polvo y
base de unión por contacto
Ponceuse de finition orbitale
excentrique, de 127 mm (5 po)
avec dépoussiéreur et tampon
de type boucles et crochets
Instruction manual
Manuel d'instructions
Manual de'instrucciones
www.deltaportercable.com
INSTRUCTIVO DE OPERACIÓN, CENTROS
DE SERVICIO Y PÓLIZA DE GARANTÍA.
LÉASE ESTE INSTRUCTIVO
ANTES DE USAR EL PRODUCTO.
N063103 APR10
DEFINITIONS - SAFETY GUIDELINES
indicates an imminently hazardous situation which, if not avoid-
ed, will result in death or serious injury.
indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
indicates a potentially haz ard ous situation which, if not avoided,
may result in minor or mod er ate injury.
NOTICE
used without the safety alert symbol indicates potentially haz-
ardous situation which, if not avoided, may result in property damage.
fr
AVIS
sp AVISO
To reduce the risk of injury, read the instruction manual.
GENErAL POwEr TOOL SAFETY wArNINGS
read all safety warnings and instructions Failure to follow the warnings
and instructions may result in electric shock, fire and/or serious injury.
Save all warningS and inStructionS
for future reference
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1) wOrk ArEA SAFETY
a) keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flam-
mable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
2) ELEcTrIcAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets
will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or
grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e) when operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit
interrupter (GFcI) protected supply. Use of a GFCI reduces the risk of electric shock.
3) PErSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while operating power tools may result in serious per-
sonal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connect-
ing to power source and/or battery pack, picking up or carrying the tool. Carrying power
tools with your finger on the switch or energizing power tools that have the switch on invites
accidents.
d) remove any adjusting key or wrench before turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. keep proper footing and balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
4) POwEr TOOL USE AND cArE
5) SErvIcE
• Hold power tools by insulated gripping surfaces when performing an operation where the cut-
• Do not sand metal of any kind with your sander. Sparks may be generated by sanding screws,
• Do not wet sand with this sander. Liquids may enter the motor housing and cause electric
• Empty dust collection system frequently, especially when sanding resin-coated surfaces such
• Do not operate this tool for long periods of time. Vibration caused by the operating action of this
• Sanding of lead-based paint, chemically pressure treated lumber or other materials that may
• clean out your tool often, especially after heavy use. Dust and grit containing metal particles
• Always disconnect tool from the power source before changing abrasive sheets. Such preven-
• replace worn cFS disc when it causes high tool rpm. High tool rpm caused by a worn out CFS
382
ExTENSION cOrD
An extension cord must have adequate wire size (AwG or American wire Gauge) for safety.
The smaller the gauge number of the wire, the greater the capacity of the cable, that is 16 gauge
has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in
loss of power and overheating. When using more than one extension to make up the total length, be
sure each individual extension contains at least the minimum wire size. The following table shows
Copyright © 2010 PORTER-CABLE the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the
next heavier gauge. The smaller the gauge number, the heavier the cord.
conforms to ANSI Z87.1.
during use. Under some conditions and duration of use, noise from this product may contribute to
hearing loss.
face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:
activities contains chemicals known to the State of California to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: work in a well ventilated area, and work with approved
safety equipment, such as those dust masks that are specially designed to filter out microscopic
particles.
nent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for
the dust exposure. Direct particles away from face and body.
SYMBOLS
The label on your tool may include the following symbols. The symbols and their definitions are as
follows:
1.
2.
PErSONAL SAFETY
1.
2.
g) If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
a) Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are dan-
gerous in the hands of untrained users.
e) Maintain power tools. check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool's operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained
power tools.
f) keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions
taking into account the working conditions and the work to be performed. Use of the
power tool for operations different from those intended could result in a hazardous situation.
a) Have your power tool serviced by a qualified repair person using only identical replace-
ment parts. This will ensure that the safety of the power tool is maintained.
ADDITIONAL SPEcIFIc SAFETY rULES
ting tool may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed
metal parts of the tool "live" and shock the operator.
nails or other metals which may ignite dust particles.
shock.
as polyurethane, varnish, shellac, etc. Dispose of coated dust particles according to the finish
manufacturer's guidelines, or place in a metal can with a tight fitting metal lid. Remove coated
dust particles from the premises daily. The accumulation of fine sanding dust particles may self
ignite and cause fire.
tool may cause permanent injury to fingers, hands, and arms. Use gloves to provide extra cushion,
take frequent rest periods, and limit daily time of use.
contain carcinogens is not recommended. Sanding of these materials should only be performed
by a professional.
often accumulate on interior surfaces and could create a risk of serious injury, electric shock or elec-
trocution. Always disconnect the sander from the power source before cleaning. Always wear safety
glasses that conform to ANSI Z87.1.
tive safety measures reduce the risk of starting the power tool accidentally.
disc may result in separation of sanding pad from the sander, possibly causing personal injury.
for instructions on replacing the CFS disc, see the section of this manual titled "Tool Care."
Minimum Gauge for cord Sets
volts
120v
Ampere rating
240v
More Not More
Than
Than
0 6
6 10
10 12
12 16
Always use eye protection. All users and bystanders must wear eye protection that
Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19)
ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use
• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.
Some dust created by power sanding, sawing, grinding, drilling, and other construction
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber (CCA).
• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other
construction activities. wear protective clothing and wash exposed areas with soap and
water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption
of harmful chemicals.
Use of this tool can generate and/or disburse dust, which may cause serious and perma-
V ....................... volts
Hz .................... hertz
min ................... minutes
................ direct current
..................... Class I Construction
......................... (grounded)
.................... Class II Construction
......................... (double insulated)
.../min .............. per minute
OPM ................ orbits per minute
ADDITIONAL SAFETY rULES FOr PAINT rEMOvAL
Sanding of lead based paint is NOT RECOMMENDED due to the difficulty of controlling the
contaminated dust. The greatest danger of lead poisoning is to children and pregnant women.
Since it is difficult to identify whether or not a paint contains lead without a chemical analysis, we
recommend the following precautions when sanding any paint:
No children or pregnant women should enter the work area where the paint sanding is being
done until all clean up is completed.
A dust mask or respirator should be worn by all persons entering the work area. The filter should
be replaced daily or whenever the wearer has difficulty breathing. See your local hardware store
for the proper NIOSH approved dust mask.
Total Length of cord in Feet (meters)
25 (7.6) 50 (15.2) 100 (30.5)
50 (15.2) 100 (30.5) 200 (61.0)
AwG
18 16 16
18 16 14
16 16 14
14 12 Not Recommended
A ................. amperes
W ................ watts
.............. alternating current
.............. alternating or direct current
n o ............... no load speed
............... earthing terminal
............... safety alert symbol
BPM ........... beats per minute
RPM ........... revolutions per minute
150 (45.7)
300 (91.4)
14
12
12
