Instruction Manual
Manuel d'utilisation
Manual de Instrucciones
®
SAVE THESE INSTRUCTIONS!
Read all instructions. Failure to follow all instructions listed below may result in electric
shock, fi re and/or serious injury. The term "power tool" in all of the warnings listed below refers to
your mains-operated (corded) power tool or battery-operated (cordless) power tool.
To reduce the risk of injury, user must read instruction manual.
GENERAL SAFETY RULES
1)
Work area safety
a)
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b)
Do not operate power tools in explosive atmospheres, such as in the presence of
fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust
or fumes.
c)
Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
2)
Electrical safety
a)
Grounded tools must be plugged into an outlet properly installed and grounded in
accordance with all codes and ordinances. Never remove the grounding prong or
modify the plug in any way. Do not use any adaptor plugs. Check with a qualifi ed elec-
trician if you are in doubt as to whether the outlet is properly grounded. If the tools should
electrically malfunction or break down, grounding provides a low resistance path to carry
electricity away from the user. Applicable only to Class I (grounded) tools.
b)
Double insulated tools are equipped with a polarized plug (one blade is wider than
the other.) This plug will fi t in a polarized outlet only one way. If the plug does not fi t
fully in the outlet, reverse the plug. If it still does not fi t, contact a qualifi ed electri-
cian to install a polarized outlet. Do not change the plug in any way. Double insulation
eliminates the need for the three wire grounded power cord and grounded power supply
system. Applicable only to Class II (double insulated) tools.
c)
Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges, and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
d)
Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
e)
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock. Use only 3-wire extension cords that have 3-
prong grounding-type plugs and 3-pole receptacles that accept the tool's plug.
f)
When operating a power tool outdoors, use an extension cord suitable for outdoor
use. If an extension cord is to be used outdoors, it must be marked with the suffi x W-A or
W following the cord type designation. Use of a cord suitable for outdoor use reduces the
risk of electric shock. When using an extension cord, be sure to use one heavy enough to
carry the current your product will draw. An undersized cord will cause a drop in line volt-
age resulting in loss of power and overheating. The following table shows the correct size
to use depending on cord length and nameplate ampere rating. If in doubt, use the next
heavier gauge. The smaller the gauge number, the heavier the cord.
Minimum Gauge for Cord Sets
Volts
Total Length of Cord in Feet
120V
0-25
Ampere Rating
Gauge of wire in AWG units
10 to 12 amps
16
12 to 16 amps
14
3)
Personal safety
a)
Stay alert, watch what you are doing and use common sense when operating a pow-
er tool. Do not use a power tool while you are tired or under the infl uence of drugs,
alcohol or medication. A moment of inattention while operating power tools may result in
serious personal injury.
b)
Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in
moving parts.
c)
Avoid accidental starting. Be sure the switch is in the off-position before plugging in.
Carrying power tools with your fi nger on the switch or plugging in power tools that have
the switch on invites accidents.
360, 360VS, 361, 362, 362V, 362VSK, 363

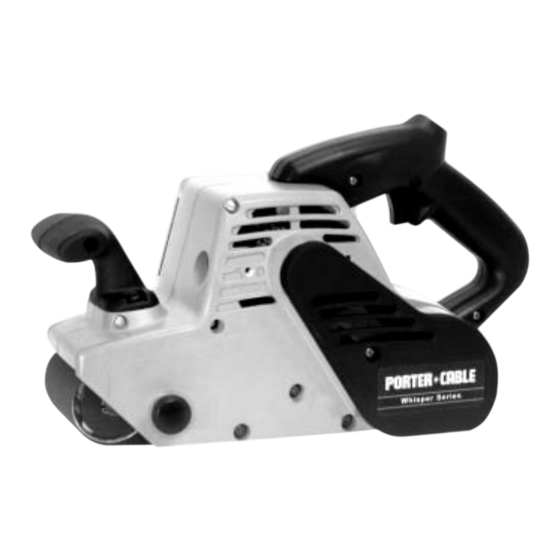

Belt Sander
Ponceuses à bande
Lijadoras de correa
www.porter-cable.com
Copyright © 2006 Porter-Cable
Part No. A17406 - 04-24-06 - Rev. A
Instructivo de operacion,
centros de servicio y poliza de garantia.
ADVERTENCIA: Lease este instructivo antes de usarel producto.
26-50
51-100
101-150
16
14
12
12
Not recommended
d)
Remove any adjusting key or wrench before turning the power tool on. A wrench or a
key left attached to a rotating part of the power tool may result in personal injury.
e)
Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
f)
Use safety equipment. Always wear eye protection. Safety equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
g)
If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of these devices can reduce
dust-related hazards. Accessories that may be suitable for one tool, may become haz-
ardous when used on another tool.
4)
Power tool use and care
a)
Use clamps or other practical way to secure and support the workpiece to a stable
platform. Holding the work by hand or against your body is unstable and may lead to loss
of control.
b)
Do not force the power tool. Use the correct power tool for your application. The cor-
rect power tool will do the job better and safer at the rate for which it was designed.
c)
Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
d)
Disconnect the plug from the power source before making any adjustments, chang-
ing accessories, or storing power tools. Such preventive safety measures reduce the
risk of starting the power tool accidentally.
e)
Store idle power tools out of the reach of children and do not allow persons unfamil-
iar with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
f)
Maintain power tools. Check for misalignment or binding of moving parts, break-
age of parts and any other condition that may affect the power tools operation. If
damaged, have the power tool repaired before use. Many accidents are caused by poorly
maintained power tools.
g)
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
h)
Use the power tool, accessories and tool bits etc., in accordance with these instruc-
tions and in the manner intended for the particular type of power tool, taking into
account the working conditions and the work to be performed. Use of the power tool
for operations different from those intended could result in a hazardous situation.
5)
Service
a)
Have your power tool serviced by a qualifi ed repair person using only identical re-
placement parts. This will ensure that the safety of the power tool is maintained.
ADDITIONAL SPECIFIC SAFETY RULES
• Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may
contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of
the tool "live" and shock the operator.
• Do not sand metal of any kind with your belt sander. Sparks may be generated by sanding
screws, nails or other metals which may ignite dust particles.
• Do not wet sand with this sander. Liquids may enter the motor housing and cause electric
shock.
• Do not operate this tool for long periods of time. Vibration caused by the operating action of
this tool may cause permanent injury to fingers, hands, and arms. Use gloves to provide extra
cushion, take frequent rest periods, and limit daily time of use.
• Clean out your tool often, especially after heavy use. Dust and grit containing metal
particles often accumulate on interior surfaces and could create a risk of serious injury,
electric shock or electrocution.
• Use proper safety equipment. Wear safety goggles for eye protection, wear hearing protection,
and wear a protective mask to minimize breathing in the fine dust created while sanding.
• Always disconnect the sander cord plug from the power circuit before changing belts. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
• Sanding of lead-based paint is not recommended. Lead-based paint should only be removed by
a professional.
• Always maintain a firm grip on the belt sander handles with both hands to prevent loss of con-
trol.
• Do not operate belt sander without all guards and covers securely in place.
Some dust created by power sanding, sawing, grinding, drilling, and other con-
struction activities contains chemicals known to cause cancer, birth defects or other repro-
ductive harm.
Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber (CCA).
Your risk from these exposures varies, depending on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to fi lter out microscopic particles.
Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and
other construction activities. Wear protective clothing and wash exposed areas with soap and water.
Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful
chemicals.
Use of this tool can generate and/or disburse dust, which may cause serious and
permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection ap-
propriate for the dust exposure. Direct particles away from face and body.
Wear appropriate hearing protection during use. Under some conditions and duration
of use, noise from this product may contribute to hearing loss.
SYMBOLS
The label on your tool may include the following symbols:
V ........... volts
Hz ......... hertz
min ....... minutes
.. direct current
....... class II tool
./min ..... revolutions per minute
ADDITIONAL SAFETY RULES FOR PAINT REMOVAL
Extreme care should be taken when removing paint. The peelings, residue, and
vapors of paint may contain lead, which is poisonous. Exposure to even low levels of lead can cause
irreversible brain and nervous system damage. Young and unborn children are particularly vulnerable.
Before beginning any paint removal process you should determine whether the paint you are removing
contains lead. This can be done by your local health department or by a professional who uses a paint
analyzer to check for lead.
Lead-based paint should only be removed by a professional.
Persons removing paint should follow these guidelines:
1.
Keep the work area well ventilated. Open the windows and put an exhaust fan in one of them.
Be sure the fan is moving air from inside to outside.
2.
Remove or cover any carpets, rugs, furniture, clothing, cooking utensils, and air ducts.
Such preventive safety measures reduce the risk of exposure.
3.
Place drop cloths in the work area to catch any paint chips or peelings. Wear protective
clothing such as extra work shirts, overalls and hats. Such preventive safety measures reduce
the risk of exposure.
4.
Work in one room at a time. Furnishings should be removed or placed in the center of the room
and covered. Work areas should be sealed off from the rest of the dwelling by sealing doorways
with drop cloths.
5.
Children, pregnant (or potentially pregnant) women and nursing mothers should not be
present in the work area until the work is done and all cleanup is complete. Such preventive
safety measures reduce the risk of injury.
6.
Wear a dust respirator or a dual filter (dust and fume) respirator mask which has been
approved by the Occupational Safety and Health Administration (OSHA), the National
Institute of Safety and Health (NIOSH), or the United States Bureau of Mines. These masks
and replaceable filters are readily available at major hardware stores. Be sure the mask fits.
Beards and facial hair may keep the masks from sealing properly. Change filters often.
A ...................amps
W ..................watts
or a.c. ..alternating current
n o..................no load speed
...........protective earth

Publicité

loading

Sommaire des Matières pour Porter Cable 360

  • Page 1 Have your power tool serviced by a qualifi ed repair person using only identical re- placement parts. This will ensure that the safety of the power tool is maintained. 360, 360VS, 361, 362, 362V, 362VSK, 363 ADDITIONAL SPECIFIC SAFETY RULES •...
  • Page 2 ACCESSORIES ATTACHING AND CARE OF DUST BAG (Models 360, 360VS, 362, 362V and 362VSK) A complete line of accessories is available from your Porter-Cable Factory Service Center or a Por- Depress the dust bag spring clips (A) Fig. 4, and place the dust bag spring (A) between the ter-Cable Authorized Warranty Service Center.
  • Page 3: Conserver Ces Directives

    in workmanship or material during the warranty period. For repair or replacement return the complete tool or Utiliser des brides de fi xation ou tout autre dispositif de fi xation permettant de sou- accessory, transportation prepaid, to your nearest Porter-Cable Factory Service Center or Porter-Cable tenir et de retenir la pièce sur une plate-forme stable.
  • Page 4 Mettez le moteur à l’ARRÊT et laissez la ponceuse S’ARRÊTER COMPLÈTEMENT avant de la poser. FIXATION ET ENTRETIEN DU SAC À POUSSIÈRE (Modeles 360, 360VS, 362, 362V and 362VSK) Enfoncez les clips à ressort de sac de poussière (A) Fig. 4, et fixez les clips à ressort de sac de poussière (A) entre les arêtes sur le bec (B).
  • Page 5 de Clase II (con aislamiento doble). Algunos ejemplos de estas sustancias químicas son: Evite el contacto corporal con superfi cies con descarga a tierra tales como tuberías, • el plomo de las pinturas de base plomo, radiadores, estufas y refrigeradores. Existe mayor riesgo de descarga eléctrica si su •...
  • Page 6 DE COMPRA ORIGINAL. Para obtener información sobre la garantía, escríbanos a: PORTER-CABLE, 4825 Highway 45 North, Jackson, Tennessee 38305; referencia: Mantenimiento de productos. LA OBLIGACIÓN COLOCACIÓN Y CUIDADO DE LA BOLSA PARA POLVO (Los modelos 360, 360VS, 362, 362V PRECEDENTE ES RESPONSABILIDAD EXCLUSIVA DE PORTER-CABLE BAJO ÉSTA O CUALQUIER GA- y 362VSK) RANTÍA IMPLÍCITA Y BAJO NINGUNA CIRCUNSTANCIA PORTER-CABLE SE HARÁ...

Ce manuel est également adapté pour:

360vs361362362v362vsk363
