Installation Instructions
C

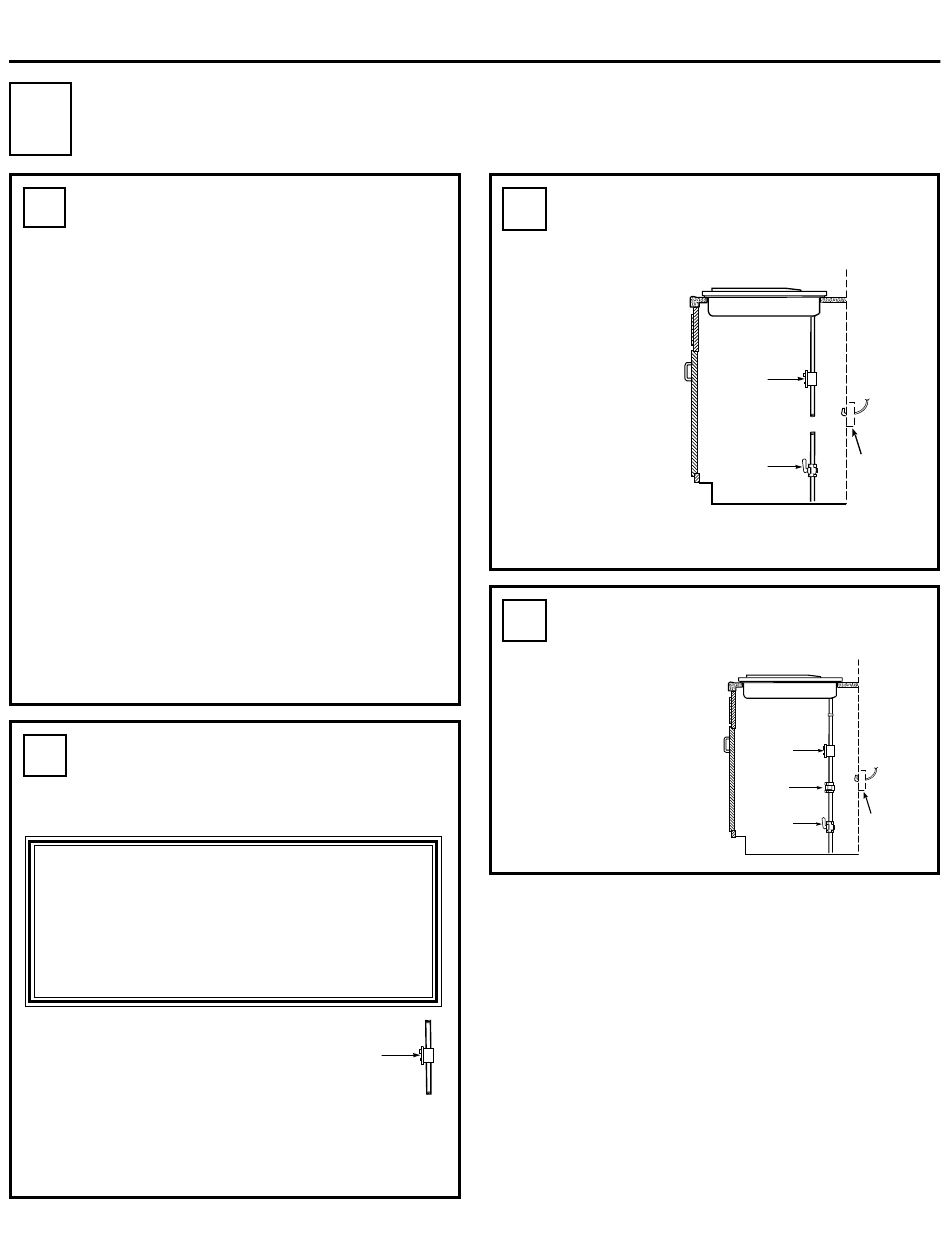

Installing the Cooktop
Provide Adequate Gas
C1
Supply
This cooktop is designed to operate on natural
gas at 4" of water column pressure. It is
shipped from the factory set for natural gas.
The convertible pressure regulator supplied
with the unit must be connected in series with
the manifold of the cooktop, and must remain
in series with the supply line regardless of
whether natural or L.P. gas is being used.
FOR PROPER OPERATION, THE MAXIMUM
INLET PRESSURE TO THE REGULATOR
MUST BE NO MORE THAN 14" OF WATER
COLUMN PRESSURE. For checking the
regulator, the inlet pressure must be at least
1" (or 3.4 KPA) greater than the regulator
output setting. If the regulator is set for 4" of
water column pressure, the inlet pressure
must be at least 5". If the regulator is set for
10", the inlet pressure must be at least 11".
The gas supply line to the cooktop should be
1/2" or 3/4" pipe.
Installing the Regulator
C2
NEVER REUSE OLD CONNECTORS WHEN
INSTALLING THIS COOKTOP.
WARNING: Never reuse old flexible
connectors. The use of old flexible
connectors can cause gas leaks and
personal injury. Always use new
flexible connectors when installing a
gas appliance.
Screw a section of pipe
onto each end of the
pressure regulator.
To reduce the likelihood of gas leaks,
apply teflon tape or a thread compound
approved for use with LP or Natural
gases to all threaded connections.
Pressure
Regulator
6
Install the regulator onto
C3
the burner box bottom.
Screw the
regulator and
pipe connection
into the burner
box bottom.
Make sure the
top of the
regulator is
facing towards
the cabinet front,
easily accessible
through the
cabinet doors.
Complete the connection
C4
with a coupling.
Install a coupling
between the
regulator and the
shutoff valve to
complete the
connection.
Pressure
Regulator
Shut Off
Electrical
Valve
Outlet
12" Below
Countertop
Pressure Pressur
Regulator
Coupling
Shut Off
Electrical
Valve
Outlet
12" Below
Countertop
continue on the following page
