OPERATING COMPONENTS

5.1

Circuit board

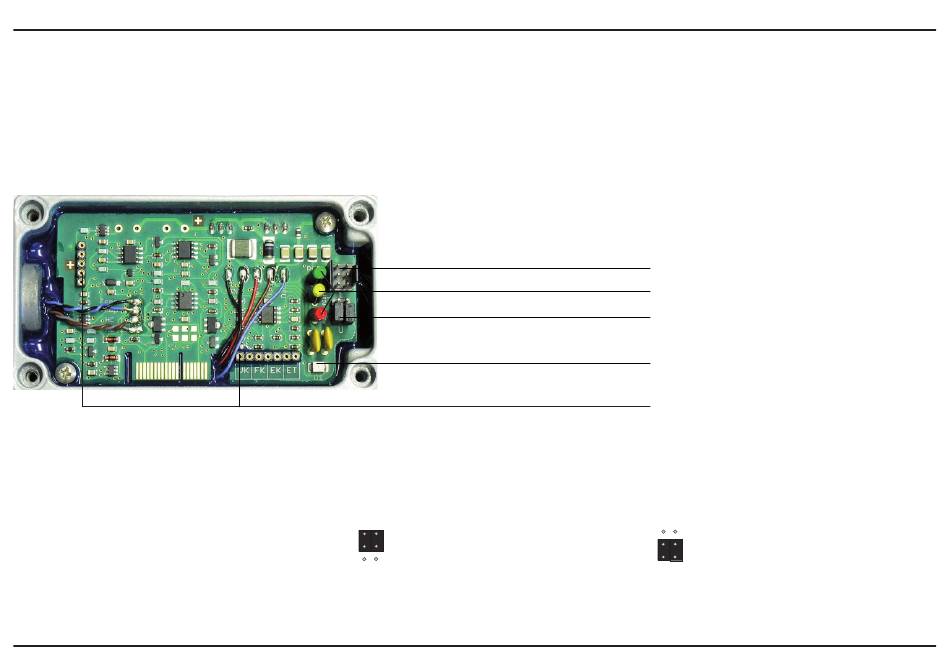

After removal of the housing cover, the following operating components on the circuit board may be accessed to confi gure the transmitter
to the desired settings:
1. Serial interface:
2. Status LEDs:
3. Current-/ voltage output:
4. Diagnostic LED:
5. Display:
Pin connector for serial interface cable (HA010604).
Provide information about the status of the device. Refer to chapter „5.2 Status LEDs.
If the transmitter is switched from current to voltage output, using the confi guration software, the 2 jumpers
must be positioned accordingly:
I
for current signals:
U
Visual indication for easy determination of the cause of error. (refer to chapter "6.3 Self-diagnostic and
error messages").
These pin connecters are designated for the display module.
1. Serial interface
2. Status LED's
3. Current-/ voltage output
4. Diagnostic LED
5. Display
for voltage signals:
