Wiring the GRAFIK Eye QS Control Unit (continued):

QS Link Control Wiring Details

• System communication uses IEC PELV/NECR Class 2
wiring.
• Follow all local and national electrical codes when
installing IEC PELV/NECR Class 2 wiring with line
voltage/mains wiring.
• Each terminal accepts up to two 18 AWG (1.0 mm
wires.
• Total length of control link must not exceed 2000 ft
(610 m).
• Make all connections in the control unit's wallbox.
• Wiring can be T-tapped or daisy-chained.
• IEC PELV/NECR Class 2 24 V- 150 mA.
System Limits
The QS wired communication link is limited to
100 devices or 100 zones.
The GRAFIK Eye QS control unit supplies 3 Power
Draw Units (PDUs) on the QS link. Refer to the QS
Link Power Draw Units specification submittal (Lutron
P/N 369405) for more information concerning PDUs.
Wire Sizes (check compatibility in your area)
QS Link Wiring Length Wire Gauge
Power (terminals 1 and 2); 1 pair 18 AWG (1.0 mm
Less than 500 ft (153 m)
Data (terminals 3 and 4); 1 twisted, shielded pair 22 AWG (0.5 mm
Power (terminals 1 and 2); 1 pair 12 AWG (4.0 mm
Up to 2000 ft (610 m)
Data (terminals 3 and 4); 1 twisted, shielded pair 22 AWG (0.5 mm
Notes:
• For more information regarding Lutron cable specifications, please see Lutron P/N 369596 and P/N 369597 at www.lutron.com
• For wire runs over 2000 ft (610 m), please contact Lutron Customer Assistance
LUTRON LUTRON

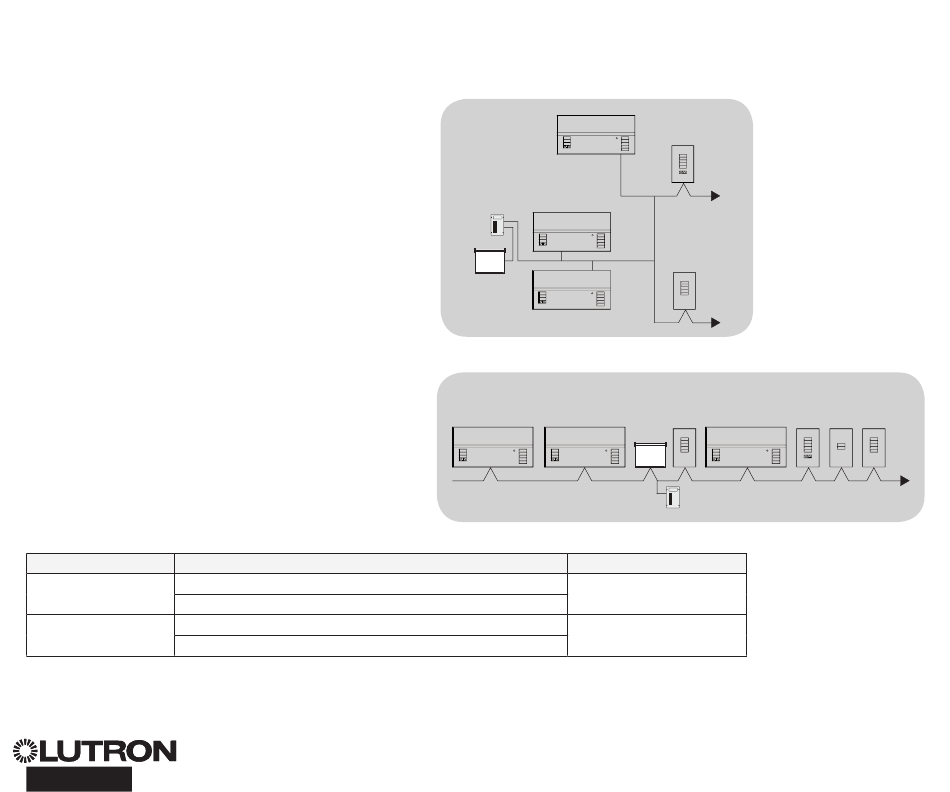

T-Tap Wiring Example
GRAFIK Eye QS
control unit
2
)
QS smart
power
panel
Sivoia QS
shade/drape
Daisy-Chain Wiring Example
GRAFIK Eye QS
control unit
2
)
2
)
For additional information, see the complete installation and operation guide at www.lutron.com/qs
GRAFIK Eye QS Control Unit Quick Installation and Operation Guide
LUTRON LUTRON LUTRON
LUTRON
seeTouch QS
wallstation
LUTRON
LUTRON
LUTRON
LUTRON
LUTRON
Sivoia
QS
shade/
drape
LUTRON
LUTRON LUTRON
QS smart
power panel
Lutron Cable Part Number
GRX-CBL-346S (non-plenum)
GRX-PCBL-346S (plenum)
2 )
GRX-CBL-46L (non-plenum)
GRX-PCBL-46L (plenum)
2 )
LUTRON
seeTouch QS
GRAFIK Eye QS
wallstations
control unit
LUTRON LUTRON LUTRON
LUTRON
LUTRON
LUTRON LUTRON LUTRON
LUTRON
LUTRON
LUTRON
