motor
VR-2 90A Powermodule
VR-2 90A Powermodule twin actuators
Figure 9

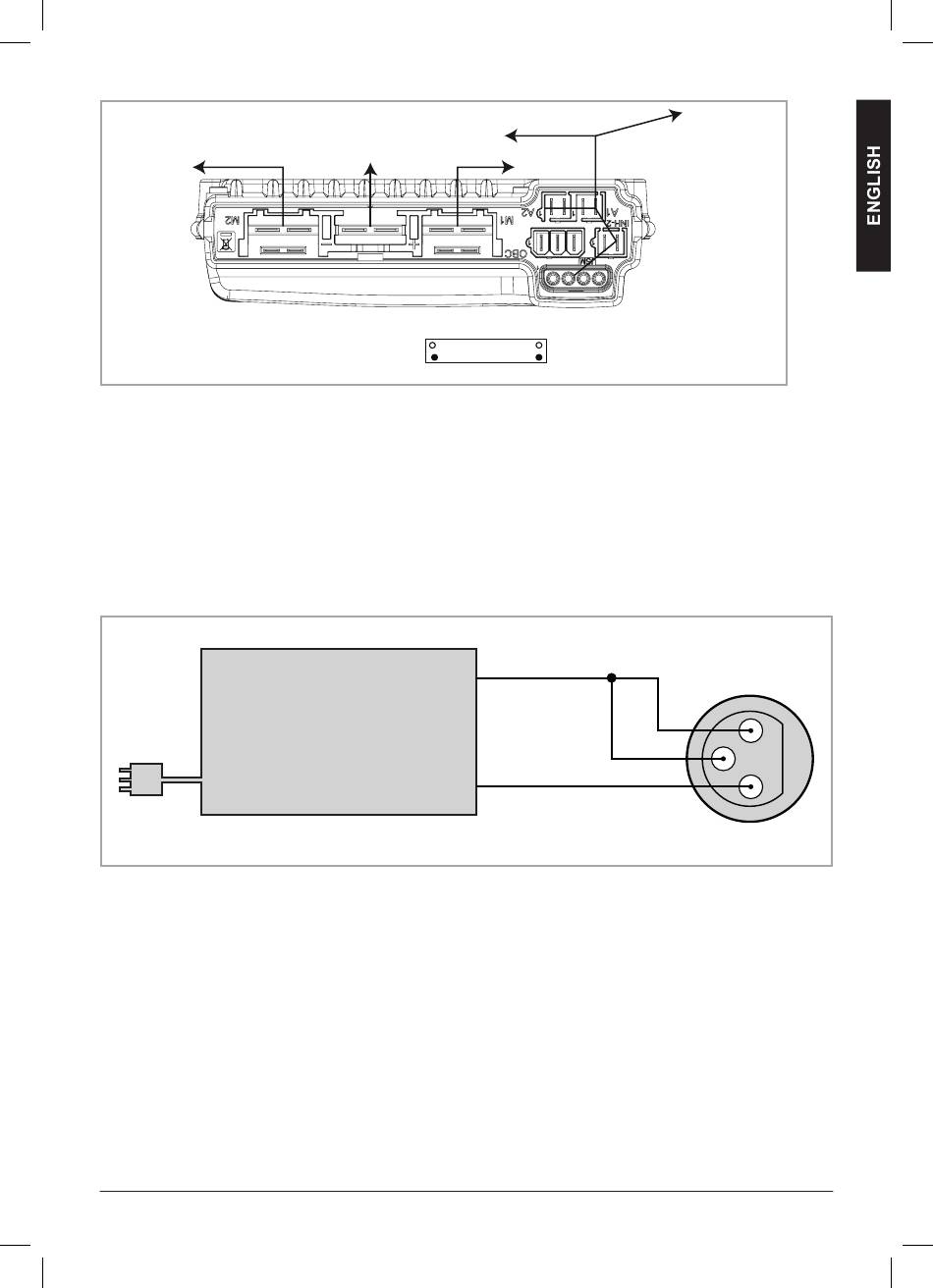

9.2 Technical diagram battery charger
The controller's standard configuration includes a '3-pin connection'. Ensure that the battery charger
is properly connected so that the 'negative pole' and the 'inhibit' are connected, enabling the system to
prevent the wheelchair from moving when the battery is being charged.
Battery charger
Figure 10
VR2 Contoller
Rev.A
seat RWD
battery
motor
mounting holes
Battery -
Battery +
seat FWD
9006377A
Inhibit
