Attach the connectors.
5

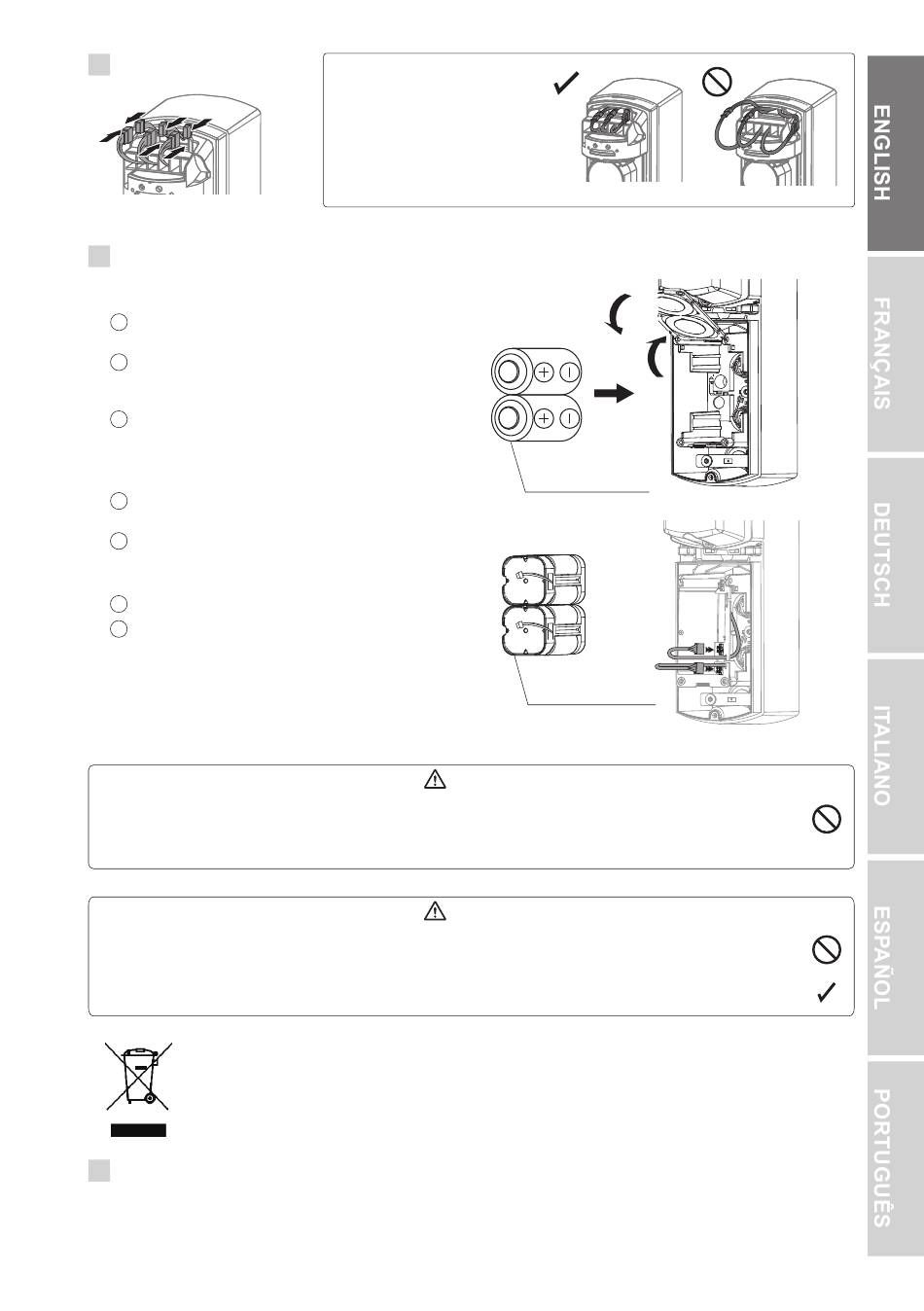

Insert batteries.
6
• Apply the same procedure for the battery replacement.
< When using D size battery >
1 Open the battery plate in the direction of the
arrow.
2
Insert the two batteries into their compartment.
Ensure the positive terminals are facing toward
the front.
3 Close the battery plate.
< When using CR123A battery >
1 Open the battery plate in the direction of the
arrow.
2 Set CR123A in the CRH-5 and insert two CRH-5
into their compartment. Ensure the positive
terminals are facing toward the front.
3 Close the battery plate.
4
Connect the CRH-5 male connectors to the
female connectors of the battery plate.
• Do not mix D size lithium batteries with CRH-5 batteries.
• Do not mix batteries that have different levels of power remaining (i.e., new and used batteries or batteries of
different manufacturers). Not observing the above may result in an explosion, leakage of electrolyte, emission
of toxic gases or other outcomes that may be harmful to people and property.
• Remove all batteries prior to replacing with new ones. If this is not followed, the low battery indicator LED will
not reset and will continue to blink.
• When returning this detector to the supplier, remove all batteries from both transmitter and receiver.
Disposal method for batteries
Dispose of used batteries in accordance with local government regulations/laws and EU Battery
Directive (2013/56/EU).
Referring to "4 SETTINGS", perform the necessary settings.
7
Note>>
• Avoid placing the cables in a
position where they can be
caught between the main unit
and cover.
Warning
Caution
EN-7
3
1
2
D size
Lithium batteries
4
CR123A
put into CRH-5
