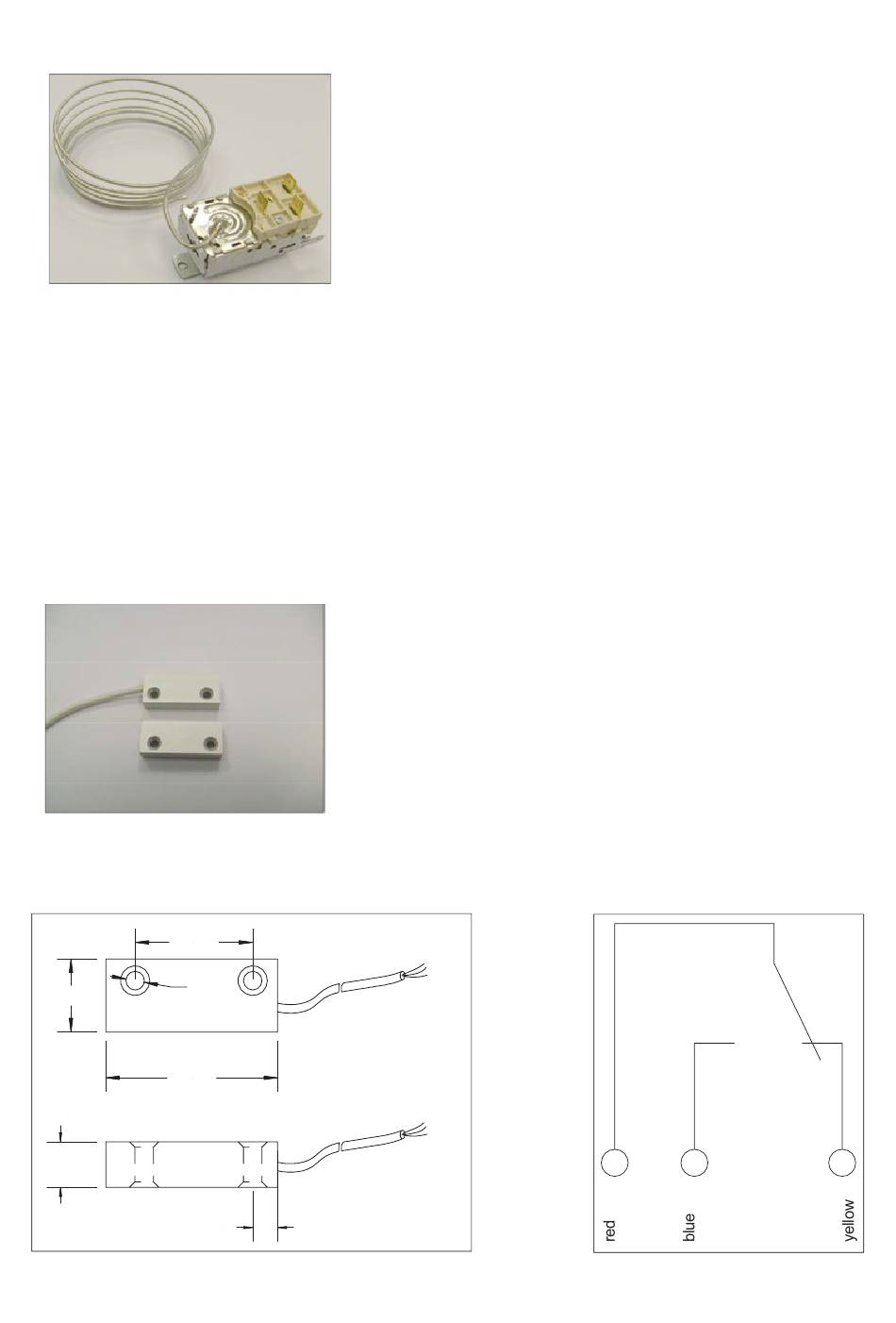

Mark EASYAIR Livret Technique page 18

Optional: Frost protection thermostat FT (0699104/0699105)
Frost protection thermostat
Connection 3 - 2 opens at a rising temperature
Connection 3 - 4 closes when the temperature rises
Switching capacity 250 V 50 Hz
Connection 3 – 2: 6 A
Connection 3 – 4: 6 A
Optional: Door contact magnet switch TKM (0699102)
only in combination with GTC I/II or GTC E
Door contact magnet switch
26,0
ø 4,1
16,0
38,0
10,0
5,5
Dimensions
18
The frost protection thermostat deactivates the fans as
soon as a hot water heating element is at risk of free-
zing. The sensor system switches on at a temperature of
approx. 7 °C. At the same time an optional solenoid valve
is opened.
A frost protection thermostat is always required if the
temperature of the intake air can be lower than 7 °C.
Technical data:
Code number:
Sensing distance:
Class:
Cable lenght:
Connection cable:
Magnet:
Switch type:
Casing:
Color housing:
Dimensions:
LIYY 3 x 0,14 mm²
Length ca. 3 m
0699102
max. 14 mm
5 VA / 0,1 / 24 V DC
3 m
LIYY 3 x 0,14 mm²
Alinco 500
NO/NC
Aluminium
Aluminium grey
38 x 16 x 10 mm (L x W x H)
Connection diagram
