10
INSTALLATION INSTRUCTIONS

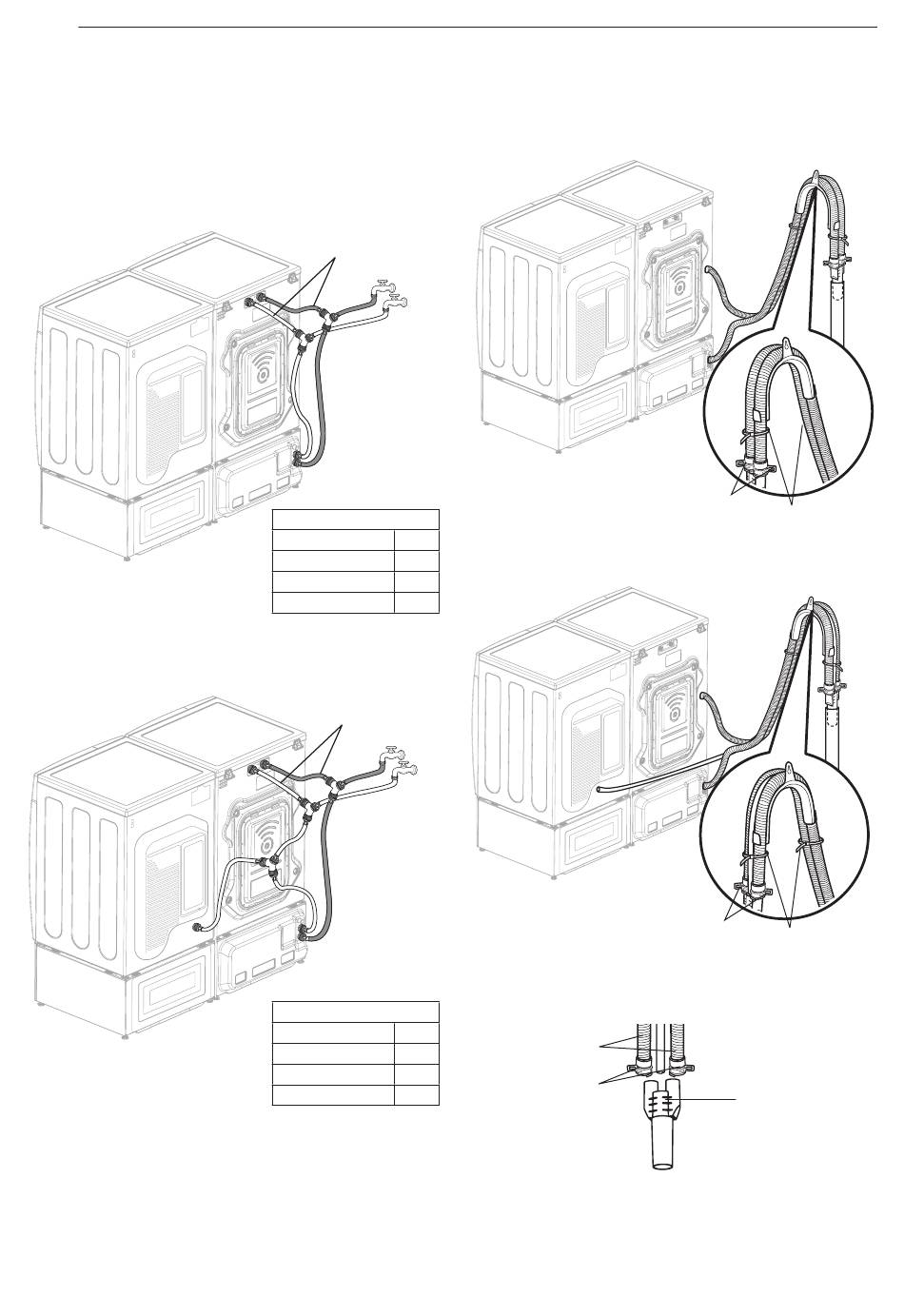

OVERVIEW OF CONNECTIONS
CONNECTING THE WATER LINES WITH
FULL-SIzE APPLIANCES
1. Front-loading washer and pedestal washer with
dryer.
2. Front-loading washer and pedestal washer with
Turbo Steam dryer
Short inlet hose
Hot
Cold
Required for water inlet
Item Qty
Y-Connector 2
Short inlet hose 2
Long inlet hose 4
long inlet hoses sold separately
Short inlet hose
Hot
Cold
Required for water inlet
Item Qty
Y-Connector 3
Short inlet hose 3
Long inlet hose 5
long inlet hoses sold separately
CONNECTING THE DRAIN HOSE WITH
FULL-SIzE WASHER
1. Front-loading washer and pedestal washer with
dryer.
2. Front-loading washer and pedestal washer with
hybrid dryer
DETAIL VIEW OF DRAIN CONNECTOR
CONNECTION
Drain hose
Band clamps
For narrow standpipes, insert hybrid dryer drain hose in
center of drain connector. DO NOT insert dryer drain hose
further than 1 inch (2.5 cm). Use tie straps to keep hoses
in place.
Band clamps
Tie Strap
Band clamps
Tie Strap
Drain
Y Connector
